Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1130-220K-RCFIXED IND 22UH 13.5A 11 MOHM TH |
145 |
|
Datasheet |
1130 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 13.5 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|

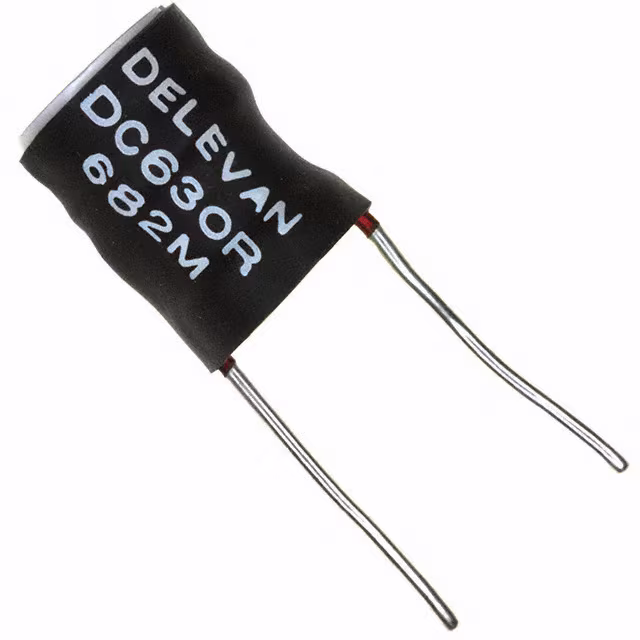

DC630R-682MFIXED IND 6.8UH 10.5A 8 MOHM TH |
1,615 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 10.5 A | 26A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
IHDF1300AEEH4R7K1AFIXED IND 4.7UH 59A 1.11MOHM TH |
120 |
|
Datasheet |
IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 59 A | 92A | Unshielded | 1.11mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
|
|
1130-561K-RCFIXED IND 560UH 4A 205 MOHM TH |
592 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 4 A | - | Unshielded | 205mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|

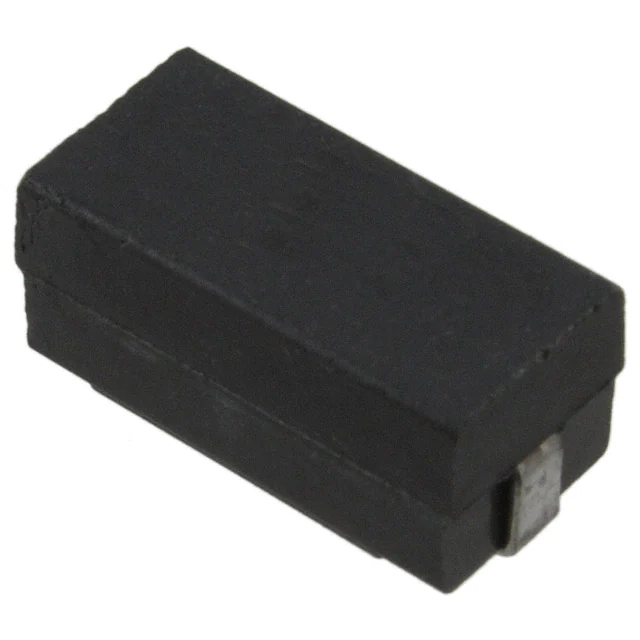

M27/367-21FIXED IND 10UH 2.36A 71 MOHM SMD |
483 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±15% | 2.36 A | 2.36A | Unshielded | 71mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
M27/367-12FIXED IND 1.8UH 4.34A 21MOHM SMD |
217 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±15% | 4.34 A | 4.34A | Unshielded | 21mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
5717-RCFIXED IND 500UH 4A 150 MOHM TH |
158 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±15% | 4 A | - | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) | - |
|

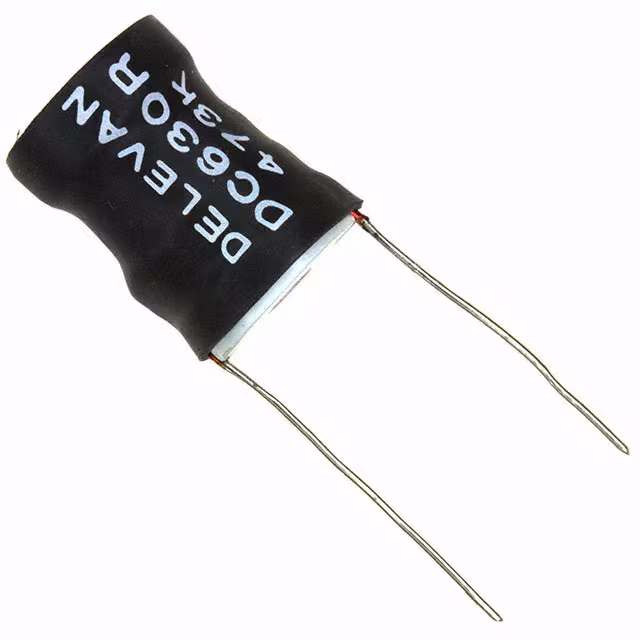

DC630R-473KFIXED IND 47UH 3.98A 62 MOHM TH |
195 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 3.98 A | 10A | Unshielded | 62mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
PQ3218-6R0-50-TFIXED IND 6UH 50A 1.5 MOHM TH |
802 |
|
Datasheet |
PQ | Nonstandard | Bulk | Active | Planar | Ferrite | 6 µH | - | 50 A | 57A | Unshielded | 1.5mOhm | - | - | - | -30°C ~ 125°C | - | - | Through Hole | - | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.728" (18.50mm) |
|

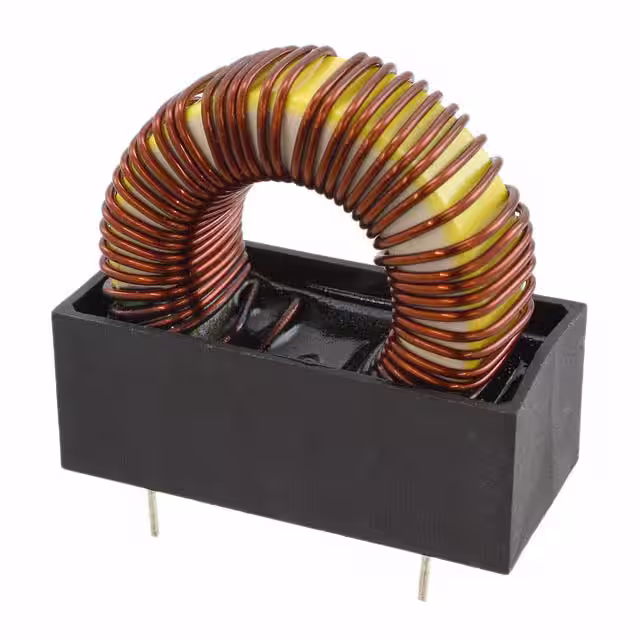

PE-51517NLFIXED IND 175UH 6A 68 MOHM TH |
205 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 175 µH | - | 6 A | - | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.950" L x 0.910" W (49.53mm x 23.11mm) | 2.000" (50.80mm) |
|

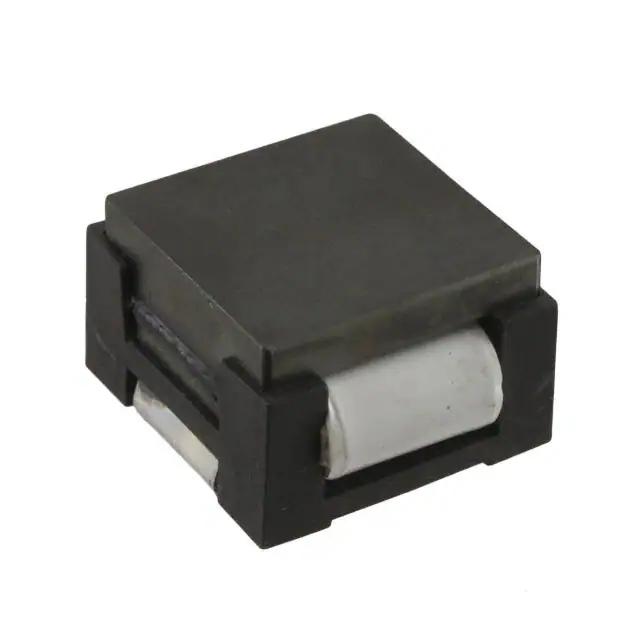

HC3-1R0-RFIXED IND 1UH 78A 0.42 MOHM SMD |
304 |
|
Datasheet |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 78 A | 78A | Unshielded | 0.42mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|
IHDM1008BCEV4R7M30FIXED IND 4.7UH 45A 0.95 MOHM TH |
541 |
|
Datasheet |
IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 62 A | 100A | Unshielded | 0.95mOhm Max | - | 35MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
CL1108-4-50TR-RFIXED IND 50NH 80A 0.00028OHM SM |
475 |
|
Datasheet |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 4 Phase | Surface Mount | - | 1.417" L x 0.433" W (36.00mm x 11.00mm) | 0.315" (8.00mm) |
|

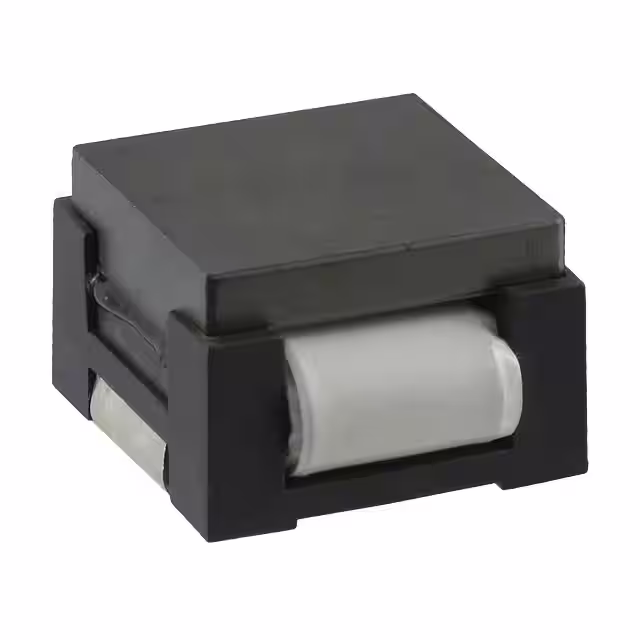

HC3-R50-RFIXED IND 500NH 78A 0.42MOHM SMD |
1,153 |
|
Datasheet |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 nH | ±20% | 78 A | 120A | Unshielded | 0.42mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.709" (18.00mm) |
|
1140-680K-RCFIXED IND 68UH 11.4A 21 MOHM TH |
422 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 11.4 A | 25.2A | Unshielded | 21mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-180K-RCFIXED IND 18UH 17.2A 8 MOHM TH |
163 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 17.2 A | 49.2A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-822K-RCFIXED IND 8.2MH 1.2A 1.95 OHM TH |
128 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 1.2 A | 2.3A | Unshielded | 1.95Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
.JPG)
|

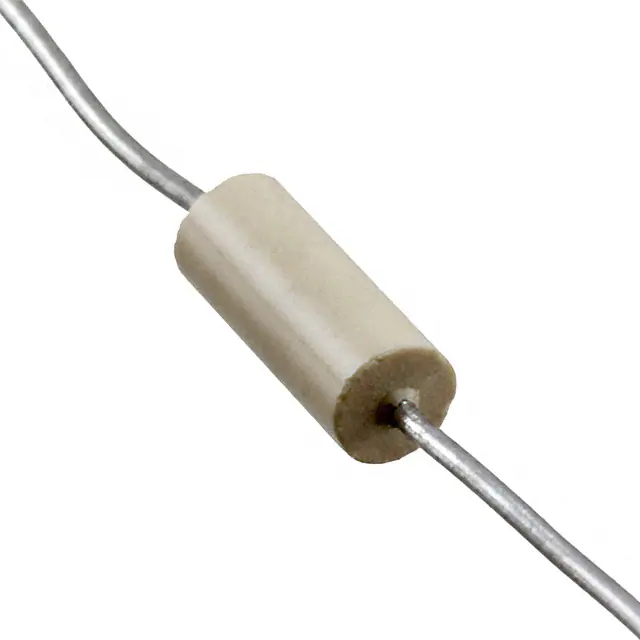

ER1025-52KRFIXED IND 22UH 140MA 3.3 OHM TH |
202 |
|
Datasheet |
Military, MIL-PRF-39010/09, ER1025 | Axial | Tape & Reel (TR) | Active | - | Iron | 22 µH | ±10% | 140 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
IHDM1008BCEV2R2M3AIHDM1008BC-3A 2.2 UH 20% EV |
919 |
|
Datasheet |
IHDM-1008BC-3A | Nonstandard | Tray | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 70 A | 110A | Unshielded | 0.4mOhm Max | - | 45MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
|
5721-RCFIXED IND 250UH 8A 41 MOHM TH |
224 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±15% | 8 A | - | Unshielded | 41mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | - |
