Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0604-331KLFIXED IND 330UH 270MA 2.25OHM SM |
4,716 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 270 mA | 360mA | Unshielded | 2.25Ohm Max | 25 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
SDR0302-1R5MLFIXED IND 1.5UH 1.9A 70 MOHM SMD |
4,485 |
|
Datasheet |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.9 A | 2.3A | Unshielded | 70mOhm Max | 23 @ 7.96MHz | 95MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
|
SDR0302-1R8MLFIXED IND 1.8UH 1.8A 80 MOHM SMD |
4,197 |
|
Datasheet |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 1.8 A | 2A | Unshielded | 80mOhm Max | 23 @ 7.96MHz | 85MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
SDR0403-821KLFIXED IND 820UH 100MA 12 OHM SMD |
4,144 |
|
Datasheet |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 100 mA | 150mA | Unshielded | 12Ohm Max | 38 @ 796kHz | 2.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
SDR0403-8R2MLFIXED IND 8.2UH 1.26A 130MOHM SM |
4,063 |
|
Datasheet |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.26 A | 1.9A | Unshielded | 130mOhm Max | 28 @ 7.96MHz | 36MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
SDR0403-221KLFIXED IND 220UH 220MA 4.4OHM SMD |
3,922 |
|
Datasheet |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 220 mA | 330mA | Unshielded | 4.4Ohm Max | 50 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

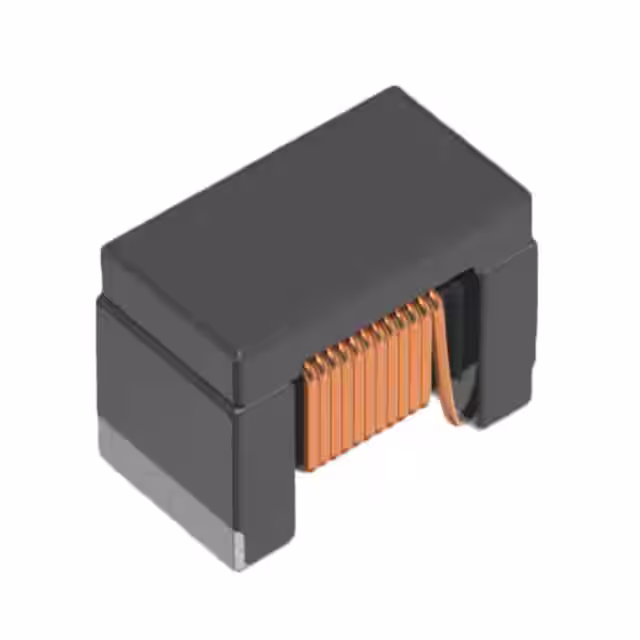

ADL2012S-1R2M-T01INDUCTORS FOR DECOUPLING CIRCUIT |
3,864 |
|
Datasheet |
ADL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 550 mA | - | Unshielded | 500mOhm Max | - | 500MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.087" L x 0.049" W (2.20mm x 1.25mm) | 0.069" (1.75mm) |
|
|
SDR0403-681KLFIXED IND 680UH 110MA 8.6OHM SMD |
3,755 |
|
Datasheet |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 110 mA | 160mA | Unshielded | 8.6Ohm Max | 40 @ 796kHz | 2.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
SDR0403-471KLFIXED IND 470UH 130MA 7 OHM SMD |
3,664 |
|
Datasheet |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 130 mA | 190mA | Unshielded | 7Ohm Max | 50 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
SDR0302-220MLFIXED IND 22UH 520MA 660MOHM SMD |
3,423 |
|
Datasheet |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 520 mA | 650mA | Unshielded | 660mOhm Max | 23 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
ASPI-0504-102M-TFIXED IND 1MH 150MA 14.4 OHM SMD |
3,343 |
|
Datasheet |
ASPI-0504 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 150 mA | - | Unshielded | 14.4Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
SDR0403-470KLFIXED IND 47UH 540MA 840MOHM SMD |
3,267 |
|
Datasheet |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 540 mA | 780mA | Unshielded | 840mOhm Max | 20 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
SDR0302-3R3MLFIXED IND 3.3UH 1.4A 110MOHM SMD |
3,120 |
|
Datasheet |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.4 A | 1.6A | Unshielded | 110mOhm Max | 23 @ 7.96MHz | 68MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
|
SDR0302-471KLFIXED IND 470UH 105MA 14.3OHM SM |
3,100 |
|
Datasheet |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 105 mA | 130mA | Unshielded | 14.3Ohm Max | 42 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
|
SDR0604-1R2MLFIXED IND 1.2UH 4.2A 20 MOHM SMD |
3,100 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 4.2 A | 7.3A | Unshielded | 20mOhm Max | 35 @ 7.96MHz | 155MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
SDR0403-102KLFIXED IND 1MH 90MA 14 OHM SMD |
2,908 |
|
Datasheet |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 90 mA | 130mA | Unshielded | 14Ohm Max | 38 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
74404020033FIXED IND 3.3UH 870MA 279MOHM SM |
2,703 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 870 mA | 1.1A | Shielded | 279mOhm | - | 78MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
AIAC-1512C-8N0K-TFIXED IND 8NH 4.5A 2.3 MOHM SMD |
2,614 |
|
Datasheet |
AIAC-1512C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8 nH | ±10% | 4.5 A | - | Unshielded | 2.3mOhm Max | 140 @ 150MHz | 3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.110" (2.80mm) |
|
|
SDR0604-3R9MLFIXED IND 3.9UH 1.9A 70 MOHM SMD |
2,392 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 1.9 A | 3.2A | Unshielded | 70mOhm Max | 22 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
744040200068FIXED IND 680NH 1.8A 63MOHM SMD |
2,357 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 1.8 A | 4.48A | Shielded | 63mOhm | - | 196MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
