Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPL-SE4030-4R7FIXED IND 4.7UH 2.6A 63 MOHM SMD |
1,524 |
|
Datasheet |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 4.7 µH | - | 2.6 A | 3.7A | Shielded | 63mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
.jpg)
|
LPWI252010H2R2TFIXED IND 2.2UH 2.5A 97 MOHM SMD |
1,492 |
|
Datasheet |
LPWI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 2.2 µH | ±20% | 2.5 A | 3.1A | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SRN5040TA-150MFIXED IND 15UH 1.8A 80 MOHM SMD |
1,215 |
|
Datasheet |
SRN5040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 2A | Shielded | 80mOhm | 15 @ 100kHz | 22MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
SRN5040TA-3R3MFIXED IND 3.3UH 3.5A 24 MOHM SMD |
1,175 |
|
Datasheet |
SRN5040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.5 A | 4.4A | Shielded | 24mOhm | 15 @ 100kHz | 48MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
B82144A2472K000FIXED IND 4.7UH 1.6A 160 MOHM TH |
10,284 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 1.6 A | - | Unshielded | 160mOhm Max | 40 @ 7.96MHz | 100MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
1235AS-H-220M=P3FIXED IND 22UH 1A 306 MOHM SMD |
5,997 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 910mA | Shielded | 306mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.071" (1.80mm) |
|
VLCF5020T-101MR27FIXED IND 100UH 270MA 1.581 OHM |
5,181 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 270 mA | 270mA | Shielded | 1.581Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
LQW03AW2N7C00DFIXED IND 2.7NH 720MA 60MOHM SMD |
4,572 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.7 nH | ±0.2nH | 720 mA | - | Unshielded | 60mOhm Max | 46 @ 900MHz | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
B82144A2223K000FIXED IND 22UH 1.1A 350 MOHM TH |
3,910 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.1 A | - | Unshielded | 350mOhm Max | 50 @ 2.52MHz | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|

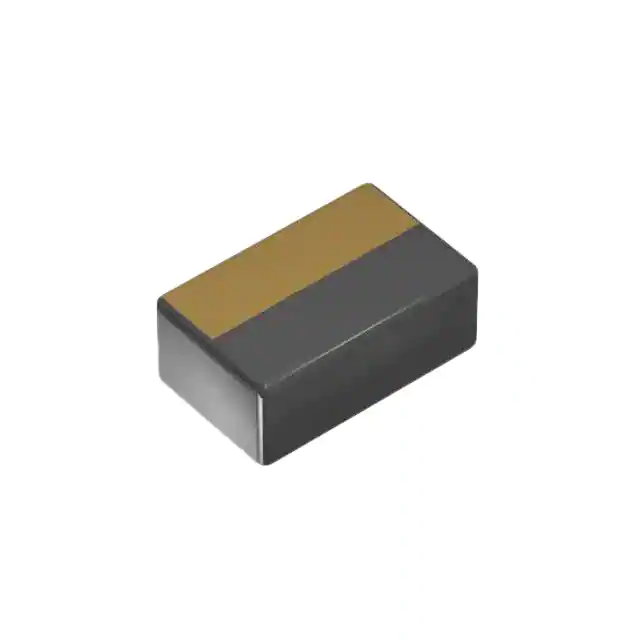

TFM201208BLD-R33MTCAINDUCTORS FOR POWER CIRCUITS, TH |
3,570 |
|
Datasheet |
TFM-BLD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 330 nH | ±20% | 4 A | 5A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.031" (0.80mm) |
|
LCXND6060MKT680MMGFIXED IND 68UH 410MA 1.392OHM SM |
2,000 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 410 mA | 440mA | Unshielded | 1.16Ohm | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
LQW18CAR21J00DFIXED IND 210NH 1.05A 115MOHM SM |
1,564 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 210 nH | ±5% | 1.05 A | - | Unshielded | 115mOhm Max | - | 1.15GHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
CDRH2D11/HPNP-4R7NCFIXED IND 4.7UH 850MA 238MOHM SM |
1,453 |
|
Datasheet |
CDRH2D11/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 850 mA | 750mA | Shielded | 238mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|
|
LQW03AW3N5C00DFIXED IND 3.5NH 440MA 150MOHM SM |
1,025 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.5 nH | ±0.2nH | 440 mA | - | Unshielded | 150mOhm Max | 43 @ 900MHz | 12GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
SRP2512A-R68MFIXED IND 680NH 3.7A 35 MOHM SMD |
11,652 |
|
Datasheet |
SRP2512A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 3.7 A | 5A | Shielded | 35mOhm Max | 39 @ 1MHz | 104MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
SRP2512A-1R5MFIXED IND 1.5UH 2.5A 77 MOHM SMD |
10,745 |
|
Datasheet |
SRP2512A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 2.5 A | 3.2A | Shielded | 77mOhm Max | 39 @ 1MHz | 71MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
L04021R5BHNTRFIXED IND 1.5NH 400MA 200MOHM SM |
10,318 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.5 nH | ±0.1nH | 400 mA | - | Unshielded | 200mOhm Max | 20 @ 450MHz | 18GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
LQW15CNR27J10DFIXED IND 270NH 420MA 0.52OHM SM |
9,687 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±5% | 420 mA | - | Unshielded | 520mOhm Max | - | 830MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
TMS252012ALM-1R5MTAAFIXED IND 1.5UH 3.1A 60 MOHM SMD |
6,087 |
|
Datasheet |
TMS-ALM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 3.1 A | 3.3A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
L0402R82BHNTRFIXED IND 0.82NH 500MA 60MOHM SM |
4,636 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 0.82 nH | ±0.1nH | 500 mA | - | Unshielded | 60mOhm Max | 25 @ 450MHz | 20GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
