Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGAH06031R5M-100603 INDUCTOR 1.5UH 9A |
4,364 |
|
Datasheet |
MGAH0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 9 A | 14A | Shielded | 12.1mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.122" (3.10mm) |
|
B82498F3271J001FIXED IND 270NH 270MA 1 OHM SMD |
4,030 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 270 mA | - | Unshielded | 1Ohm Max | 45 @ 250MHz | 900MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
.jpg)
|
B82422H1474J000FIXED IND 470UH 76MA 20 OHM SMD |
3,699 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 76 mA | - | Unshielded | 20Ohm Max | 20 @ 796kHz | 3.5MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
SDR0603-1R5MLFIXED IND 1.5UH 3A 40 MOHM SMD |
3,610 |
|
Datasheet |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3 A | 3.5A | Unshielded | 40mOhm Max | 24 @ 7.96MHz | 85MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|
|
B82422H1684J000FIXED IND 680UH 61MA 31 OHM SMD |
2,980 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 61 mA | - | Unshielded | 31Ohm Max | 20 @ 796kHz | 3MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
AISC-0603F-6R8J-TFIXED IND 6.8UH 130MA 4 OHM SMD |
2,702 |
|
Datasheet |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 130 mA | - | Unshielded | 4Ohm Max | - | 40MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
|
SDR0603-101KLFIXED IND 100UH 380MA 950MOHM SM |
2,688 |
|
Datasheet |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 380 mA | 660mA | Unshielded | 950mOhm Max | 28 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|

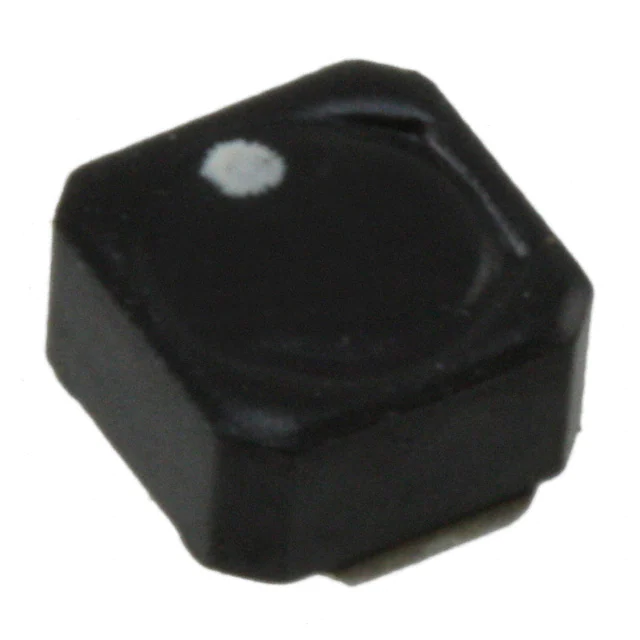

VLCF4024T-220MR65-2FIXED IND 22UH 650MA 332MOHM SMD |
1,928 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 650 mA | 650mA | Shielded | 332mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.094" (2.40mm) |
|
|
MGAH0603R22M-100603 INDUCTOR 0.22UH 21A |
1,809 |
|
Datasheet |
MGAH0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 220 nH | ±20% | 21 A | 34A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.122" (3.10mm) |
|
|
SDR0603-820KLFIXED IND 82UH 400MA 840MOHM SMD |
1,432 |
|
Datasheet |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 400 mA | 480mA | Unshielded | 840mOhm Max | 15 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|
LQW15CNR27J1ZDFIXED IND 270NH 420MA 0.52OHM SM |
1,264 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±5% | 420 mA | - | Unshielded | 520mOhm Max | - | 830MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
CDRH6D28NP-120NCFIXED IND 12UH 1.55A 70 MOHM SMD |
10,249 |
|
Datasheet |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±30% | 1.55 A | - | Shielded | 70mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
TFM201210ALMAR33MTAAINDUCTORS FOR POWER CIRCUITS, AU |
5,585 |
|
Datasheet |
TFM-ALMA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 330 nH | ±20% | 3.6 A | 3.9A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
B82498F3271J000FIXED IND 270NH 270MA 1 OHM SMD |
4,554 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 270 mA | - | Unshielded | 1Ohm Max | 45 @ 250MHz | 900MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82422H1334J000FIXED IND 330UH 90MA 13 OHM SMD |
4,000 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 90 mA | - | Unshielded | 13Ohm Max | 20 @ 796kHz | 4.5MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
VLCF4018T-220MR49-2FIXED IND 22UH 490MA 369MOHM SMD |
3,288 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 490 mA | 490mA | Shielded | 369mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
TFM201210ALMAR24MTAAINDUCTORS FOR POWER CIRCUITS, AU |
3,202 |
|
Datasheet |
TFM-ALMA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 240 nH | ±20% | 4.2 A | 4.6A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
NS10145T3R3NNAFIXED IND 3.3UH 6.1A 12 MOHM SMD |
3,065 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 6.1 A | 7.33A | Shielded | 12mOhm Max | - | 36.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
BPSD00080750100K00FIXED IND 10UH 70 MOHM SMD |
2,490 |
|
Datasheet |
BPSD | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±10% | - | 2.3A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
SLF6025T-150MR88-PFFIXED IND 15UH 1.1A 102 MOHM SMD |
2,030 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.1 A | 880mA | Shielded | 102mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.106" (2.70mm) |
