Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422A1822J100FIXED IND 8.2UH 130MA 3 OHM SMD |
2,783 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 130 mA | - | Unshielded | 3Ohm Max | 27 @ 7.96MHz | 90MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
-Height-1.00mm.jpg)
|
DFE201612PD-R68M=P2FIXED IND 680NH 2.5A 46MOHM SMD |
2,762 |
|
Datasheet |
DFE201612P | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 2.5 A | 3.1A | Shielded | 46mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
NRS6020T220MMGGVFIXED IND 22UH 950MA 348MOHM SMD |
2,577 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 950 mA | 1.25A | Shielded | 348mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
DFE252012PD-1R5M=P2FIXED IND 1.5UH 2.6A 0.06OHM SMD |
2,093 |
|
Datasheet |
DFE252012PD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 2.6 A | 3.3A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SRP2510A-R33MFIXED IND 330NH 4.4A 26 MOHM SMD |
1,755 |
|
Datasheet |
SRP2510A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±20% | 4.4 A | 6.6A | Shielded | 26mOhm Max | 35 @ 1MHz | 170MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SWPA5040S220MTFIXED IND 22UH 1.5A 168MOHM SMD |
1,500 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.5 A | 1.9A | Shielded | 168mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
46682CFIXED IND 6.8UH 3.1A 52 MOHM SMD |
1,468 |
|
Datasheet |
4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±30% | 3.1 A | - | Shielded | 52mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
|
VLCF4018T-470MR34-2FIXED IND 47UH 340MA 760MOHM SMD |
1,217 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 340 mA | 340mA | Shielded | 760mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
23S100CFIXED IND 10UH 1.18A 87MOHM SMD |
1,209 |
|
Datasheet |
2300 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | - | 1.18 A | - | Shielded | 87mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.126" (3.20mm) |
|
|
46333CFIXED IND 33UH 1.45A 190MOHM SMD |
1,140 |
|
Datasheet |
4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.45 A | - | Shielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
|
LQW15CAR64J00DFIXED IND 640NH 240MA 1.4OHM SMD |
1,042 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 640 nH | ±5% | 240 mA | - | Unshielded | 1.4Ohm Max | - | 870MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | 0.026" (0.66mm) |
|
IFSC1111ABER2R2M01FIXED IND 2.2UH 1.9A 98 MOHM SMD |
13,335 |
|
Datasheet |
IFSC-1111AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.9 A | 1.7A | Shielded | 98mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.114" L x 0.114" W (2.90mm x 2.90mm) | 0.051" (1.30mm) |
|
MPL-SE4030-2R2FIXED IND 2.2UH 3.9A 30 MOHM SMD |
8,934 |
|
Datasheet |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 2.2 µH | - | 3.9 A | 5.5A | Shielded | 30mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|

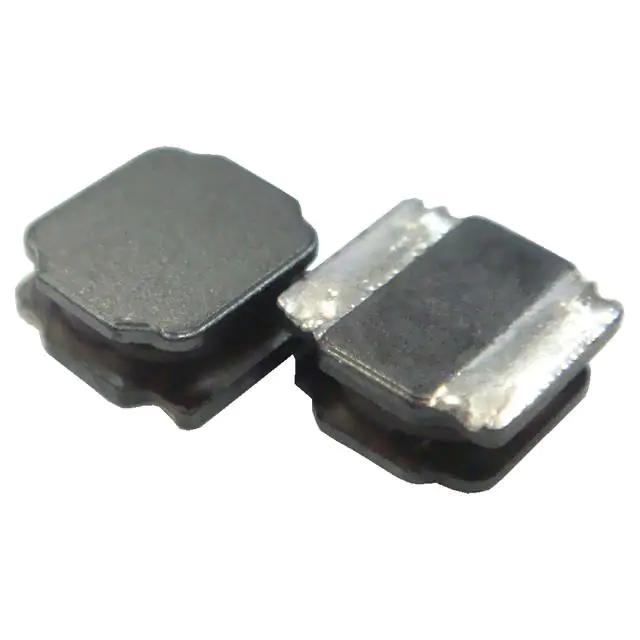

AWVS00606028220M00FIXED IND 22UH 1.5A 135 MOHM SMD |
7,946 |
|
Datasheet |
AWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.5 A | 1.6A | Shielded | 135mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
NRS6045T680MMGKVFIXED IND 68UH 950MA 395.2 MOHM |
6,273 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 950 mA | 1.1A | Shielded | 395.2mOhm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
NRS6045T2R3NMGKVFIXED IND 2.3UH 3.6A 28.6MOHM SM |
4,185 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.3 µH | ±30% | 3.6 A | 6.4A | Shielded | 28.6mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
.jpg)
|
LQW2UASR47F0CLFIXED IND 470NH 470MA 1.19OHM SM |
3,950 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 470 nH | ±1% | 470 mA | - | Unshielded | 1.19Ohm Max | 45 @ 100MHz | 450MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
SBC1-100-172FIXED IND 10UH 1.7A 80 MOHM TH |
3,918 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.7 A | 1.5A | Unshielded | 80mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.335" (8.50mm) |
|
IFSC1515AHERR56M01FIXED IND 560NH 5.4A 22 MOHM SMD |
3,890 |
|
Datasheet |
IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 nH | ±20% | 5.4 A | 5.5A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
|
MPL-SE4030-150FIXED IND 15UH 1.6A 185 MOHM SMD |
3,386 |
|
Datasheet |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 15 µH | - | 1.6 A | 1.95A | Shielded | 185mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
