Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LPWI201608S2R2TFIXED IND 2.2UH 1.9A 150MOHM SMD |
7,816 |
|
Datasheet |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 2.2 µH | ±20% | 1.9 A | 1.6A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
LQW18CNR10K0ZDFIXED IND 100NH 1A 100 MOHM SMD |
7,796 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 1 A | - | Unshielded | 100mOhm Max | - | 1.26GHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
ASPIAIG-S6055-151M-TFIXED IND 150UH 900MA 686MOHM SM |
6,693 |
|
Datasheet |
ASPIAIG-S6055 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 150 µH | ±20% | 900 mA | 900mA | Shielded | 686mOhm | - | 4.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.224" (5.70mm) |
|
AISC-1210HS-2R2K-T2FIXED IND 2.2UH 800MA 500MOHM SM |
5,155 |
|
Datasheet |
AISC-1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 800 mA | 850mA | Unshielded | 500mOhm Max | 10 @ 1MHz | 150MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.051" (1.30mm) |
|
AWVS00505020220M00FIXED IND 22UH 1A 260 MOHM SMD |
4,990 |
|
Datasheet |
AWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1 A | 1A | Shielded | 260mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
LQW18CNR21J0ZDFIXED IND 210NH 800MA 150MOHM SM |
4,102 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 210 nH | ±5% | 800 mA | - | Unshielded | 150mOhm Max | - | 720MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
SRP2510A-R68MFIXED IND 680NH 3.4A 44 MOHM SMD |
4,052 |
|
Datasheet |
SRP2510A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 3.4 A | 4.3A | Shielded | 44mOhm Max | 35 @ 1MHz | 120MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
VLCF4018T-1R6N1R7-2FIXED IND 1.6UH 1.72A 51MOHM SMD |
3,862 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.6 µH | ±30% | 1.72 A | 1.72A | Shielded | 51mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRP2510A-R47MFIXED IND 470NH 3.9A 32 MOHM SMD |
3,311 |
|
Datasheet |
SRP2510A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 3.9 A | 5A | Shielded | 32mOhm Max | 35 @ 1MHz | 138MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQW18CNR16J0ZDFIXED IND 160NH 1A 100 MOHM SMD |
2,476 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 160 nH | ±5% | 1 A | - | Unshielded | 100mOhm Max | - | 900MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
VLS3012ET-2R2M-CAFIXED IND 2.2UH 1.7A 96 MOHM SMD |
2,000 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.7 A | 1.35A | Shielded | 96mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
VLS3015ET-6R8M-CAFIXED IND 6.8UH 1.05A 216MOHM SM |
2,000 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.05 A | 920mA | Shielded | 216mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS3015ET-330M-CAFIXED IND 33UH 510MA 984MOHM SMD |
2,000 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 510 mA | 390mA | Shielded | 984mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LPWI201608S1R0TFIXED IND 1UH 3A 65 MOHM SMD |
1,839 |
|
Datasheet |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 3 A | 2.9A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
|
ASPIAIG-S6055-221M-TFIXED IND 220UH 700MA 1.036 OHM |
1,524 |
|
Datasheet |
ASPIAIG-S6055 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 220 µH | ±20% | 700 mA | 700mA | Shielded | 1.036Ohm | - | 3.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.224" (5.70mm) |
|
SWPA5040S150MTFIXED IND 15UH 2A 112 MOHM SMD |
1,495 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2 A | 2.3A | Shielded | 112mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|

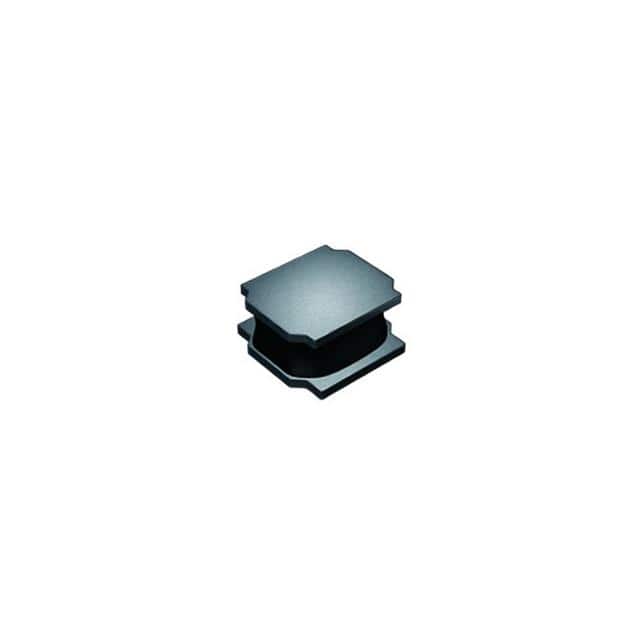

LSXBH8080YKL220MFIXED IND 22UH 2.2A 85.8MOHM SMD |
1,331 |
|
Datasheet |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | 2.2A | Shielded | 66mOhm | - | 13MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
LQW18CNR47J0ZDFIXED IND 470NH 500MA 450MOHM SM |
1,254 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 500 mA | - | Unshielded | 450mOhm Max | - | 555MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
RLB1014-472KLFIXED IND 4.7MH 190MA 14 OHM TH |
1,194 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 190 mA | 195mA | Unshielded | 14Ohm Max | 45 @ 252kHz | 380kHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.472" (12.00mm) |
|
RLB1014-332KLFIXED IND 3.3MH 220MA 10.5OHM TH |
1,004 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 220 mA | 230mA | Unshielded | 10.5Ohm Max | 50 @ 252kHz | 450kHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
