Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1245CC-3R3MIND SMD 3.3UH 20A |
240 |
|
Datasheet |
SRP1245CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 20 A | 32A | Shielded | 8.4mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SRP1245CC-6R8MIND SMD 6.8UH 12A |
180 |
|
Datasheet |
SRP1245CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 12 A | 23A | Shielded | 16.7mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
DRC-1010-330K-ULRADIAL INDUCTOR WITH LEADS, 33.0 |
155 |
|
Datasheet |
DRC-1010 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 2.3 A | 2.8A | Unshielded | 62mOhm Max | 30 @ 2.52MHz | 7MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.512" (13.00mm) |
|

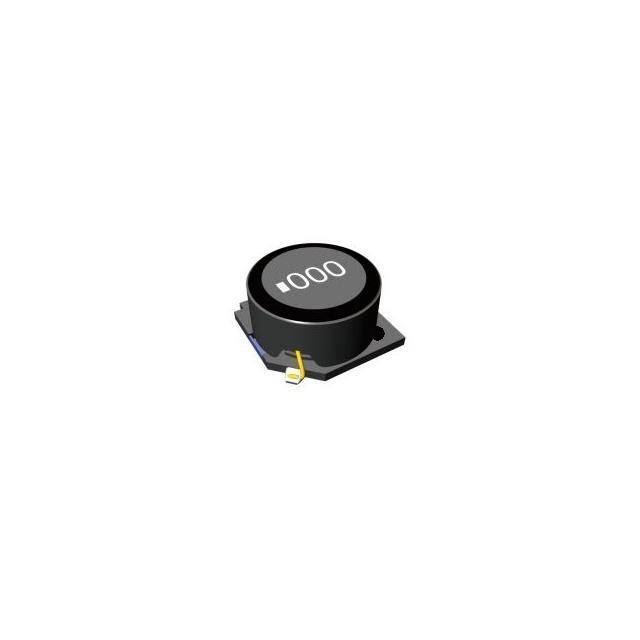

LCRNJ12575GL470MNFIXED IND 47UH 2.95A 61.8MOHM SM |
3,475 |
|
Datasheet |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 2.95 A | 3.6A | Shielded | 51.5mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
RL-5480HC-2-1000FIXED IND 1000UH .380A 2.67OHM T |
1,500 |
|
Datasheet |
RL-5480HC-2 | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | - | 1 mH | ±10% | 380 mA | 380mA | Unshielded | 2.67Ohm Max | - | 1.5MHz | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 0.311" Dia (7.90mm) | 0.366" (9.30mm) |
|
|
LD2-120-RFIXED IND 12UH 3.57A 80 MOHM SMD |
988 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 3.57 A | 3.2A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
SRP1245CC-2R2MIND SMD 2.2UH 25A |
489 |
|
Datasheet |
SRP1245CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 25 A | 40A | Shielded | 5mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SRP0612F-100MFIXED IND 10UH 2.7A 157 MOHM SMD |
3,000 |
|
Datasheet |
SRP0612F | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 2.8 A | 4A | Shielded | 180mOhm Max | 15 @ 100kHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.047" (1.20mm) |
|
|
SRP0612F-1R5MFIXED IND 1.5UH 6A 32.8 MOHM SMD |
3,000 |
|
Datasheet |
SRP0612F | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 6.1 A | 9A | Shielded | 32.8mOhm Max | 10 @ 100kHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.047" (1.20mm) |
|
|
SRP0612F-1R0MFIXED IND 1UH 6.2A 27.5 MOHM SMD |
3,000 |
|
Datasheet |
SRP0612F | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 6.5 A | 12A | Shielded | 26.5mOhm Max | 10 @ 100kHz | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.047" (1.20mm) |
|
|
SRP0612F-3R3MFIXED IND 3.3UH 5A 50 MOHM SMD |
3,000 |
|
Datasheet |
SRP0612F | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 5 A | 7.5A | Shielded | 60mOhm Max | 15 @ 100kHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.047" (1.20mm) |
|
|
SRP0612F-4R7MFIXED IND 4.7UH 3.9A 82 MOHM SMD |
3,000 |
|
Datasheet |
SRP0612F | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 4.2 A | 6.3A | Shielded | 82mOhm Max | 15 @ 100kHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.047" (1.20mm) |
|
|
RL-5480HC-2-220FIXED IND 220UH .830A 650MOHM TH |
1,490 |
|
Datasheet |
RL-5480HC-2 | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | - | 220 µH | ±10% | 830 mA | 970mA | Unshielded | 650mOhm Max | - | 3.1MHz | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 0.311" Dia (7.90mm) | 0.366" (9.30mm) |
|
|
RL-5480HC-2-2200FIXED IND 2200UH .250A 6.13OHM T |
1,480 |
|
Datasheet |
RL-5480HC-2 | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | - | 2.2 mH | ±10% | 250 mA | 280mA | Unshielded | 6.13Ohm Max | - | 1MHz | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 0.311" Dia (7.90mm) | 0.366" (9.30mm) |
|
1812-102JFIXED IND 1UH 634MA 500 MOHM SMD |
500 |
|
Datasheet |
1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±5% | 634 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
MGV10041R0M-10FIXED IND 1UH 17.5A 4.1 MOHM SMD |
4,980 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 17.5 A | 36A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.169" (4.30mm) |
|
|
MGV10046R8M-10FIXED IND 6.8UH 8A 23.3 MOHM SMD |
2,833 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 8 A | 13.5A | Shielded | 23.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.169" (4.30mm) |
|
|
MGV10045R6M-10FIXED IND 5.6UH 8.5A 19.3MOHM SM |
2,401 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 8.5 A | 16A | Shielded | 19.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.169" (4.30mm) |
|
|
MGV1004470M-10FIXED IND 47UH 3A 167 MOHM SMD |
1,951 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3 A | 4.5A | Shielded | 167mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.173" (4.40mm) |
|
78477610FIXED IND 10UH 2.98A 60 MOHM SMD |
1,392 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.98 A | 3.24A | Unshielded | 60mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
