Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74451233WE-PD3 SMT SHIELDED POWER INDUCT |
483 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 200 mA | 20mA | Shielded | 1.4Ohm Max | - | 3.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
74458233WE-PD4 SMT POWER INDUCTOR SIZE T |
368 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 1 A | 1.9A | Unshielded | 560mOhm Max | - | 2.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.280" (7.10mm) |
|
|
74459233WE-PD3 SMT SHIELDED POWER INDUCT |
260 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 900 mA | 1.1A | Shielded | 780mOhm Max | - | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
PG0087.102NLTFIXED IND 1UH 3.5A 33 MOHM SMD |
1,440 |
|
Datasheet |
PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 3.5 A | 3.5A | Shielded | 33mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
|
PG0087.105NLTFIXED IND 1MH 60MA 12.57 OHM SMD |
1,243 |
|
Datasheet |
PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 60 mA | 60mA | Shielded | 12.57Ohm Max | - | 2.7MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
|
IHSR4040DZERR13M51FIXED IND 130NH 72A 0.52MOHM SMD |
989 |
|
Datasheet |
IHSR-4040DZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | - | 130 nH | ±20% | 72 A | 63A | Shielded | 0.52mOhm | - | 151MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.445" L x 0.406" W (11.30mm x 10.30mm) | 0.157" (4.00mm) |
|
LAYPH10060DL101MGAFIXED IND 100UH 1.4A 203MOHM SMD |
688 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 930 mA | 1.4A | Shielded | 169mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
IHLP4040EDER750M5AFIXED IND 75UH 2.74A 214.2 MOHM |
620 |
|
Datasheet |
IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 75 µH | ±20% | 2.74 A | 3.51A | Shielded | 214.2mOhm Max | - | 3.53MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
|
VCMT104T-1R0MN54MIND SMD 1.0UH AUTO GRADE CHOKE |
480 |
|
Datasheet |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 21.3 A | 17.5A | Unshielded | 3.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
VCMT104T-4R7MN53MIND SMD 4.7UH AUTO GRADE CHOKE |
285 |
|
Datasheet |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 8.8 A | 9.4A | Unshielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
AMPLA7050Q-100MTFIXED IND 10UH 4A 69 MOHM SMD |
795 |
|
Datasheet |
AMPLA7050Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 4 A | 7.5A | Shielded | 69mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
784777331WE-PDA SMT POWER INDUCTOR |
671 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 330 µH | ±20% | 400 mA | 450mA | Shielded | 1.872Ohm Max | - | 4.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.169" (4.30mm) |
|
S1210-561KFIXED IND 560NH 619MA 500MOHM SM |
500 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 560 nH | ±10% | 619 mA | - | Shielded | 500mOhm Max | 40 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210-223KFIXED IND 22UH 232MA 3 OHM SMD |
500 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 232 mA | - | Shielded | 3Ohm Max | 40 @ 2.5MHz | 19MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|

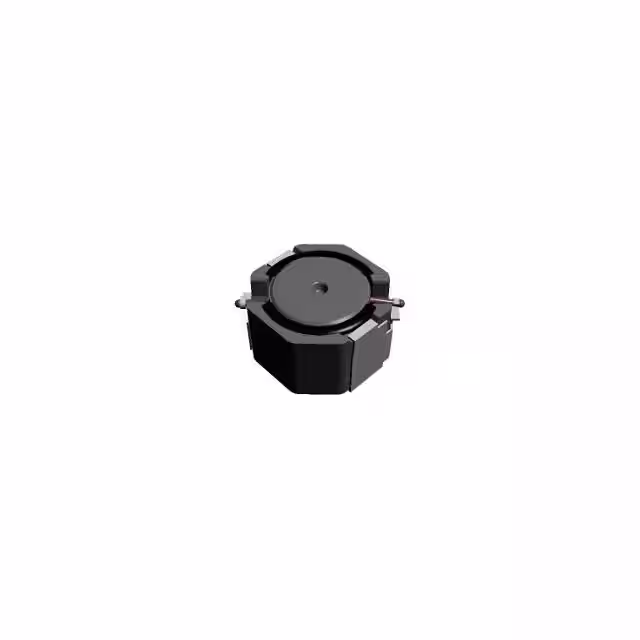

LAYPH10060DL680MGAFIXED IND 68UH 1.7A 121MOHM SMD |
485 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 1.3 A | 1.7A | Shielded | 101mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
SRP1245A-R50MFIXED IND 500NH 37A 1.3 MOHM SMD |
435 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 500 nH | ±20% | 37 A | 60A | Shielded | 1.3mOhm Max | 20 @ 100kHz | 65MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
SRP1250-R82MFIXED IND 820NH 31A 2.3 MOHM SMD |
428 |
|
Datasheet |
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 820 nH | ±20% | 31 A | 53A | Shielded | 2.3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
|
SRP1245A-R56MFIXED IND 560NH 36A 1.5 MOHM SMD |
297 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 560 nH | ±20% | 36 A | 55A | Shielded | 1.5mOhm Max | 20 @ 100kHz | 60MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SRP1245A-R20MFIXED IND 200NH 52A 0.55MOHM SMD |
238 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 200 nH | ±20% | 52 A | 110A | Shielded | 0.55mOhm Max | 10 @ 100kHz | 130MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
74439333012POWER INDUCTOR 5020; 1.2 H; 10.7 |
4,000 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 10.7 A | 11.6A | Shielded | 15mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.087" (2.20mm) |
