Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744393330068POWER INDUCTOR 5020; 0.68 H; 13. |
4,000 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 13.3 A | 17.2A | Shielded | 9.38mOhm Max | - | 75MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.087" (2.20mm) |
|
|
74439333010POWER INDUCTOR 5020; 1.0 H; 11.4 |
4,000 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 11.4 A | 14.4A | Shielded | 10.92mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.087" (2.20mm) |
|
|
744393330056POWER INDUCTOR 5020; 0.56 H; 15. |
4,000 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±20% | 15.4 A | 21.6A | Shielded | 8mOhm Max | - | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.087" (2.20mm) |
|
|
744393330033POWER INDUCTOR 5020; 0.33 H; 20. |
4,000 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±20% | 20.8 A | 12.2A | Shielded | 4.25mOhm Max | - | 105MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.087" (2.20mm) |
|
|
744393330016POWER INDUCTOR 5020; 0.16 H; 24. |
3,500 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 160 nH | ±20% | 24.7 A | 41.5A | Shielded | 3.13mOhm Max | - | 190MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.087" (2.20mm) |
|

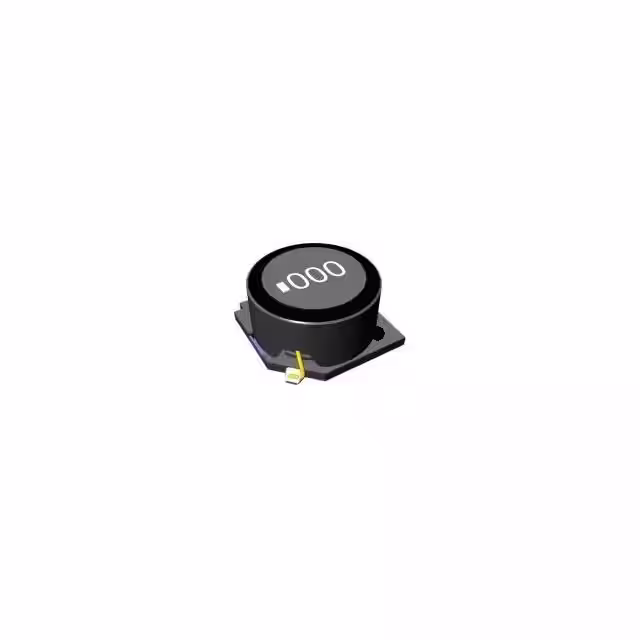

LCRNJ12565GL220MNFIXED IND 22UH 3.91A 37.2MOHM SM |
2,000 |
|
Datasheet |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 3.91 A | 4.2A | Shielded | 31mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LCRNJ12565GL101MNFIXED IND 100UH 1.81A 147.6 MOHM |
2,000 |
|
Datasheet |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.81 A | 2.23A | Shielded | 123mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LCRNJ12575GL220MNFIXED IND 22UH 4.05A 31.2MOHM SM |
1,977 |
|
Datasheet |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 4.05 A | 5.5A | Shielded | 26mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LCRNJ12575GL100MNFIXED IND 10UH 5.55A 18.72 MOHM |
1,950 |
|
Datasheet |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 5.55 A | 7.65A | Shielded | 15.6mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
DRC-1010-220K-ULRADIAL INDUCTOR WITH LEADS, 22.0 |
500 |
|
Datasheet |
DRC-1010 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.9 A | 3.4A | Unshielded | 40mOhm Max | 20 @ 2.52MHz | 9.5MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.512" (13.00mm) |
|
|
VCMT104T-330MN53MIND SMD 33.0UH AUTO GRADE CHOKE |
484 |
|
Datasheet |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 33 µH | ±20% | 3.6 A | 3.5A | Unshielded | 102mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DRC-1010-470K-ULRADIAL INDUCTOR WITH LEADS, 47.0 |
480 |
|
Datasheet |
DRC-1010 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.1 A | 2.3A | Unshielded | 75mOhm Max | 30 @ 2.52MHz | 5.8MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.512" (13.00mm) |
|
|
SRP1245CC-4R7MIND SMD 4.7UH 14A |
470 |
|
Datasheet |
SRP1245CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 14 A | 27A | Shielded | 15mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SRP1245CC-100MIND SMD 10UH 11A |
401 |
|
Datasheet |
SRP1245CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 10 µH | ±20% | 11 A | 17A | Shielded | 25.5mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
DRC-1010-472J-ULRADIAL INDUCTOR WITH LEADS, 4700 |
300 |
|
Datasheet |
DRC-1010 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 210 mA | 240mA | Unshielded | 7.6Ohm Max | 30 @ 252kHz | 540kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.512" (13.00mm) |
|
|
DRC-1010-331J-ULRADIAL INDUCTOR WITH LEADS, 330. |
300 |
|
Datasheet |
DRC-1010 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 820 mA | 880mA | Unshielded | 520mOhm Max | 20 @ 796kHz | 2MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.512" (13.00mm) |
|
|
SRP1245CC-1R0MIND SMD 1UH 30A |
290 |
|
Datasheet |
SRP1245CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 1 µH | ±20% | 30 A | 50A | Shielded | 2.4mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
DRC-1010-153J-ULRADIAL INDUCTOR WITH LEADS, 1500 |
283 |
|
Datasheet |
DRC-1010 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±5% | 120 mA | 130mA | Unshielded | 24Ohm Max | 50 @ 79.6kHz | 290kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.512" (13.00mm) |
|
|
DRC-1010-332J-ULRADIAL INDUCTOR WITH LEADS, 3300 |
265 |
|
Datasheet |
DRC-1010 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±5% | 260 mA | 280mA | Unshielded | 4.9Ohm Max | 30 @ 252kHz | 640kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.512" (13.00mm) |
|
|
DRC-1010-682J-ULRADIAL INDUCTOR WITH LEADS, 6800 |
248 |
|
Datasheet |
DRC-1010 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±5% | 180 mA | 200mA | Unshielded | 9.8Ohm Max | 30 @ 252kHz | 450kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.512" (13.00mm) |
