Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74439323022POWER INDUCTOR 4020; 2.2 H; 7.20 |
3,915 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 7.2 A | 6.3A | Shielded | 23.52mOhm Max | - | 37MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
|
|
74439324022POWER INDUCTOR 4030; 2.2 H; 7.80 |
3,913 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 7.8 A | 10.5A | Shielded | 19.8mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
74439324010POWER INDUCTOR 4030; 1.0 H; 11.1 |
3,890 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 11.1 A | 12A | Shielded | 10.32mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
74439325033POWER INDUCTOR 4040; 3.3 H; 7.2 |
3,000 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 7.2 A | 7.9A | Shielded | 25mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.161" (4.10mm) |
|
|
74439325056POWER INDUCTOR 4040; 5.6 H; 5.1 |
2,980 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 5.6 µH | ±20% | 5.1 A | 5.5A | Shielded | 44.4mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.161" (4.10mm) |
|
|
74439325047POWER INDUCTOR 4040; 4.7 H; 5.7 |
2,959 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 5.7 A | 5.7A | Shielded | 34.8mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.161" (4.10mm) |
|
|
744393240047POWER INDUCTOR 4030; 0.47 H; 17. |
2,814 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 17.1 A | 19.2A | Shielded | 4.5mOhm Max | - | 105MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
SRP6030VA-5R6MFIXED IND 5.6UH 6.5A 42MOHM SMD |
2,671 |
|
Datasheet |
SRP6030VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 5.6 µH | ±20% | 6.5 A | 7.2A | Shielded | 42mOhm Max | 10 @ 100kHz | 17MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
74439325068POWER INDUCTOR 4040; 6.8 H; 4.1 |
2,150 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 4.1 A | 4.9A | Shielded | 55mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.161" (4.10mm) |
|
MPL-AL5030-1R0FIXED IND 1UH 11.2A 6.5 MOHM SMD |
1,966 |
|
- |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 1 µH | - | 11.2 A | 16A | Unshielded | 6.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
MPL-AL5030-R56FIXED IND 560NH 13.2A 3.92 MOHM |
1,890 |
|
- |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 560 nH | - | 13.2 A | 22A | Unshielded | 3.92mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|

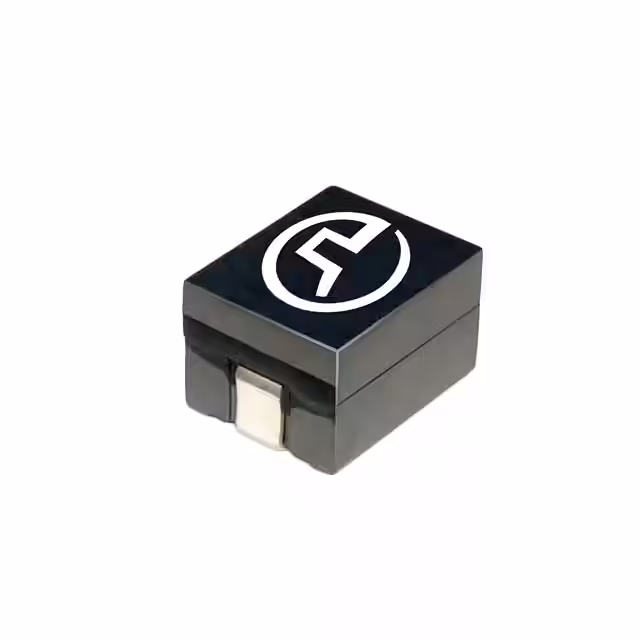

PA1320.171NLTFIXED IND 180NH 40A 0.48MOHM SMD |
1,500 |
|
Datasheet |
PA1320NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 nH | ±20% | 40 A | 52A | Shielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.315" W (10.41mm x 8.00mm) | 0.256" (6.50mm) |
|
PG0087.222NLTFIXED IND 2.2UH 2.2A 45 MOHM SMD |
1,331 |
|
Datasheet |
PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 2.2 A | 2.2A | Shielded | 45mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
PF0560.473NLTFIXED IND 47UH 1.9A 128 MOHM SMD |
1,230 |
|
Datasheet |
PF0560NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±25% | 1.9 A | 2.1A | Shielded | 128mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
SRP6030VA-R82MFIXED IND 820NH 16A 6.8MOHM SMD |
989 |
|
Datasheet |
SRP6030VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 820 nH | ±20% | 16 A | 18A | Shielded | 6.8mOhm Max | 10 @ 100kHz | 46MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6030VA-R68MFIXED IND 680NH 17A 5.6MOHM SMD |
975 |
|
Datasheet |
SRP6030VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 17 A | 19A | Shielded | 5.6mOhm Max | 10 @ 100kHz | 50MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6030VA-R47MFIXED IND 470NH 20A 4 MOHM SMD |
895 |
|
Datasheet |
SRP6030VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 20 A | 21A | Shielded | 4mOhm Max | 10 @ 100kHz | 65MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6030VA-2R2MFIXED IND 2.2UH 11A 25.8MOHM SMD |
560 |
|
Datasheet |
SRP6030VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 11 A | 13A | Shielded | 25.8mOhm Max | 10 @ 100kHz | 29MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6030VA-1R5MFIXED IND 1.5UH 13A 13.2MOHM SMD |
559 |
|
Datasheet |
SRP6030VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 13 A | 14A | Shielded | 13.2mOhm Max | 10 @ 100kHz | 32MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6030VA-1R0MFIXED IND 1UH 15A 8 MOHM SMD |
378 |
|
Datasheet |
SRP6030VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 15 A | 16A | Shielded | 8mOhm Max | 10 @ 100kHz | 43MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
