Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

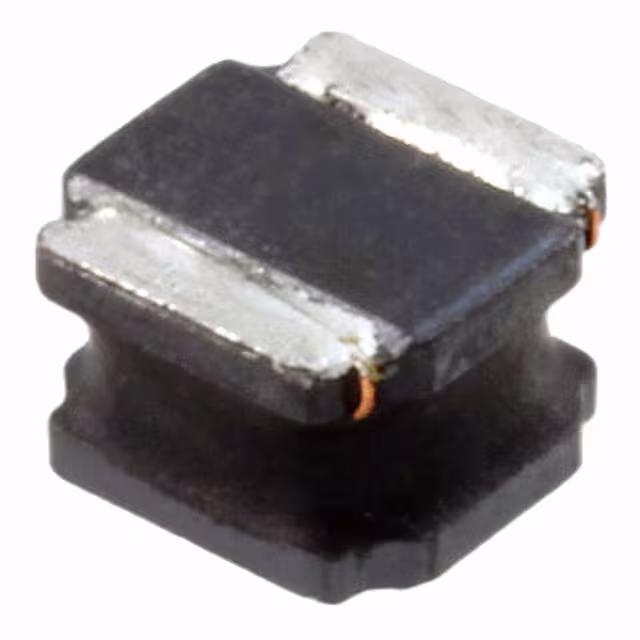

TYS4030121M-10FIXED IND 120UH 420MA 1.755 OHM |
4,629 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±20% | 420 mA | 550mA | Shielded | 1.755Ohm Max | - | 5.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
PLEA85DCA2R2M-1PT00IND 2.2UH,1.0A, 0.25OHMS,-40~+85 |
4,629 |
|
Datasheet |
PLE | Nonstandard | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 550 mA | 400mA | Unshielded | 600mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.039" L x 0.031" W (1.00mm x 0.80mm) | 0.022" (0.55mm) |
|

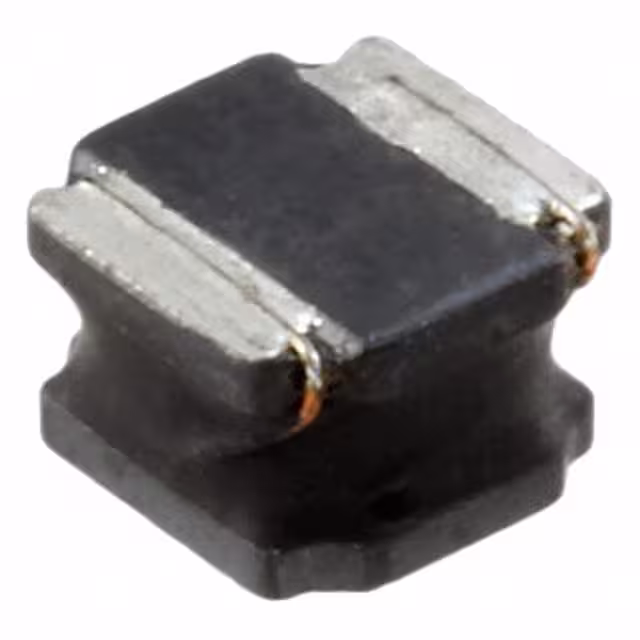

TYS4030330M-10FIXED IND 33UH 840MA 429MOHM SMD |
4,621 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 840 mA | 1.1A | Shielded | 429mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
2176638-8FIXED IND 10UH 700MA 0.38OHM SMD |
4,452 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 700 mA | 750mA | Unshielded | 380mOhm | - | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
BMMA000606303R3MV1INDUCTOR POWER |
4,355 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6 A | 13.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
1-2176638-1FIXED IND 33UH 390MA 1.15OHM SMD |
4,143 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 390 mA | 380mA | Unshielded | 1.15Ohm | - | 13MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
BMRB000606301R5MA1INDUCTOR POWER |
4,108 |
|
Datasheet |
BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 10 A | 14A | Shielded | 12.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
LQH2HPH220MGRLFIXED IND 22UH 460MA SMD |
4,050 |
|
Datasheet |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 250 mA | 460mA | Shielded | 1.632Ohm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
2176638-1FIXED IND 470NH 2.55A 0.03OHM SM |
4,000 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±30% | 2.55 A | 3.4A | Unshielded | 30mOhm | - | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
1-2176638-4FIXED IND 100UH 250MA 2.7OHM SMD |
3,935 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 250 mA | 180mA | Unshielded | 2.7Ohm | - | 8MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
TYS50403R3N-10FIXED IND 3.3UH 3.4A 24 MOHM SMD |
3,866 |
|
Datasheet |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 3.4 A | 3.95A | Shielded | 24mOhm | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
LQH3NPZ4R7MJRLFIXED IND |
3,627 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.58 A | 1.18A | Shielded | 144mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
2176635-6FIXED IND 10UH 450MA 0.42OHM SMD |
3,084 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 450 mA | - | Unshielded | 420mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
LQH2HPH4R7MGRLFIXED IND 4.7UH 1090MA SMD |
3,000 |
|
Datasheet |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 570 mA | 1.09A | Shielded | 360mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
744765110GAFIXED IND 10NH 480MA 195MOHM SMD |
2,992 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±2% | 480 mA | - | Unshielded | 195mOhm Max | 23 @ 250MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
F1C1-160808-R47MFIXED IND 0.47UH 2.3A 100 MOHM |
2,970 |
|
Datasheet |
F1C1-1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 2.3 A | 3.7A | Shielded | 100mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
744765115GAFIXED IND 15NH 560MA 172MOHM SMD |
2,900 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±2% | 560 mA | - | Unshielded | 172mOhm Max | 26 @ 250MHz | 3.28GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765147GAFIXED IND 47NH 100MA 830MOHM SMD |
2,880 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±2% | 100 mA | - | Unshielded | 830mOhm Max | 26 @ 200MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765082GAFIXED IND 8.2NH 680MA 104MOHM SM |
2,878 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±0.2nH | 680 mA | - | Unshielded | 104mOhm Max | 25 @ 250MHz | 4.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|

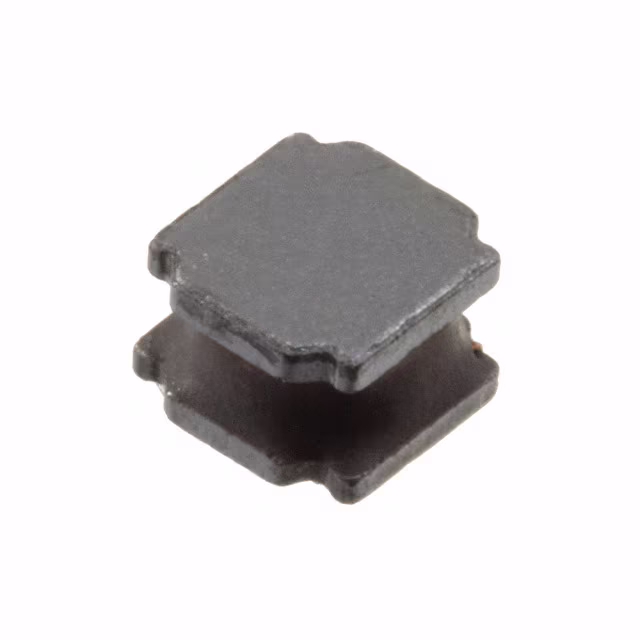

TYS4030680M-10FIXED IND 68UH 520MA 1.128OHM SM |
2,769 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 520 mA | 720mA | Shielded | 1.128Ohm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
