Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC322522A-2R2KFIXD IND 2.2UH 1.15A 250MOHM SMD |
2,042 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 1.15 A | 1A | Unshielded | 250mOhm Max | 8 @ 7.96MHz | 65MHz | AEC-Q200 | -40°C ~ 150°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CC322522A-4R7KFIXD IND 4.7UH 900MA 380MOHM SMD |
2,015 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±10% | 900 mA | 700mA | Unshielded | 380mOhm Max | 8 @ 7.96MHz | 46MHz | AEC-Q200 | -40°C ~ 150°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

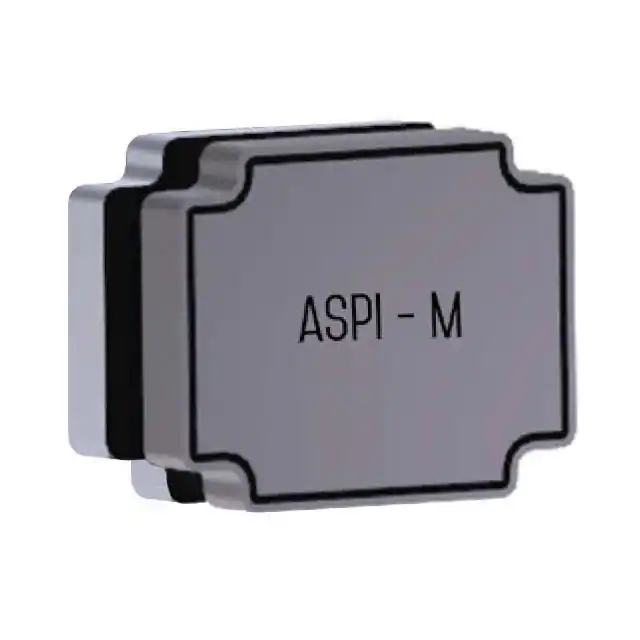

ASPI-M3015-2R2M-TFIXED IND 2.2UH SMD |
2,000 |
|
Datasheet |
ASPI-M | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 2.2 µH | - | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LQH32PZ4R7NNCLFIXED IND |
2,000 |
|
Datasheet |
LQH3 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 1.2 A | 1.6A | Shielded | 186mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
CC322522A-150KFIXED IND 15UH 450MA 1.45OHM SMD |
2,000 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 450 mA | 350mA | Unshielded | 1.45Ohm Max | 15 @ 2.52MHz | 25MHz | AEC-Q200 | -40°C ~ 150°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
LQH3NPH330MMELFIXED IND 33UH 760MA 660MOHM SMD |
2,000 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 760 mA | 440mA | Shielded | 660mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
ASPI-M3015-4R7M-TFIXED IND 4.7UH SMD |
1,995 |
|
Datasheet |
ASPI-M | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 4.7 µH | - | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
CC322522A-1R5KFIXD IND 1.5UH 1.35A 195MOHM SMD |
1,987 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±10% | 1.35 A | 1.1A | Unshielded | 195mOhm Max | 8 @ 7.96MHz | 80MHz | AEC-Q200 | -40°C ~ 150°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
ASPI-M3015-100M-TFIXED IND 10UH SMD |
1,983 |
|
Datasheet |
ASPI-M | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
CC322522A-470KFIXED IND 47UH 270MA 4.8 OHM SMD |
1,980 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 270 mA | 205mA | Unshielded | 4.8Ohm Max | 20 @ 2.52MHz | 11MHz | AEC-Q200 | -40°C ~ 150°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH3NPH560MMELFIXED IND 56UH 500MA 1.2 OHM SMD |
1,960 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 500 mA | 350mA | Shielded | 1.2Ohm Max | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQH3NPH6R8MMELFIXED IND 6.8UH 1450MA SMD |
1,935 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | - | - | ±20% | - | - | - | - | - | - | AEC-Q200 | -40°C ~ 125°C | - | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
CC322522A-220KFIXED IND 22UH 370MA 2 OHM SMD |
1,920 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 370 mA | 300mA | Unshielded | 2Ohm Max | 15 @ 2.52MHz | 20MHz | AEC-Q200 | -40°C ~ 150°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CC322522A-3R3KFIXD IND 3.3UH 950MA 320MOHM SMD |
1,915 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±10% | 950 mA | 750mA | Unshielded | 320mOhm Max | 8 @ 7.96MHz | 55MHz | AEC-Q200 | -40°C ~ 150°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
ASPI-M3015-1R0M-TFIXED IND 1UH SMD |
1,900 |
|
Datasheet |
ASPI-M | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 1 µH | - | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
CC322522A-680KFIXED IND 68UH 220MA 6.9 OHM SMD |
1,838 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±10% | 220 mA | 170mA | Unshielded | 6.9Ohm Max | 20 @ 2.52MHz | 10MHz | AEC-Q200 | -40°C ~ 150°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CC322522A-330KFIXED IND 33UH 300MA 2.8 OHM SMD |
1,788 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±10% | 300 mA | 250mA | Unshielded | 2.8Ohm Max | 15 @ 2.52MHz | 15MHz | AEC-Q200 | -40°C ~ 150°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CC322522A-6R8KFIXD IND 6.8UH 700MA 580MOHM SMD |
1,717 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±10% | 700 mA | 500mA | Unshielded | 580mOhm Max | 8 @ 7.96MHz | 35MHz | AEC-Q200 | -40°C ~ 150°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32PZ6R8NNCLFIXED IND |
1,670 |
|
Datasheet |
LQH3 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 1.1 A | 1.3A | Shielded | 264mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|

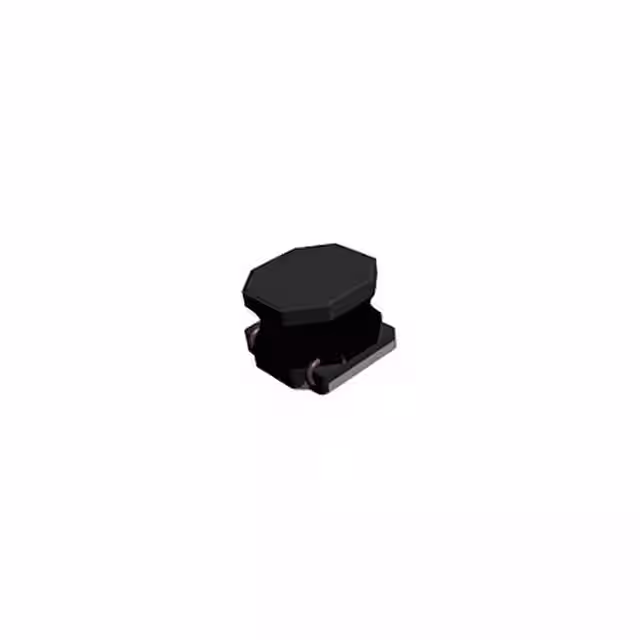

LCXHF6060YEL1R5NMRFIXED IND 1.5UH 3.4A 19MOHM SMD |
1,500 |
|
Datasheet |
LCXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 3.4 A | 10A | Unshielded | 19mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
