Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

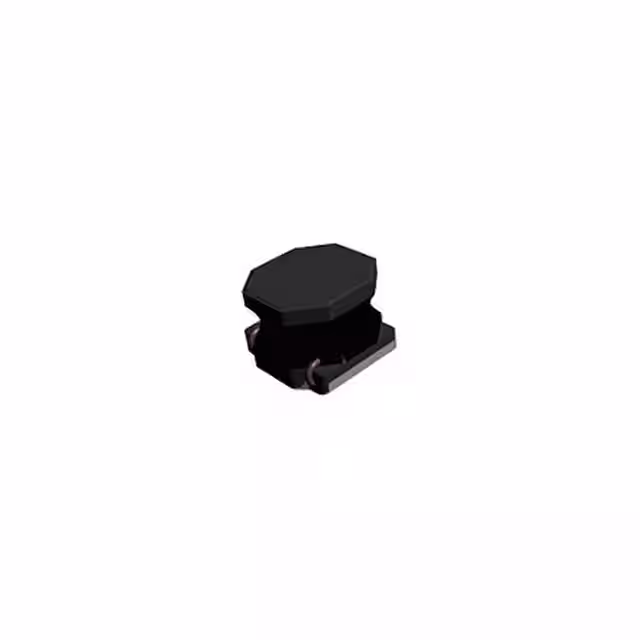

LCXHF6060YEL101MMRFIXED IND 100UH 550MA 600MOHM SM |
1,500 |
|
Datasheet |
LCXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 550 mA | 1.05A | Unshielded | 600mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LCXND5050YAL100MMGFIXED IND 10UH 2.1A 72.8MOHM SMD |
1,500 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 2.3A | Unshielded | 56mOhm | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
LCXHF6060YEL2R2NMRFIXED IND 2.2UH 3A 23 MOHM SMD |
1,495 |
|
Datasheet |
LCXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 3 A | 8.5A | Unshielded | 23mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

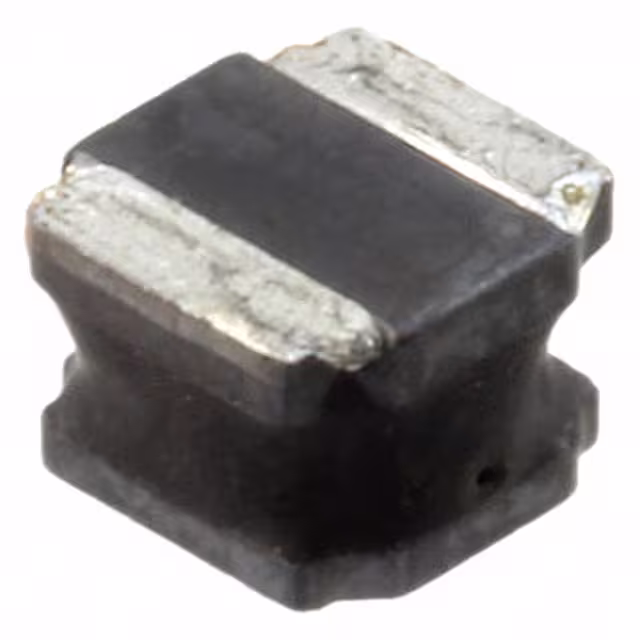

TYS40302R2N-10FIXED IND 2.2UH 2.95A 39MOHM SMD |
22,899 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±30% | 2.95 A | 4.9A | Shielded | 39mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
TYS40303R3M-10FIXED IND 3.3UH 2.4A 40 MOHM SMD |
17,213 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 2.4 A | 3.3A | Shielded | 40mOhm | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
PLEA85DCA3R3M-1PT00IND,3.3UH,0.5A, 1.0OHMS,-40~+85 |
7,860 |
|
Datasheet |
PLE | Nonstandard | Tape & Reel (TR) | Active | Thin Film | Metal | 3.3 µH | ±20% | 450 mA | 250mA | Shielded | 1.2Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.039" L x 0.031" W (1.00mm x 0.80mm) | 0.022" (0.55mm) |
|

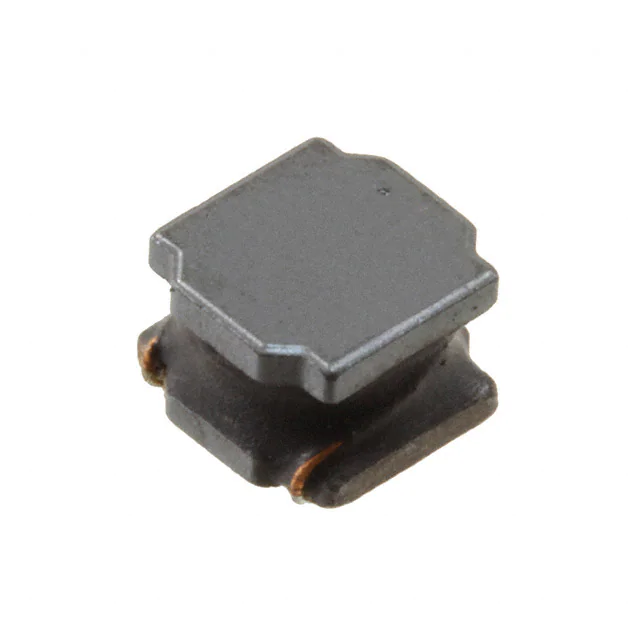

TYS40306R8M-10FIXED IND 6.8UH 1.6A 117MOHM SMD |
7,441 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 1.6 A | 2.75A | Shielded | 117mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
BMMA000606302R2MV1INDUCTOR POWER |
7,352 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
PLEA85DCAR47M-1PT00FIXED IND 0.47UH 700MA 120MOHM |
6,710 |
|
Datasheet |
PLE | Nonstandard | Tape & Reel (TR) | Active | Thin Film | Metal | 470 nH | ±20% | 1 A | 700mA | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.039" L x 0.031" W (1.00mm x 0.80mm) | 0.022" (0.55mm) |
|
|
2176638-7FIXED IND 6.8UH 850MA 0.24OHM SM |
6,000 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 850 mA | 850mA | Unshielded | 240mOhm | - | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
2176638-5FIXED IND 3.3UH 1.2A 0.12OHM SMD |
6,000 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 1.2 A | 1.25A | Unshielded | 120mOhm | - | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
1-2176635-2FIXED IND 10UH 100MA 4.5OHM SMD |
6,000 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 100 mA | - | Unshielded | 4.5Ohm Max | - | 8MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
1-2176635-1FIXED IND 68UH 130MA 3.2OHM SMD |
6,000 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±10% | 130 mA | - | Unshielded | 3.2Ohm Max | - | 9MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
2176635-2FIXED IND 1.5UH 1.2A 0.068OHM SM |
6,000 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 1.2 A | - | Unshielded | 68mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
2176638-9FIXED IND 15UH 520MA 0.57OHM SMD |
6,000 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 520 mA | 600mA | Unshielded | 570mOhm | - | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
2176638-6FIXED IND 4.7UH 1A 0.18OHM SMD |
6,000 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 1 A | 1A | Unshielded | 180mOhm | - | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
2176635-4FIXED IND 3.3UH 700MA 0.18OHM SM |
6,000 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 700 mA | - | Unshielded | 180mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
2176638-2FIXED IND 1UH 2.05A 0.045OHM SMD |
6,000 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 2.05 A | 2.3A | Unshielded | 45mOhm | - | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
1-2176638-0FIXED IND 22UH 450MA 0.81OHM SMD |
5,998 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 450 mA | 500mA | Unshielded | 810mOhm | - | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|
|
1-2176638-3FIXED IND 68UH 275MA 2.28OHM SMD |
5,990 |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 275 mA | 280mA | Unshielded | 2.28Ohm | - | 11MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
