Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN3015BTA-470MFIXED IND 47UH 700MA 1.44OHM SMD |
1,970 |
|
Datasheet |
SRN3015BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 700 mA | 460mA | Shielded | 1.44Ohm Max | 15 @ 1MHz | 18MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
BMMA00060630100MV1INDUCTOR POWER |
1,919 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 3 A | 7A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
SRN3015BTA-R24MFIXED IND 240NH 5A 0.016OHM SMD |
1,888 |
|
Datasheet |
SRN3015BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 240 nH | ±20% | 5 A | 6A | Shielded | 16mOhm Max | 3 @ 1MHz | 360MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
TYS6045330M-10FIXED IND 33UH 1.45A 137MOHM SMD |
1,733 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.45 A | 1.65A | Shielded | 137mOhm | - | 7.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
SRN3015BTA-1R0MFIXED IND 1UH 3A 0.036OHM SMD |
1,732 |
|
Datasheet |
SRN3015BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3 A | 3A | Shielded | 36mOhm Max | 10 @ 1MHz | 155MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015BTA-180MFIXED IND 18UH 1.1A 0.456OHM SMD |
1,688 |
|
Datasheet |
SRN3015BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.1 A | 730mA | Shielded | 456mOhm Max | 15 @ 1MHz | 29MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LQH3NPZ470MJRLFIXED IND 47UH 240MA 1 OHM SMD |
1,655 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 240 mA | 360mA | Shielded | 1Ohm Max | - | 10MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
SRN3015BTA-3R3MFIXED IND 3.3UH 2.2A 0.096OHM SM |
1,637 |
|
Datasheet |
SRN3015BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.2 A | 1.7A | Shielded | 96mOhm Max | 10 @ 1MHz | 75MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015BTA-330MFIXED IND 33UH 850MA 0.94OHM SMD |
1,518 |
|
Datasheet |
SRN3015BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 850 mA | 570mA | Shielded | 940mOhm Max | 15 @ 1MHz | 21MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

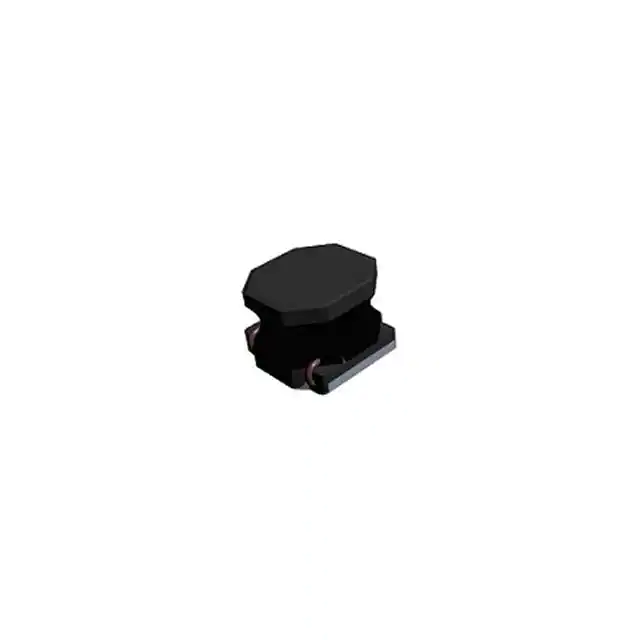

LCXHF6060YEL221MMRFIXED IND 220UH 350MA 1.32OHM SM |
1,475 |
|
Datasheet |
LCXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 350 mA | 700mA | Unshielded | 1.32Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SRN3015BTA-150MFIXED IND 15UH 1.2A 0.372OHM SMD |
1,104 |
|
Datasheet |
SRN3015BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.2 A | 850mA | Shielded | 372mOhm Max | 15 @ 1MHz | 30MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
PLE856CBAR47M-1PT00IND,0.47UH,0.62A,210M,-40~125 |
16,000 |
|
Datasheet |
PLE | 0302 (0805 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 470 nH | ±20% | 800 mA | 620mA | Unshielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0302 | 0.031" L x 0.018" W (0.80mm x 0.45mm) | 0.026" (0.65mm) |
|
|
PLE856CBA1R0M-1PT00IND,1.0UH,0.42A,420M,-40~125 |
15,950 |
|
Datasheet |
PLE | 0302 (0805 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 620 mA | 420mA | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0302 | 0.031" L x 0.018" W (0.80mm x 0.45mm) | 0.026" (0.65mm) |
|
|
TYS60453R3N-10FIXED IND 3.3UH 3.7A 21 MOHM SMD |
9,935 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 3.7 A | 5.9A | Shielded | 21mOhm | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
TYS60451R0N-10FIXED IND 1UH 5.14A 11 MOHM SMD |
9,685 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 5.14 A | 9.85A | Shielded | 11mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|

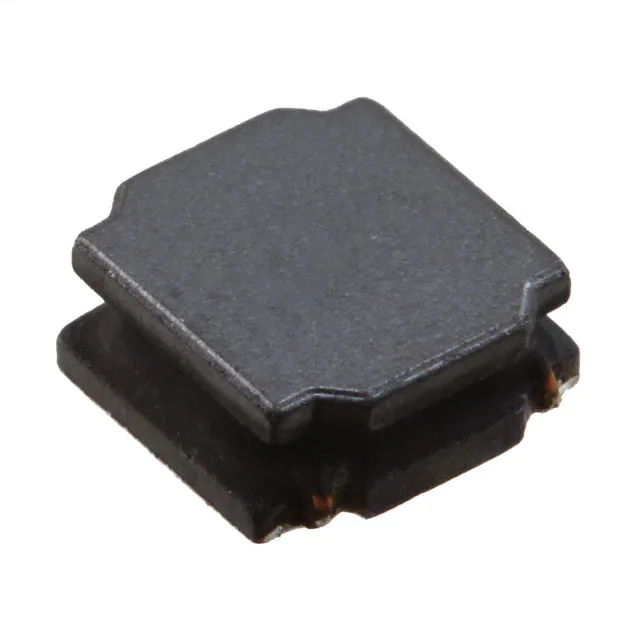

TYS60283R3N-10FIXED IND 3.3UH 3.48A 25MOHM SMD |
9,440 |
|
Datasheet |
TYS6028 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 3.48 A | 4.15A | Shielded | 25mOhm | - | 41MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
TYS6028150M-10FIXED IND 15UH 1.45A 125MOHM SMD |
7,990 |
|
Datasheet |
TYS6028 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.45 A | 1.75A | Shielded | 125mOhm | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
TYS60284R7N-10FIXED IND 4.7UH 3.08A 30MOHM SMD |
7,985 |
|
Datasheet |
TYS6028 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 3.08 A | 3A | Shielded | 30mOhm | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
TYS6028220M-10FIXED IND 22UH 1.4A 140 MOHM SMD |
7,983 |
|
Datasheet |
TYS6028 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.4 A | 1.45A | Shielded | 140mOhm | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
TYS6028470M-10FIXED IND 47UH 1.06A 315MOHM SMD |
7,977 |
|
Datasheet |
TYS6028 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.06 A | 1.15A | Shielded | 315mOhm | - | 9.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
