Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18AS10NJ0CDFIXED IND 10NH 700MA 130MOHM SMD |
1,780 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 10 nH | ±5% | 700 mA | - | Unshielded | 130mOhm Max | 31 @ 250MHz | 4.8GHz | - | -40°C ~ 85°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
AWVF004040182R2M00INDUCTOR POWER |
1,600 |
|
Datasheet |
AWVF | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 2.7 A | 3A | Shielded | 47mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
|
LQW18AS68NJ0CDFIXED IND 68NH 600MA 340MOHM SMD |
1,513 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 68 nH | ±5% | 600 mA | - | Unshielded | 340mOhm Max | 37 @ 200MHz | 1.7GHz | - | -40°C ~ 85°C | 200 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LCXND5050YAL1R5NMGFIXED IND 1.5UH 4.5A 22.1MOHM SM |
1,500 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 4.5 A | 6.4A | Unshielded | 17mOhm | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
LCXND5050YAL3R3NMGFIXED IND 3.3UH 3.3A 35.1MOHM SM |
1,437 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 3.3 A | 4A | Unshielded | 27mOhm | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
LCXND5050YKL150MMGFIXED IND 15UH 1.8A 104 MOHM SMD |
1,435 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 2A | Unshielded | 80mOhm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
LCXHF4040WKT3R3MNRFIXED INDUCTOR 3.3UH SMD |
1,400 |
|
Datasheet |
LCXH | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.7 A | 2.4A | Unshielded | 66mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
LCXHF4040WKT151MNRFIXED INDUCTOR 150UH SMD |
1,400 |
|
Datasheet |
LCXH | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 250 mA | 390mA | Unshielded | 2.364Ohm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
LBXHF4040WKT3R3MNRINDUCTOR, 4.0X4.0, 3.3UH 20, T&R |
1,400 |
|
Datasheet |
LBXH | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.7 A | 2.4A | Unshielded | 66mOhm | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
LBXHF4040WKT151MNRINDUCTOR, 4.0X4.0, 150UH 20, T&R |
1,400 |
|
Datasheet |
LBXH | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 250 mA | 390mA | Unshielded | 2.364Ohm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
LSCNB1005EETR10MBFIXED IND 100NH 2A 50 MOHM SMD |
7,900 |
|
Datasheet |
LSCN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 100 nH | ±20% | 2 A | 2A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
AISC-0603F-R39J-TFIXED IND 390NH 490MA 330MOHM SM |
4,250 |
|
Datasheet |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±5% | 490 mA | - | Unshielded | 330mOhm Max | - | 750MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
LCXND5050YAL6R8MMGFIXED IND 6.8UH 2.4A 63.7MOHM SM |
2,990 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 2.4 A | 2.8A | Unshielded | 49mOhm | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|

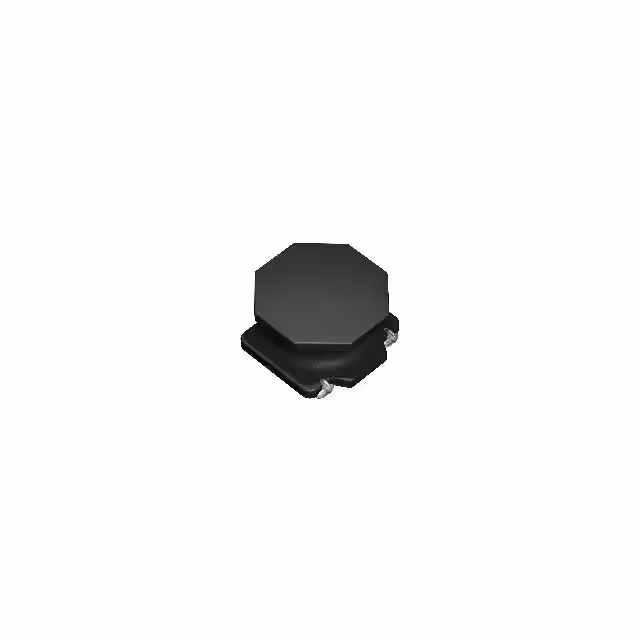

LSDND3030KKT2R2MMFIXED IND 2.2UH 1.9A 144MOHM SMD |
2,000 |
|
- |
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 1.9 A | 2.5A | Shielded | 144mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LCXND5050YKL220MMGFIXED IND 22UH 1.4A 163.8MOHM SM |
1,490 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.5A | Unshielded | 126mOhm | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
LCXND5050YKL470MMGFIXED IND 47UH 900MA 403MOHM SMD |
1,478 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 900 mA | 1.1A | Unshielded | 310mOhm | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
LCXND5050YAL4R7NMGFIXED IND 4.7UH 3.1A 37.7MOHM SM |
1,460 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 3.1 A | 3.3A | Unshielded | 29mOhm | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
|
SRN6028C-6R0MFIXED IND 6UH 2.5A 48 MOHM SMD |
1,460 |
|
Datasheet |
SRN6028C | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 2.8 A | 3A | Shielded | 42mOhm | 15 @ 100kHz | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SRN6028C-R90YFIXED IND 900NH 4.6A 17 MOHM SMD |
1,414 |
|
Datasheet |
SRN6028C | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 0.9 µH | ±30% | 7.8 A | 8A | Shielded | 8.2mOhm | 20 @ 100kHz | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SRN6028C-1R0YFIXED IND 1UH 5.2A SMD |
1,402 |
|
Datasheet |
SRN6028C | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 5.2 A | 5.75A | Shielded | 10mOhm | 15 @ 100kHz | 110MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
