Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
PE-1008CD102GTTFIXED IND 1UH 120MA 1.9 OHM SMD |
4,900 |
|
Datasheet |
1008CD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±2% | 120 mA | - | Unshielded | 1.9Ohm Max | 35 @ 50MHz | 260MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
PE-1008CD221GTTFIXED IND 220NH 500MA 840MOHM SM |
4,782 |
|
Datasheet |
1008CD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±2% | 500 mA | - | Unshielded | 840mOhm Max | 45 @ 100MHz | 625MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
744765212AWE-KI SMT WIRE WOUND CERAMIC IND |
4,105 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 120 nH | ±5% | 100 mA | - | Unshielded | 2.66Ohm Max | 20 @ 150MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
LQH32PB1R0NN0LFIXED IND 1UH 2.05A 54 MOHM SMD |
3,840 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.05 A | 2.3A | Shielded | 54mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
F1C1-201210-1R5MFIXED IND 1.5UH 2.6A 85 MOHM |
2,969 |
|
Datasheet |
F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 2.6 A | 2.7A | Shielded | 85mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
744765182AWE-KI SMT WIRE WOUND CERAMIC IND |
2,940 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 82 nH | ±5% | 100 mA | - | Unshielded | 1.25Ohm Max | 20 @ 150MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
F1C1-201210-R33MFIXED IND 0.33UH 5.0A 32 MOHM |
2,850 |
|
Datasheet |
F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 5 A | 6A | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE252008U-100M=P2FIXED IND 10UH 600MA 0.88OHM SMD |
2,770 |
|
Datasheet |
DFE252008U | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 600 mA | 1A | Shielded | 880mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
BWVS006060201R5T00INDUCTOR POWER |
2,000 |
|
Datasheet |
BWVS | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 3.24 A | 4.5A | Shielded | 26mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
.jpg)
|
B82422T1223J000FIXED IND 22UH 110MA 3.5 OHM SMD |
1,800 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 110 mA | - | Unshielded | 3.5Ohm Max | 27 @ 2.52MHz | 20MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
AISC-0805F-150G-TFIXED IND 15UH 80MA 6.5 OHM SMD |
1,479 |
|
Datasheet |
AISC-0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±2% | 80 mA | - | Unshielded | 6.5Ohm Max | 10 @ 2.5MHz | 23MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
|
B82422T1822J000FIXED IND 8.2UH 170MA 2 OHM SMD |
34,000 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 170 mA | - | Unshielded | 2Ohm Max | 27 @ 7.96MHz | 35MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|

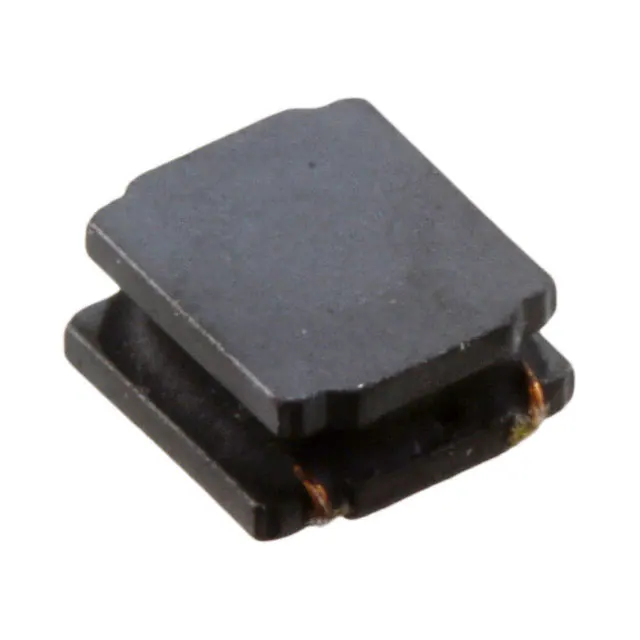

TYS30154R7M-10FIXED IND 4.7UH 1.09A 125MOHM SM |
11,164 |
|
Datasheet |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.09 A | 1.1A | Shielded | 125mOhm Max | - | 46MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
|
744901030WE-TCI THINFILM CHIP INDUCTOR SI |
10,000 |
|
Datasheet |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 3 nH | ±0.1nH | 380 mA | - | Unshielded | 450mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
BWVC006060451R0M00INDUCTOR POWER |
9,961 |
|
Datasheet |
BWVC | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±20% | 6.57 A | 11.7A | Shielded | 10mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
TYS30126R8M-10FIXED IND 6.8UH 980MA 190MOHM SM |
9,896 |
|
Datasheet |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 980 mA | 750mA | Shielded | 247mOhm Max | - | 61MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
|
TYS30156R8M-10FIXED IND 6.8UH 850MA 200MOHM SM |
8,304 |
|
Datasheet |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 850 mA | 850mA | Shielded | 200mOhm Max | - | 39MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
|
TYS3015220M-10FIXED IND 22UH 570MA 460MOHM SMD |
7,284 |
|
Datasheet |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 570 mA | 520mA | Shielded | 460mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
|
LMCNF1608KKTR56MADWIRE-WOUND METAL POWER INDUCTORS |
6,000 |
|
Datasheet |
MCOIL™, LMCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 560 nH | ±20% | 2.5 A | 2.3A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
TYS30151R0N-10FIXED IND 1UH 2.35A 35 MOHM SMD |
5,995 |
|
Datasheet |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 2.35 A | 2.32A | Shielded | 35mOhm Max | - | 150MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
