Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18CN15NJ0HDINDUCTOR FIXED 15NH 0603 |
2,383 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 nH | ±5% | 2.2 A | - | Unshielded | 25mOhm Max | - | 2GHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW18CN33NJ0HDINDUCTOR FIXED 33NH 0603 |
2,318 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 nH | ±5% | 1.7 A | - | Unshielded | 35mOhm Max | - | 1.8GHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LSQPB201210T330MFIXED IND 33UH 220MA 2.6 OHM SMD |
2,105 |
|
Datasheet |
LSQP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 220 mA | 150mA | Unshielded | 2.6Ohm Max | - | 8MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
LQW18CNR39J0HDINDUCTOR FIXED 390NH 0603 |
2,098 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 390 nH | ±5% | 620 mA | - | Unshielded | 280mOhm Max | - | 570MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
NLV32T-R22J-EFDFIXED IND 220NH 450MA 320MOHM SM |
2,000 |
|
Datasheet |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±5% | 450 mA | - | Unshielded | 320mOhm Max | 30 @ 25.2MHz | 350MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
LSQPB201616T470KFIXED IND 47UH 210MA 2.86OHM SMD |
2,000 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 210 mA | 210mA | Unshielded | 2.86Ohm Max | - | 11MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPB201616T220KFIXED IND 22UH 310MA 1.3 OHM SMD |
2,000 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 310 mA | 310mA | Unshielded | 1.3Ohm Max | - | 24MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|

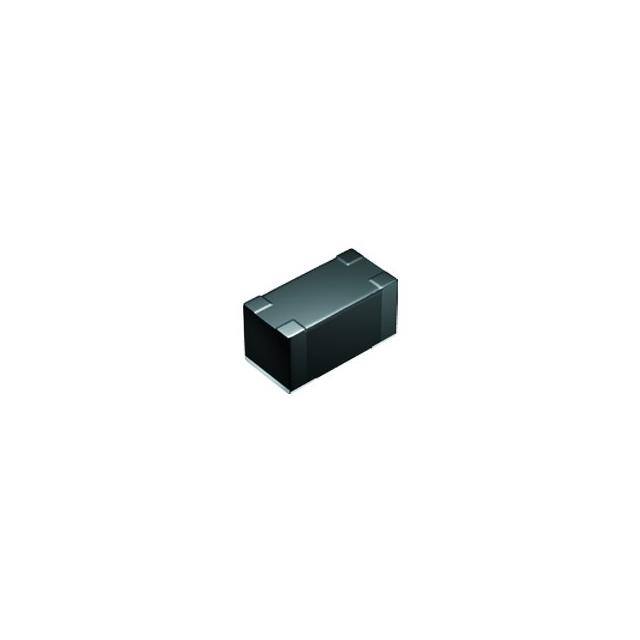

LSQPB201616T2R2MFIXED IND 2.2UH 760MA 234MOHM SM |
2,000 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 760 mA | 910mA | Unshielded | 234mOhm Max | - | 250MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPB201616T101KFIXED IND 100UH 170MA 4.42OHM SM |
1,990 |
|
Datasheet |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±10% | 170 mA | 140mA | Unshielded | 4.42Ohm Max | - | 7MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPB201616T4R7MFIXED IND 4.7UH 610MA 351MOHM SM |
1,985 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 610 mA | 660mA | Unshielded | 351mOhm Max | - | 78MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
NLV32T-331J-EFDFIXED IND 330UH 40MA 34 OHM SMD |
1,975 |
|
Datasheet |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 40 mA | - | Unshielded | 34Ohm Max | 20 @ 796kHz | 5MHz | AEC-Q200 | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
LSQPB201616T6R8MFIXED IND 6.8UH 560MA 429MOHM SM |
1,975 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 560 mA | 550mA | Unshielded | 429mOhm Max | - | 39MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPB201616T680KFIXED IND 68UH 190MA 3.64OHM SMD |
1,968 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±10% | 190 mA | 200mA | Unshielded | 3.64Ohm Max | - | 8MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPB201616T330KFIXED IND 33UH 240MA 2.21OHM SMD |
1,900 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±10% | 240 mA | 270mA | Unshielded | 2.21Ohm Max | - | 13MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPB201616T150KFIXED IND 15UH 410MA 780MOHM SMD |
1,865 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 410 mA | 400mA | Unshielded | 780mOhm Max | - | 28MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPB201616T100KFIXED IND 10UH 520MA 520MOHM SMD |
1,405 |
|
Datasheet |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 520 mA | 450mA | Unshielded | 520mOhm Max | - | 35MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
AISC-0603-R0051J-TFIXED IND 5.1NH 600MA 130MOHM SM |
1,250 |
|
Datasheet |
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.1 nH | ±5% | 600 mA | - | Unshielded | 130mOhm Max | 21 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
MLF2012A2R2JTD25FIXED IND 2.2UH 50MA 500MOHM SMD |
1,123 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±5% | 50 mA | - | Shielded | 500mOhm Max | 45 @ 10MHz | 80MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
LSQPB201616T470MFIXED IND 47UH 210MA 2.2 OHM SMD |
1,100 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 210 mA | 210mA | Unshielded | 2.86Ohm Max | - | 11MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
BSCH00160808R39J00FIXED IND 390NH 100MA 3 OHM SMD |
14,780 |
|
Datasheet |
BSCH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 390 nH | ±5% | 100 mA | - | Unshielded | 3Ohm Max | 8 @ 50MHz | 300MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
