Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LM100-20B05AC/DC CONVERTER 5V 90W |
44 |
|
![]() Datasheet |
LM100-20Bxx (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | - | - | - | - | - | 18 A | - | - | - | - | - | 90W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
![]() |

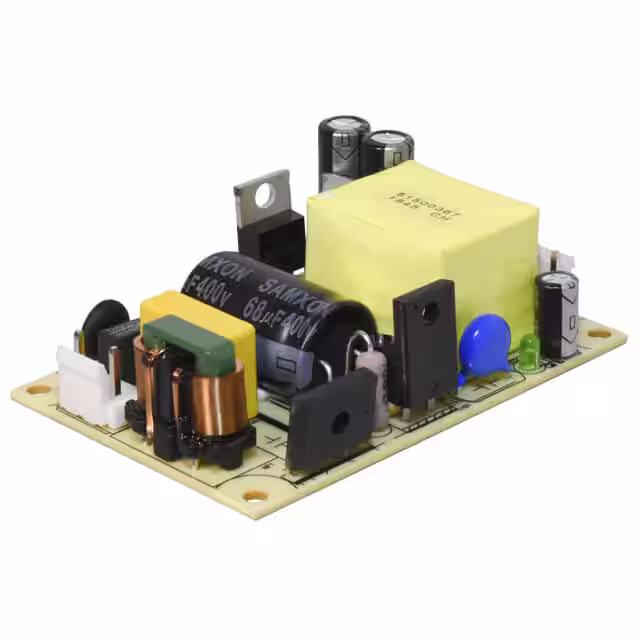

VOF-45C-S48AC/DC CONVERTER 48V 45W |
35 |
|
![]() Datasheet |
VOF-45C (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 48V | - | - | - | - | - | 940 mA | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
![]() |
VOF-40C-S12AC/DC CONVERTER 12V 40W |
60 |
|
![]() Datasheet |
VOF-40C (40W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 12V | - | - | - | - | - | 3.333 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
![]() |
LM200-20B24R2AC/DC CONVERTER 24V 211W |
59 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 24V | - | - | - | - | - | 8.8 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-20B15R2AC/DC CONVERTER 15V 210W |
31 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 15V | - | - | - | - | - | 14 A | - | - | - | - | - | 210W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
VOF-65C-S5AC/DC CONVERTER 5V 50W |
33 |
|
![]() Datasheet |
VOF-65C (65W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
![]() |
VOF-65C-S24AC/DC CONVERTER 24V 65W |
0 |
|
![]() Datasheet |
VOF-65C (65W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 2.71 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
![]() |

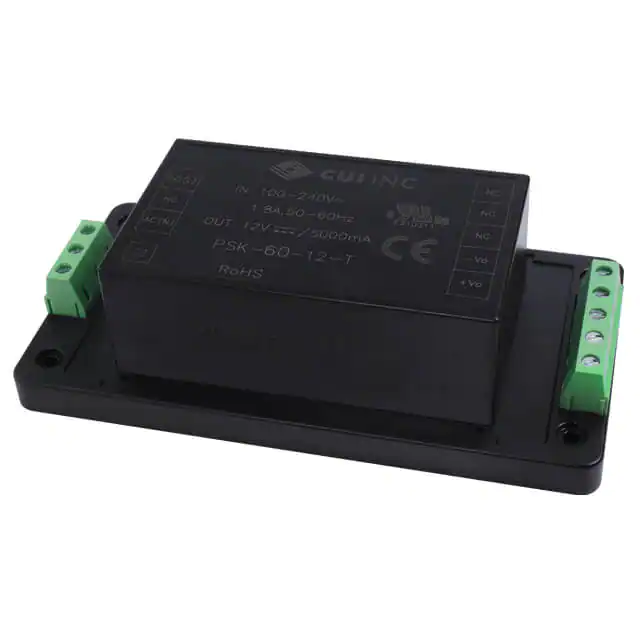

PSK-60-12-TAC/DC CONVERTER 12V 60W |
40 |
|
![]() Datasheet |
PSK-60 (60W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.32" L x 2.76" W x 1.49" H (135.0mm x 70.0mm x 37.9mm) |
![]() |
35ACPW_24S4ENCLOSED AC DC CONVERTERS 1 OUTP |
51 |
|
![]() Datasheet |
35ACPW_4 (35W) | Retail Package | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.22" W x 1.18" H (99.0mm x 81.9mm x 29.9mm) |
![]() |
VGS-150C-12AC/DC CONVERTER 12V 150W |
47 |
|
![]() Datasheet |
VGS-150C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
VGS-150C-15AC/DC CONVERTER 15V 150W |
6 |
|
![]() Datasheet |
VGS-150C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |

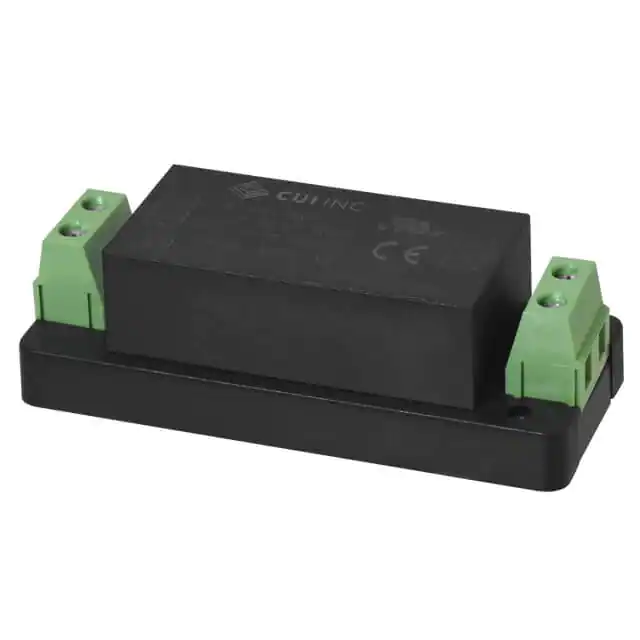

PSK-S6C-24-TAC/DC CONVERTER 24V 6W |
21 |
|
![]() Datasheet |
PSK-S6C (6W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 250 mA | - | - | - | - | - | 6W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 0.95" H (76.0mm x 31.5mm x 24.2mm) |
![]() |
PSK-S6C-5-TAC/DC CONVERTER 5V 6W |
10 |
|
![]() Datasheet |
PSK-S6C (6W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 5V | - | - | - | - | - | 1.2 A | - | - | - | - | - | 6W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 0.95" H (76.0mm x 31.5mm x 24.2mm) |
![]() |
VOF-60C-S12AC/DC CONVERTER 12V 60W |
7 |
|
![]() Datasheet |
VOF-60C (60W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
![]() |
PMT-24V50W1AAAC/DC CONVERTER 24V 50W |
77 |
|
![]() Datasheet |
PMT (50W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.09 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.86" L x 3.86" W x 1.50" H (98.0mm x 98.0mm x 38.0mm) |
![]() |

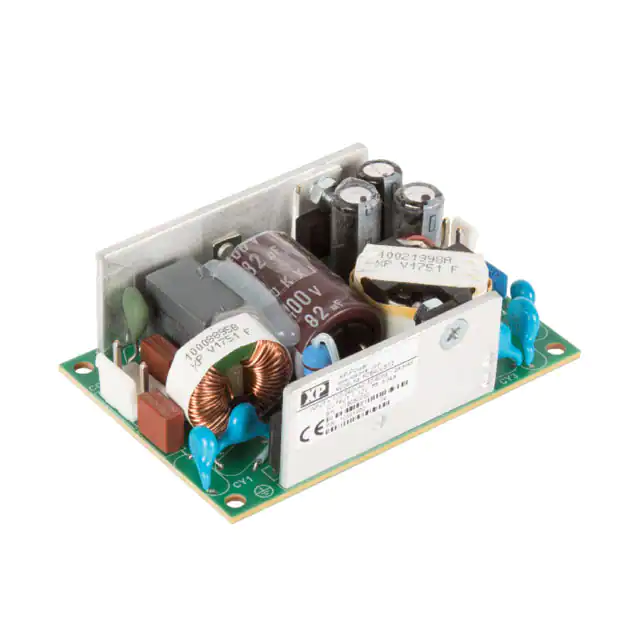

FCS40US36AC/DC CONVERTER 36V 40W |
47 |
|
![]() Datasheet |
FCS40 (40W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 36V | - | - | - | - | - | 1.11 A | - | - | - | - | - | 40W | Household Appliances, ITE (Commercial), Medical | 4 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
![]() |
FCS40US48AC/DC CONVERTER 48V 40W |
20 |
|
![]() Datasheet |
FCS40 (40W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 830 mA | - | - | - | - | - | 40W | Household Appliances, ITE (Commercial), Medical | 4 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
![]() |
VOF-65C-S48AC/DC CONVERTER 48V 65W |
30 |
|
![]() Datasheet |
VOF-65C (65W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 48V | - | - | - | - | - | 1.36 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
![]() |
LM75-20B24-CAC/DC CONVERTER 24V 77W |
14 |
|
![]() Datasheet |
LM75-20Bxx-C (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
Switching Power Supply ALRS12V12R5AAC/DC CONVERTER 12V 150W |
12 |
|
![]() Datasheet |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | - | ITE (Commercial) | 1.5 kV | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.42" H (110.0mm x 78.0mm x 36.1mm) |
