Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCS100US36AC/DC CONVERTER 36V 101W |
8 |
|
![]() Datasheet |
LCS100 (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 101W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
![]() |
PSK-30D-48-TAC/DC CONVERTER 48V 30W |
8 |
|
![]() Datasheet |
PSK-30D | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 630 mA | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial) | 4.2 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 3.78" L x 2.13" W x 1.46" H (96.1mm x 54.0mm x 37.1mm) |
![]() |

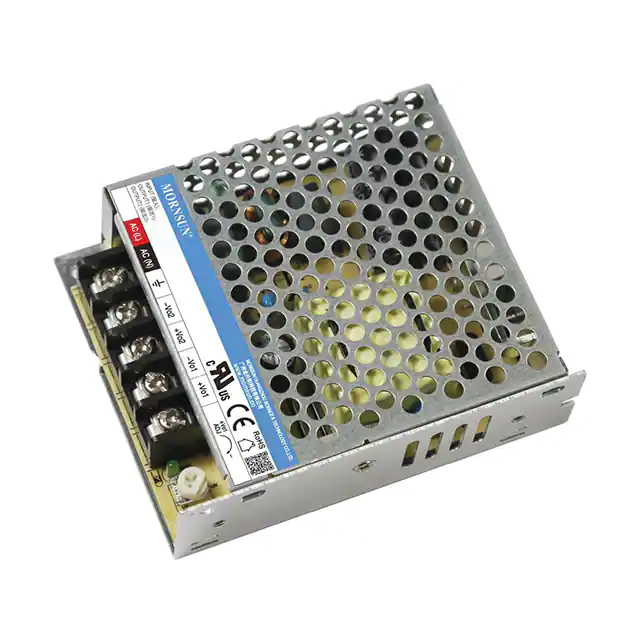

LM35-10D0524-10AC/DC CONVERTER 5V 24V 35W |
28 |
|
![]() Datasheet |
LM35-10Dxx (35W) | Box | Not For New Designs | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | 24V | - | - | - | - | 2.2 A | 1 A | - | - | - | - | 35W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM35-10D0512-10AC/DC CONVERTER 5V 12V 32W |
24 |
|
![]() Datasheet |
LM35-10Dxx (35W) | Box | Not For New Designs | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | 12V | - | - | - | - | 4 A | 1 A | - | - | - | - | 32W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
GTM43007-C6024-FW(R)AC/DC CONVERTER 24V 60W |
116 |
|
![]() Datasheet |
GTM43007-CWWVV-FW | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial), Medical | 4 kV | -10°C ~ 45°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.5mm) |
![]() |
CFM50S480-CAAC/DC CONVERTER 48V 50W |
10 |
|
![]() Datasheet |
CFM50S (50W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 1.04 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) |
![]() |

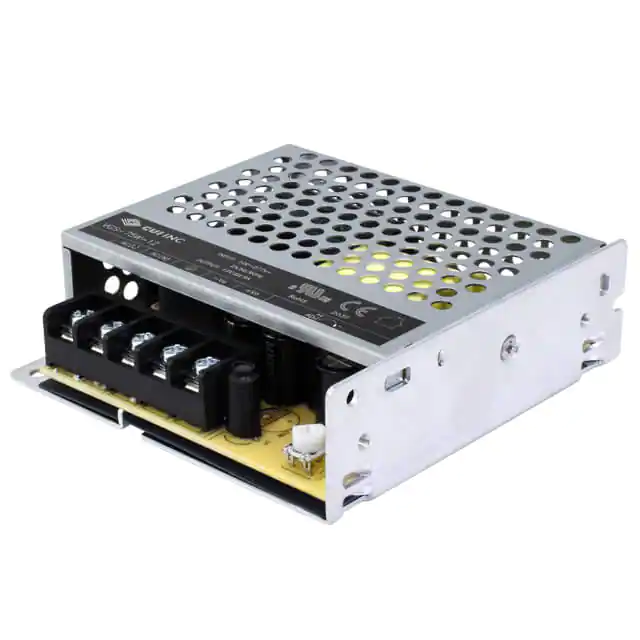

VGS-75W-24AC/DC CONVERTER 24V 76W |
6 |
|
![]() Datasheet |
VGS-75W (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 76W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
MTCC-1511AC/DC CONVERTER 5V +/-15V 15W |
11 |
|
![]() Datasheet |
MCA-15 (15W) | Bulk | Obsolete | Enclosed | 3 | 90 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 2.5 A | 100 mA | 100 mA | - | - | - | 15W | ITE (Commercial) | 3 kV | 0°C ~ 50°C | Adjustable Output, Universal Input | Chassis Mount | 3.96" L x 2.16" W x 1.00" H (100.6mm x 54.9mm x 25.4mm) |
![]() |
VGS-75W-48AC/DC CONVERTER 48V 76W |
39 |
|
![]() Datasheet |
VGS-75W (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 76W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |

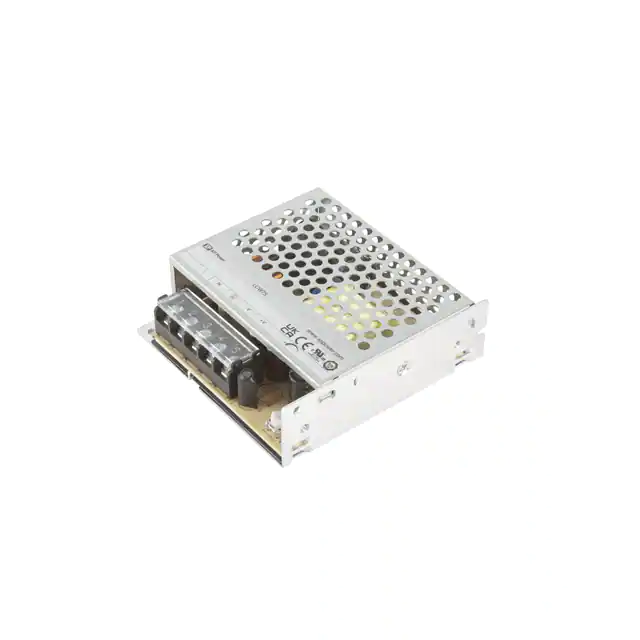

LCW75US48AC/DC CONVERTER 48V 77W |
11 |
|
![]() Datasheet |
LCW75 (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
AMES75-24S277NZAC/DC CONVERTER 24V 77W |
8 |
|
![]() Datasheet |
AMES75-277NZ (77W) | Box | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |

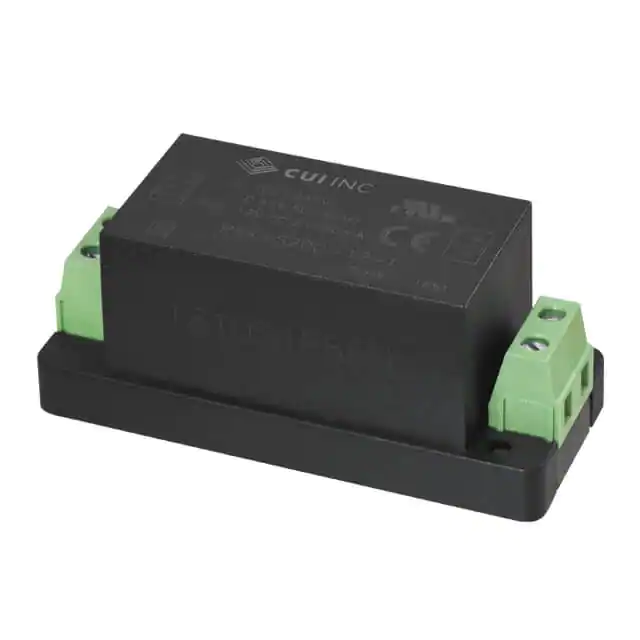

PSK-S20C-12-TAC/DC CONVERTER 12V 20W |
48 |
|
![]() Datasheet |
PSK-S20C (20W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 12V | - | - | - | - | - | 1.66 A | - | - | - | - | - | 20W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 1.27" H (76.00mm x 31.5mm x 32.3mm) |
![]() |
LFA15F-12-J1AC/DC CONVERTER 12V |
28 |
|
![]() Datasheet |
LFA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 3.44" L x 1.97" W x 0.87" H (87.4mm x 50.0mm x 22.1mm) |
![]() |
VGS-50B-12AC/DC CONVERTER 12V 50W |
60 |
|
![]() Datasheet |
VGS-50B (53W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 50W | ITE (Commercial) | 1.5 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
VGS-75W-15AC/DC CONVERTER 15V 75W |
75 |
|
![]() Datasheet |
VGS-75W (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
VGS-75W-12AC/DC CONVERTER 12V 72W |
24 |
|
![]() Datasheet |
VGS-75W (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 72W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
VGS-75C-36AC/DC CONVERTER 36V 76W |
24 |
|
![]() Datasheet |
VGS-75C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 36V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 76W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LCW75US36AC/DC CONVERTER 36V 76W |
11 |
|
![]() Datasheet |
LCW75 (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 36V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 76W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
PMC-24V075W1AAAC/DC CONVERTER 24V 75W |
19 |
|
![]() Datasheet |
PMC (75W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.125 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.04" L x 3.82" W x 1.50" H (128.0mm x 97.0mm x 38.0mm) |
![]() |
LM75-23B15-QAC/DC CONVERTER 15V 75W |
27 |
|
![]() Datasheet |
LM75-23Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
