Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LM75-20B15AC/DC CONVERTER 15V 75W |
22 |
|
![]() Datasheet |
LM75-20Bxx (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
UHD160-1000AC/DC CONVERTER 5V 160W |
0 |
|
![]() Datasheet |
UHD160 (46-160W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 160W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.08" H (101.6mm x 50.8mm x 27.4mm) |
![]() |
VGS-35W-24AC/DC CONVERTER 24V 36W |
16 |
|
![]() Datasheet |
VGS-35W (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
RAC05-24SC/WAC/DC CONVERTER 24V 5W |
20 |
|
![]() Datasheet |
POWERLINE RAC05-C (5W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 210 mA | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -25°C ~ 75°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 2.00" L x 1.00" W x 0.62" H (50.8mm x 25.4mm x 15.7mm) |
![]() |
AMES35-24S277NZAC/DC CONVERTER 24V 36W |
6 |
|
![]() Datasheet |
AMES35-277NZ (36W) | Box | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
LM150-23B54R2-QAC/DC CONVERTER 54V 151W |
25 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 54V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 151W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM150-23B54R2-CAC/DC CONVERTER 54V 151W |
19 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 54V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 151W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM150-23B15R2-QAC/DC CONVERTER 15V 150W |
17 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM150-23B24R2-CAC/DC CONVERTER 24V 156W |
16 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM150-23B12R2-CAC/DC CONVERTER 12V 150W |
14 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM150-23B12R2-QAC/DC CONVERTER 12V 150W |
12 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM150-23B24R2-QAC/DC CONVERTER 24V 156W |
9 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
Switching Power Supply ALRS12V10ATAC/DC CONVERTER 12V 120W |
24 |
|
![]() Datasheet |
- | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W | ITE (Commercial) | 1.5 kV | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 7.80" L x 3.82" W x 1.63" H (198.0mm x 97.0mm x 41.5mm) |
![]() |
Switching Power Supply ALRS24V5ATAC/DC CONVERTER 24V 120W |
14 |
|
![]() Datasheet |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W | ITE (Commercial) | 1.5 kV | -10°C ~ 60°C | Adjustable Output, IP20, Universal Input | Chassis Mount | 7.80" L x 3.86" W x 1.65" H (198.1mm x 98.0mm x 41.9mm) |
![]() |
LM50-20B24-QAC/DC CONVERTER 24V 53W |
15 |
|
![]() Datasheet |
LM50-20Bxx-Q (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 53W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
LM75-10A0512-40AC/DC CONVERTER 5V 12V 68W |
11 |
|
![]() Datasheet |
LM75-10Axx (75W) | Box | Not For New Designs | Enclosed | 2 | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | 12V | - | - | - | - | 4 A | 4 A | - | - | - | - | 68W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.81" H (129.0mm x 97.0mm x 46.0mm) |
![]() |
LM75-10A0512-30AC/DC CONVERTER 5V 12V 71W |
9 |
|
![]() Datasheet |
LM75-10Axx (75W) | Box | Not For New Designs | Enclosed | 2 | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | 12V | - | - | - | - | 7 A | 3 A | - | - | - | - | 71W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.81" H (129.0mm x 97.0mm x 46.0mm) |
![]() |
LM75-10A0524-20AC/DC CONVERTER 5V 24V 73W |
8 |
|
![]() Datasheet |
LM75-10Axx (75W) | Box | Not For New Designs | Enclosed | 2 | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | 24V | - | - | - | - | 5 A | 2 A | - | - | - | - | 73W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.81" H (129.0mm x 97.0mm x 46.0mm) |
![]() |

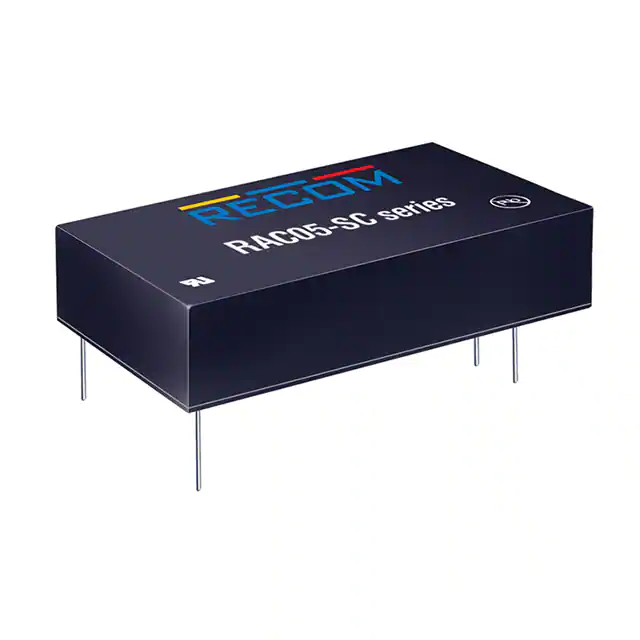

RAC05-15SC/WAC/DC CONVERTER 15V 5W |
16 |
|
![]() Datasheet |
POWERLINE RAC05-C (5W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 340 mA | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -25°C ~ 75°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 2.00" L x 1.00" W x 0.62" H (50.8mm x 25.4mm x 15.7mm) |
![]() |
LO120-20B15MUAC/DC CONVERTER 15V 84W |
24 |
|
![]() Datasheet |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) |
