Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
VGS-50C-48AC/DC CONVERTER 48V 53W |
49 |
|
![]() Datasheet |
VGS-50C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 53W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
VGS-50C-36AC/DC CONVERTER 36V 52W |
25 |
|
![]() Datasheet |
VGS-50C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 36V | - | - | - | - | - | 1.45 A | - | - | - | - | - | 52W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
RAC06-05SC/WAC/DC CONVERTER 5V 6W |
40 |
|
![]() Datasheet |
POWERLINE RAC06-C (6W) | Bag | Obsolete | Enclosed | 1 | 80 ~ 264 VAC, 115 ~ 370 VDC | 5V | - | - | - | - | - | 1.2 A | - | - | - | - | - | 6W | ITE (Commercial) | 3 kV | -25°C ~ 75°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 2.11" L x 1.09" W x 0.62" H (53.5mm x 27.8mm x 15.7mm) |
![]() |
LM75-20B36AC/DC CONVERTER 36V 76W |
18 |
|
![]() Datasheet |
LM75-20Bxx (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 36V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 76W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
LM75-20B05AC/DC CONVERTER 5V 70W |
51 |
|
![]() Datasheet |
LM75-20Bxx (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | - | - | - | - | - | 14 A | - | - | - | - | - | 70W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |

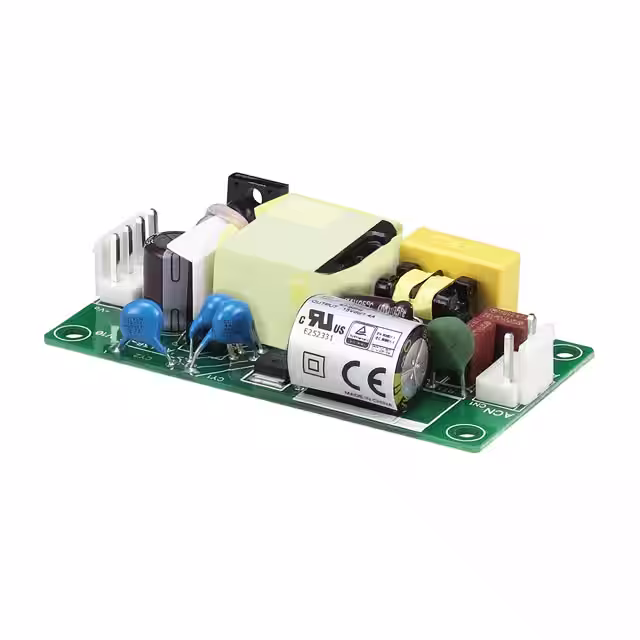

CFM21M150-TAC/DC CONVERTER 15V 21W |
9 |
|
![]() Datasheet |
CFM21M (20W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 1.4 A | - | - | - | - | - | 21W | ITE (Commercial), Medical | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 1.60" W x 0.76" H (76.2mm x 40.6mm x 19.2mm) |
![]() |
VGS-50W-48AC/DC CONVERTER 48V 52W |
41 |
|
![]() Datasheet |
VGS-50W (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 52W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
GTM43007-A4507.5-FWRAC/DC CONVERTER 7.5V 45W |
94 |
|
![]() Datasheet |
GTM43007-AWWVV-FW | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 7.5V | - | - | - | - | - | 6 A | - | - | - | - | - | 45W | Household Appliances, ITE (Commercial), Medical | 4 kV | -10°C ~ 45°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.93" H (76.2mm x 50.8mm x 23.6mm) |
![]() |
LM50-23B36-CAC/DC CONVERTER 36V 52W |
6 |
|
![]() Datasheet |
LM50-23Bxx-C (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 36V | - | - | - | - | - | 1.45 A | - | - | - | - | - | 52W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
LM50-23B36-QAC/DC CONVERTER 36V 52W |
6 |
|
![]() Datasheet |
LM50-23Bxx-Q (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 36V | - | - | - | - | - | 1.45 A | - | - | - | - | - | 52W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
LM100-23B24AC/DC CONVERTER 24V 108W |
30 |
|
![]() Datasheet |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 108W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
![]() |
GTM43007-B6048-FW(R)AC/DC CONVERTER 48V 60W |
85 |
|
![]() Datasheet |
GTM43007-BWWVV-FW | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial), Medical | 4 kV | -10°C ~ 45°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.89" H (101.6mm x 50.8mm x 22.5mm) |
![]() |
LM100-23B12AC/DC CONVERTER 12V 102W |
89 |
|
![]() Datasheet |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
![]() |
VGS-35W-5AC/DC CONVERTER 5V 35W |
97 |
|
![]() Datasheet |
VGS-35W (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 7 A | - | - | - | - | - | 35W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|

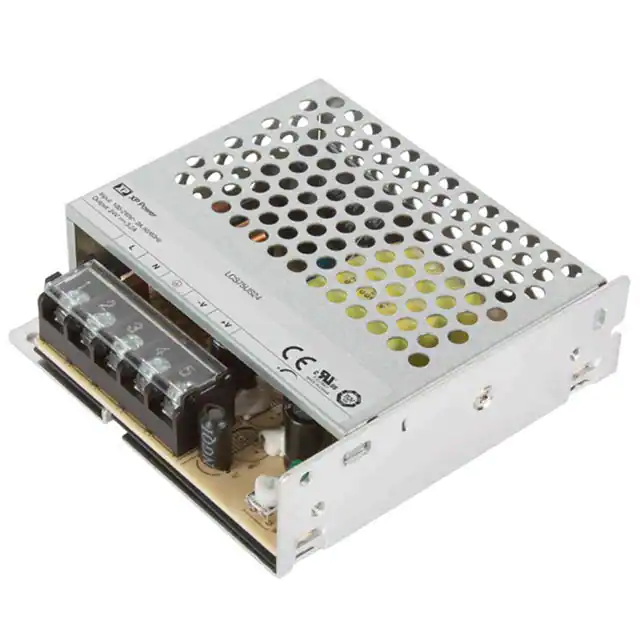

LCS75US12AC/DC CONVERTER 12V 72W |
41 |
|
![]() Datasheet |
LCS75 (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 72W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
LCS75US36AC/DC CONVERTER 36V 76W |
23 |
|
![]() Datasheet |
LCS75 (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 36V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 76W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
VGS-50W-15AC/DC CONVERTER 15V 51W |
52 |
|
![]() Datasheet |
VGS-50W (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 51W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
VGS-50W-36AC/DC CONVERTER 36V 52W |
51 |
|
![]() Datasheet |
VGS-50W (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 36V | - | - | - | - | - | 1.45 A | - | - | - | - | - | 52W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
VGS-50W-12AC/DC CONVERTER 12V 50W |
10 |
|
![]() Datasheet |
VGS-50W (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|

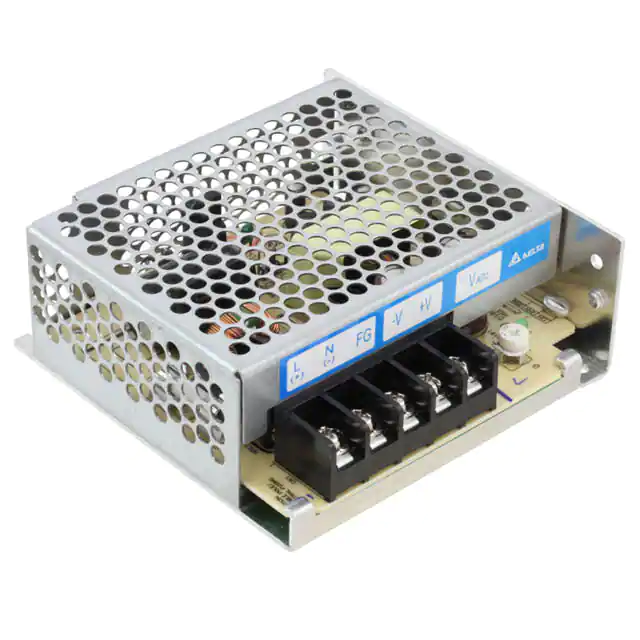

PMT-24V35W1AAAC/DC CONVERTER 24V 35W |
76 |
|
![]() Datasheet |
PMT (35W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.46 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.86" L x 3.86" W x 1.50" H (98.0mm x 98.0mm x 38.0mm) |
