RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

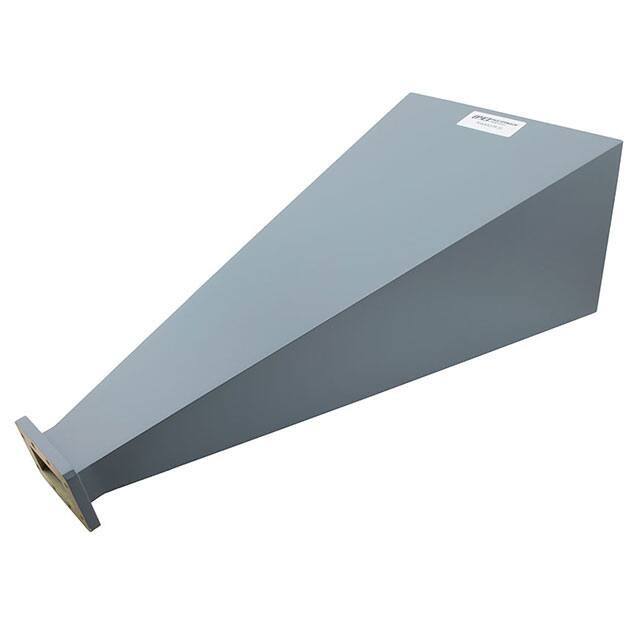

PEWAN159-20SFWR159 GAIN HRN 4.9-7.05GHZ 20DBI Pasternack |
4 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 5.769" (146.53mm) | General Purpose |
|
|
PEWAN102-20SFWR102 GAIN HRN 7-11GHZ 20DBI Pasternack |
2 |
|
Datasheet |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.25 | - | 20dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 3.701" (94.01mm) | - |
|
|
PEWAN075-20ELSFWR75 GAIN HRN 10-15GHZ 20DBI Pasternack |
18 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.721" (69.11mm) | General Purpose |
|
|
PEWAN062-20SFWR62 GAIN HRN 12.4-18GHZ 20DBI Pasternack |
10 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
|
PEWAN062-20ELSFWR62 GAIN HRN 12.4-18GHZ 20DBI Pasternack |
10 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
|
PEWAN062-20NFWR62 GAIN HRN 12.4-18GHZ 20DBI Pasternack |
10 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
|
PEWAN062-20NMWR62 GAIN HRN 12.4-18GHZ 20DBI Pasternack |
7 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Male | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
|
PE9855B-15WR-75 Waveguide Standard Gain Ho Pasternack |
7 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 4.690" (119.13mm) | General Purpose |
|
PEWAN159-20WR159 GAIN HORN 4.9-7.05GHZ 20DB Pasternack |
6 |
|
Datasheet |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 5.9GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN137-20NFWR137 GAIN HRN 5.85-8.2GHZ 20DBI Pasternack |
7 |
|
Datasheet |
- | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 4.965" (126.10mm) | General Purpose |
