RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN112-10SFWR112 GAIN HRN 7.05-10GHZ 10DBI Pasternack |
2 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.369" (34.77mm) | General Purpose |
|
|
PEWAN137-10NFWR137 GAIN HRN 5.85-8.2GHZ 10DBI Pasternack |
5 |
|
Datasheet |
- | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 1.673" (42.50mm) | General Purpose |
|
PEWAN229-15NFWR229 GAIN HRN 3.3-4.9GHZ 15DBI Pasternack |
3 |
|
Datasheet |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 9.975" (253.37mm) | - |
|
PEWAN187-10NFWR187 GAIN HORN 3.95-5.85GHZ 10D Pasternack |
8 |
|
Datasheet |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 5.266" (133.76mm) | - |
|
|
PE9855B-10WR-75 Waveguide Standard Gain Ho Pasternack |
7 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.490" (37.85mm) | General Purpose |
|
|
PEWAN159-10SFWR159 GAIN HRN 4.9-7.05GHZ 10DBI Pasternack |
4 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.940" (49.28mm) | General Purpose |
|
|
PE9855B-20WR-75 Standard Waveguide Horn Wi Pasternack |
11 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 8.000" (203.20mm) | General Purpose |
|
|
PEWAN112-10NFWR112 GAIN HRN 7.05-10GHZ 10DBI Pasternack |
4 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.369" (34.77mm) | General Purpose |
|

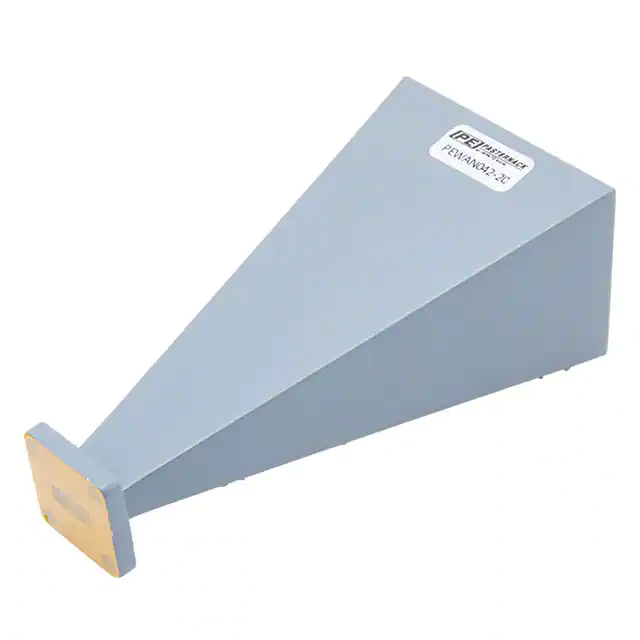

PEWAN042-20WR42 GAIN HORN 18-26.5GHZ 20DBI Pasternack |
13 |
|
Datasheet |
- | Bulk | Active | Waveguide | K Band (18GHz ~ 27GHz) | 22.6GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN137-15NFWR137 GAIN HRN 5.85-8.2GHZ 15DBI Pasternack |
4 |
|
Datasheet |
- | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 2.669" (67.80mm) | General Purpose |
