RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE9858B-10-CPRGWR-112 Waveguide Standard Gain H Pasternack |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 2.240" (56.90mm) | General Purpose |
|
|
PEWAN159-20NFWR159 GAIN HRN 4.9-7.05GHZ 20DBI Pasternack |
6 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 5.769" (146.53mm) | General Purpose |
|

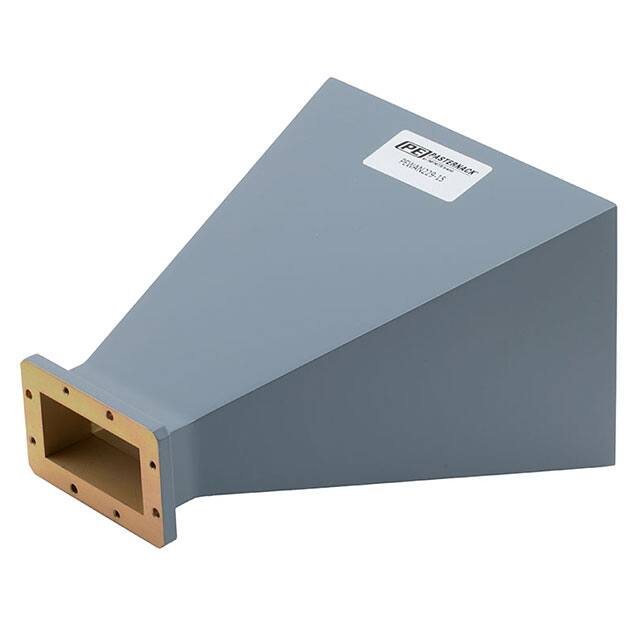

PEWAN229-15WR229 GAIN HORN 3.3-4.9GHZ 15DBI Pasternack |
3 |
|
Datasheet |
- | Bulk | Active | Waveguide | S-C Band (2GHz ~ 8GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9851B-15WR-34 Waveguide Standard Gain Ho Pasternack |
6 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 1.960" (49.78mm) | General Purpose |
|
|
PEWAN062-20ELNFWR62 GAIN HRN 12.4-18GHZ 20DBI Pasternack |
4 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|

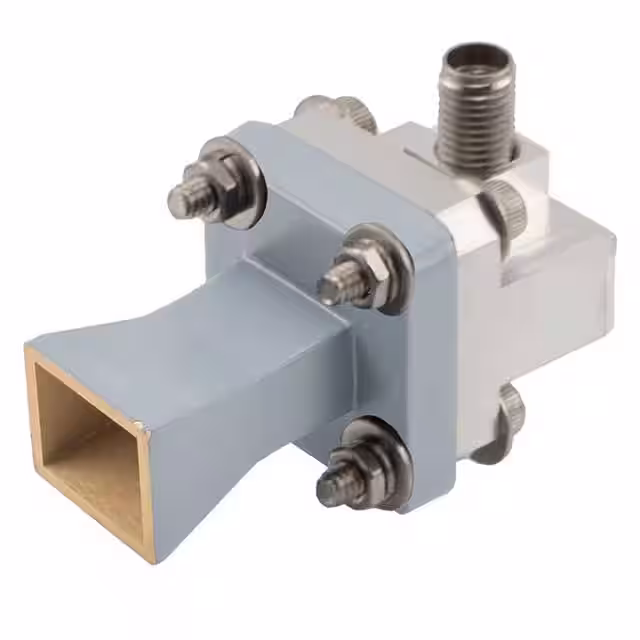

PEWAN034-10KFWR34 GAIN HORN 22-33GHZ 10DBI Pasternack |
3 |
|
Datasheet |
- | Case | Active | - | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.4 | - | 10dBi | - | - | 2.92mm Female | - | - | - | Waveguide Flange Mount | 2.084" (52.93mm) | - |
|
|
PEWAN102-15ELNFWR102 GAIN HRN 7-11GHZ 15DBI Pasternack |
2 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.25 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.989" (50.52mm) | General Purpose |
|
|
PEWAN090-20SMWR42 GAIN HRN 8.2-12.4GHZ 20DBI Pasternack |
6 |
|
Datasheet |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Waveguide Mount | 3.265" (82.93mm) | General Purpose |
|
|
PE9861B-15WR-187 Standard Gain Horn Antenn Pasternack |
5 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 10.030" (254.76mm) | General Purpose |
|
|
PEWAN102-20ELNFWR102 GAIN HRN 7-11GHZ 20DBI Pasternack |
2 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 3.701" (94.01mm) | General Purpose |
