RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

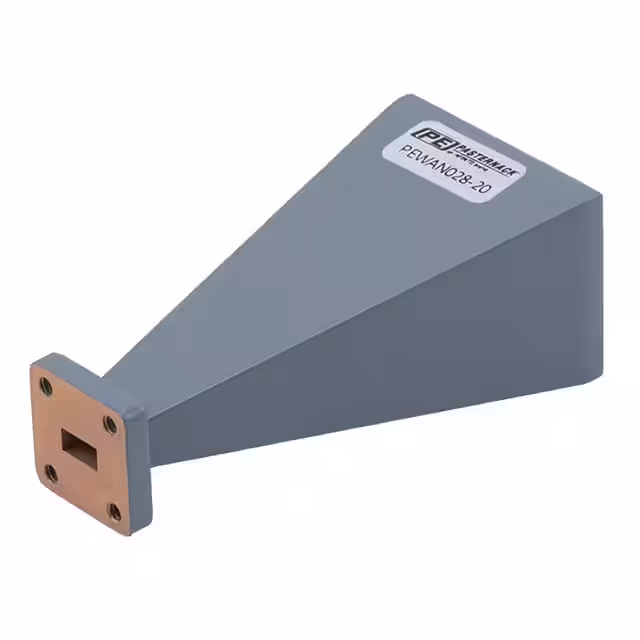

PEWAN028-20WR28 GAIN HORN 26.5-40GHZ 20DBI Pasternack |
19 |
|
Datasheet |
- | Bulk | Active | Waveguide | Ka Band (27GHz ~ 40GHz) | 33.3GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|

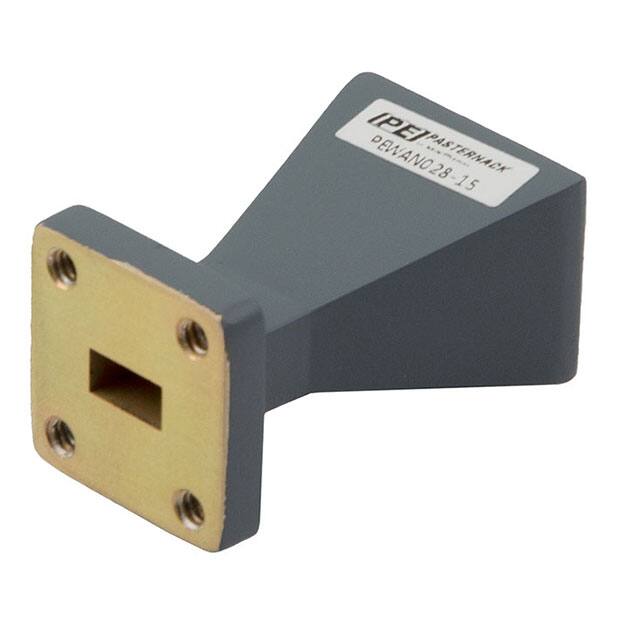

PEWAN028-15WR28 GAIN HORN 26.5-40GHZ 15DBI Pasternack |
13 |
|
Datasheet |
- | Bulk | Active | Waveguide | Ka Band (27GHz ~ 40GHz) | 33.3GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PE9860B-15WR-159 Waveguide Standard Gain H Pasternack |
6 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 9.468" (240.49mm) | General Purpose |
|
|
PEANED10032 Folded Dipole antenna, 138 MHz Pasternack |
5 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 156MHz | 138MHz ~ 174MHz | Module | 1 | 1.8 | - | 7.6dBi | 100 W | - | N Type Female | - | - | - | - | 114.173" (290.00cm) | General Purpose |
|
|
PEANED10022 Folded Dipole antenna,138 MHz Pasternack |
4 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 156MHz | 138MHz ~ 174MHz | Module | 1 | 1.8 | - | 7dBi | 100 W | - | N Type Female | - | - | - | - | 114.173" (290.00cm) | General Purpose |
|
|
PE9859B-10WR-137 Waveguide Standard Gain H Pasternack |
16 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 3.530" (89.66mm) | General Purpose |
|
|
PE9851B-10WR-34 Waveguide Standard Gain Ho Pasternack |
7 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.050" (26.67mm) | General Purpose |
|
|
PEWAN102-10ELNFWR102 GAIN HRN 7-11GHZ 10DBI Pasternack |
2 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.685" (42.80mm) | General Purpose |
|
|
PEWAN112-10ELNFWR112 GAIN HRN 7.05-10GHZ 10DBI Pasternack |
7 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.369" (34.77mm) | General Purpose |
|
|
PE9852B-10WR-42 Waveguide Standard Gain Ho Pasternack |
6 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 22.25GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.250" (31.75mm) | General Purpose |
