RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

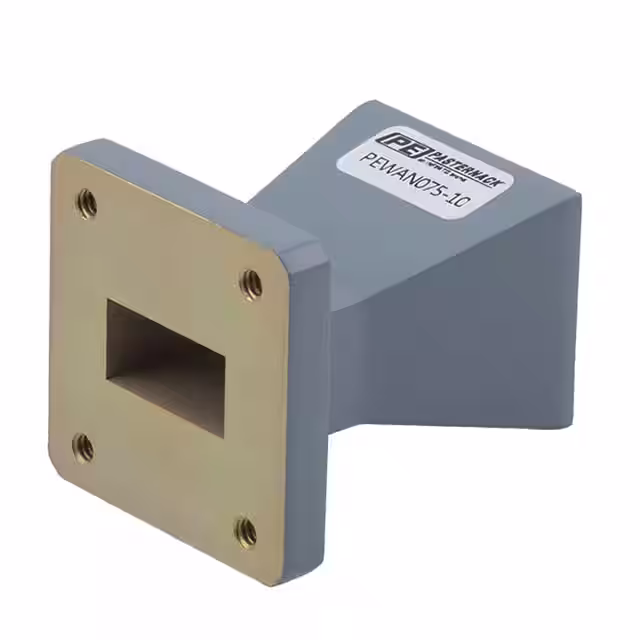

PEWAN075-10WR75 GAIN HORN 10-15GHZ 10DBI Pasternack |
6 |
|
Datasheet |
- | Bulk | Active | Waveguide | X-Ku Band (8GHz ~ 18GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|

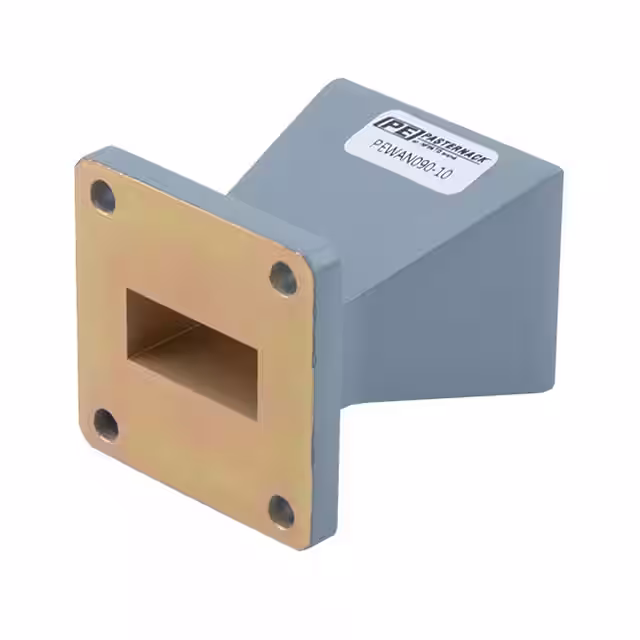

PEWAN090-10WR90 GAIN HORN 8.2-12.4GHZ 10DBI Pasternack |
5 |
|
Datasheet |
- | Bulk | Active | Waveguide | X Band (8GHz ~ 12GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|

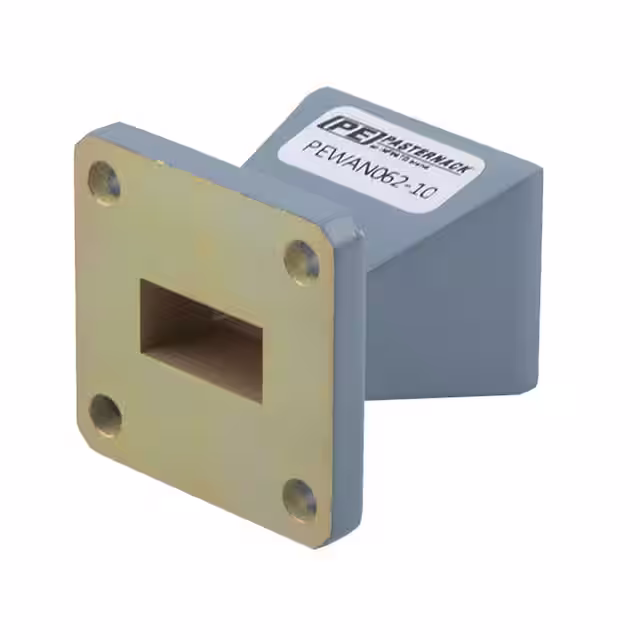

PEWAN062-10WR62 GAIN HORN 12.4-18GHZ 10DBI Pasternack |
15 |
|
Datasheet |
- | Bulk | Active | Waveguide | Ku Band (12GHz ~ 18GHz) | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN051-15WR51 GAIN HORN 15-22GHZ 15DBI Pasternack |
5 |
|
Datasheet |
- | Bulk | Active | Waveguide | Ku-K Band (12GHz ~ 27GHz) | 18.3GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|

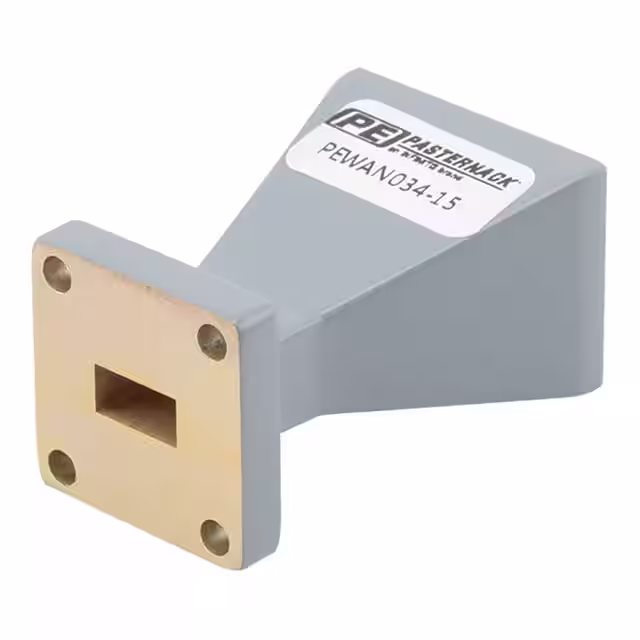

PEWAN034-15WR34 GAIN HORN 22-33GHZ 15DBI Pasternack |
10 |
|
Datasheet |
- | Bulk | Active | Waveguide | K-Ka Band (18GHz ~ 40GHz) | 27.4GHz | 22GHz ~ 33GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PE9853B-10WR-51 Waveguide Standard Gain Ho Pasternack |
7 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.420" (36.07mm) | General Purpose |
|
|
PEWAN1132WR-34 Waveguide Probe Antenna Op Pasternack |
3 |
|
Datasheet |
- | Retail Package | Active | Cellular | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 2 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 3.400" (86.36mm) | 5G |
|
|
PEWAN1129WR-19 Waveguide Probe Antenna Op Pasternack |
3 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 50GHz | 40GHz ~ 60GHz | Horn | 1 | 2 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 2.000" (50.80mm) | General Purpose |
|
|
PEWAN1127WR-12 Waveguide Probe Antenna Op Pasternack |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 75GHz | 60GHz ~ 90GHz | Horn | 1 | 2 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 1.200" (30.48mm) | General Purpose |
|
|
PEWAN1125WR-8 Waveguide Probe Antenna, 90 Pasternack |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 115GHz | 90GHz ~ 140GHz | Horn | 1 | 2 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
