Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

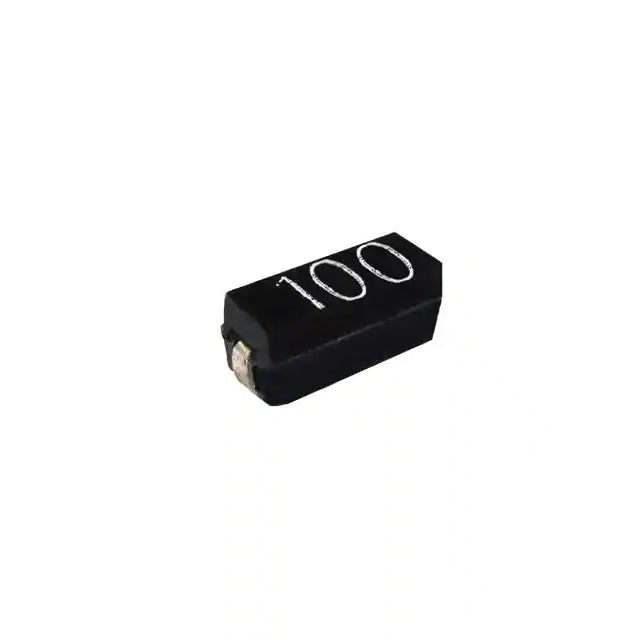

CTR1330F-1R2KSMD MOLDED INDUCTOR |
20 |
|
Datasheet |
CTR1330F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±10% | 590 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | SMD | 0.313" L x 0.115" W (7.94mm x 2.93mm) | 0.145" (3.68mm) |
|
|
CTR1330F-100KSMD MOLDED INDUCTOR |
20 |
|
Datasheet |
CTR1330F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±10% | 130 mA | - | Unshielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | SMD | 0.313" L x 0.115" W (7.94mm x 2.93mm) | 0.145" (3.68mm) |
|
|
CTR1330F-120KSMD MOLDED INDUCTOR |
20 |
|
Datasheet |
CTR1330F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 12 µH | ±10% | 155 mA | - | Unshielded | 2.7Ohm Max | 45 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | SMD | 0.313" L x 0.115" W (7.94mm x 2.93mm) | 0.145" (3.68mm) |
|

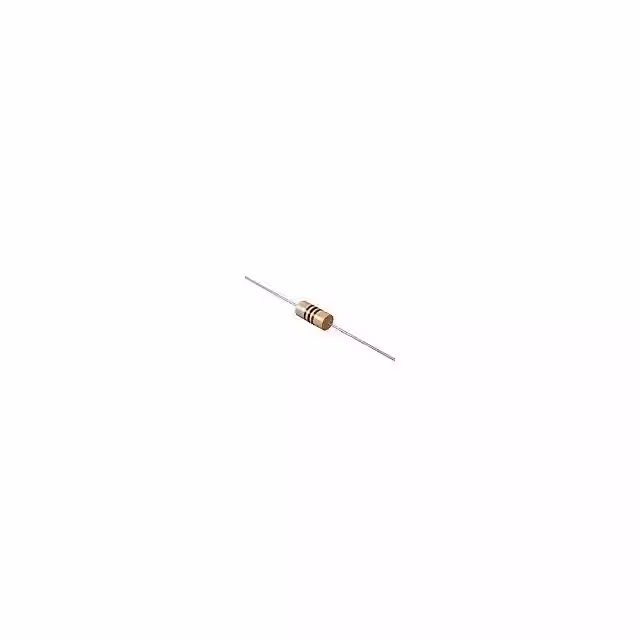

CTS2F-101K100UH AXL MOLDED SHLD INDUCTOR |
6 |
|
Datasheet |
CTS2F | Axial | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±10% | 280 mA | - | Shielded | 4.1Ohm Max | 43 @ 2.5MHz | 15.2MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.130" Dia x 0.331" L (3.30mm x 8.40mm) | - |
|
CTB80F-250KHIGH CURRENT POWER TOROID |
10 |
|
Datasheet |
ctb80f | - | Bulk | Active | Toroidal | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XFHCL2814H-330KFIXED IND 33UH 5.9A 2.82 MOHM SM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±15% | - | - | Shielded | 2.01mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814H-4R7KFIXED IND 4.7UH 50.1A 2.01 MOHM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±15% | - | - | Shielded | 2.01mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814H-100KFIXED IND 10UH 23.4A 2.01 MOHM S |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±15% | - | - | Shielded | 2.01mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814H-3R3KFIXED IND 3.3UH 68.4A 2.01 MOHM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±15% | - | - | Shielded | 2.01mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814H-2R2KFIXED IND 2.2UH 100A 2.01 MOHM S |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±15% | - | - | Shielded | 2.01mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814H-220KFIXED IND 22UH 9.6A 2.01 MOHM SM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±15% | - | - | Shielded | 2.01mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814H-6R8KFIXED IND 6.8UH 36.2A 2.01 MOHM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±15% | - | - | Shielded | 2.01mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814H-150KFIXED IND 15UH 15.2A 2.01 MOHM S |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±15% | - | - | Shielded | 2.01mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|

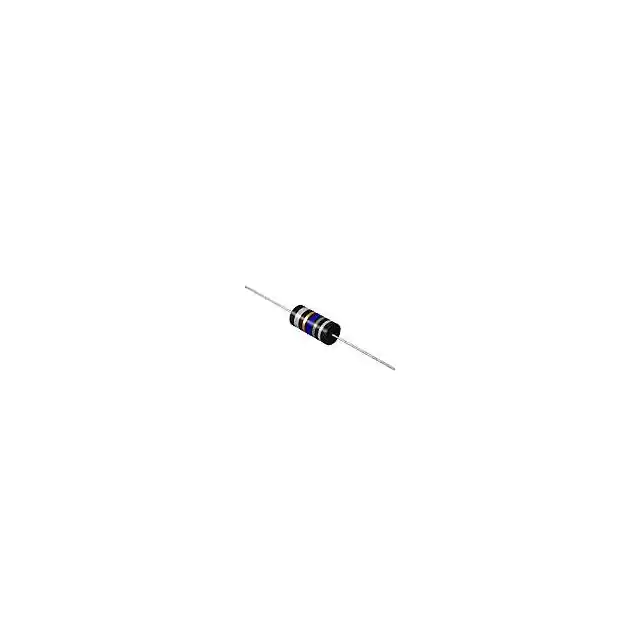

CTS3F-821K820UH AXL MOLDED SHLD INDUCTOR |
13 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 820 µH | ±10% | 80 mA | - | Shielded | 13Ohm Max | 57 @ 790kHz | 4.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
|
CTS3F-181J180UH AXL MOLDED SHLD INDUCTOR |
10 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 180 µH | ±5% | 135 mA | - | Shielded | 4.4Ohm Max | 60 @ 790kHz | 8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
|
CTS3F-180J18UH AXL MOLDED SHLD INDUCTOR |
10 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 18 µH | ±5% | 300 mA | - | Shielded | 890mOhm Max | 45 @ 2.5MHz | 45MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
|
CTS3F-333K33000UH AXIAL SHIELDD INDUCTOR |
6 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 33 mH | ±10% | 15 mA | - | Shielded | 343Ohm Max | 27 @ 79kHz | 190kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
|
CTS3F-182J1800UH AXL MOLDED SHLD INDUCTOR |
4 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 1.8 mH | ±5% | 50 mA | - | Shielded | 30Ohm Max | 47 @ 250kHz | 1MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
|
CTS3F-332J3300UH AXL MOLDED SHLD INDUCTOR |
4 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 3.3 mH | ±5% | 40 mA | - | Shielded | 53Ohm Max | 43 @ 250kHz | 840kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
|
CTS3F-220J22UH AXL MOLDED SHLD INDUCTOR |
2 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±5% | 290 mA | - | Shielded | 960mOhm Max | 46 @ 2.5MHz | 40MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
