Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTEP105LF-R36N0.36UH SMD SHLDED POWER INDUCTOR |
5 |
|
Datasheet |
CTEP105LF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 360 nH | ±30% | 21 A | 24A | Shielded | 2.6mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|

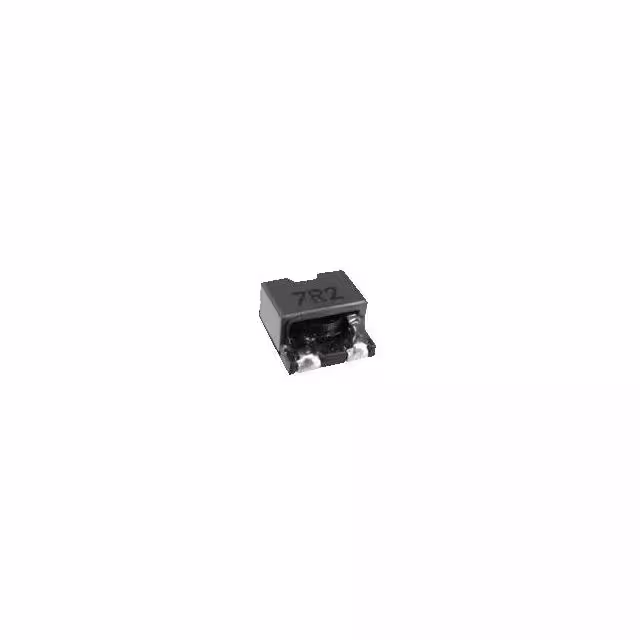

CTEP105LF-7R2M7.2UH SMD SHLDED POWER INDUCTOR |
5 |
|
Datasheet |
CTEP105LF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 7.2 µH | ±20% | 7.8 A | 5.3A | Shielded | 18mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
CTEP105LF-3R2M3.2UH SMD SHLDED POWER INDUCTOR |
5 |
|
Datasheet |
CTEP105LF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.2 µH | ±20% | 10.5 A | 7.8A | Shielded | 8mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
CTEP105SF-3R2M3.2UH SMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTEP105SF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.2 µH | ±20% | 7.4 A | - | Shielded | 12.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|

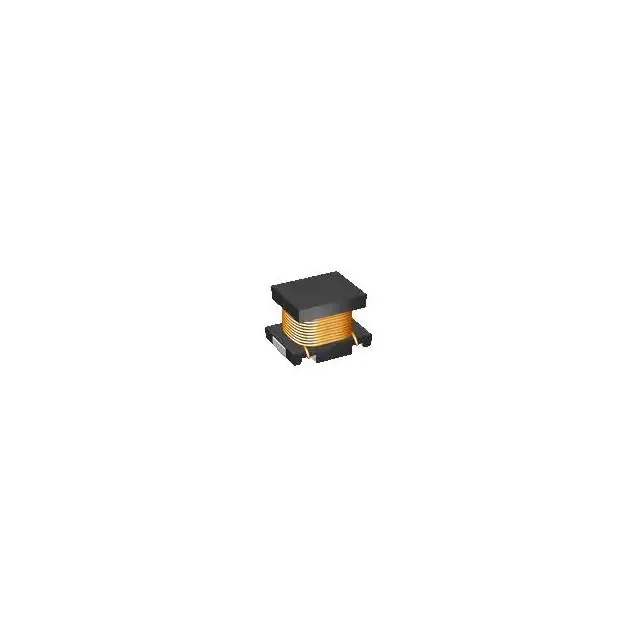

CTLQ2220CF-2R2M2.2UH SMD UNSHLD POWER INDUCTOR |
20 |
|
Datasheet |
CTLQ2220CF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 3.2 A | - | Unshielded | 41mOhm Max | - | 80MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
CTLQ2220CF-681MIND POWER SHIELDED 680UH SMD |
10 |
|
Datasheet |
CTLQ2220CF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 190 mA | - | Unshielded | 11.34Ohm Max | - | 1.9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
CTLQ2220CF-102M1MH SMD UNSHLD POWER INDUCTOR |
10 |
|
Datasheet |
CTLQ2220CF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 150 mA | - | Unshielded | 14.42Ohm Max | - | 1.7MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
CTLQ2220CF-472MIND POWER SHIELDED 4700UH SMD |
9 |
|
Datasheet |
CTLQ2220CF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 mH | ±20% | 70 mA | - | Unshielded | 61.04Ohm Max | - | 800kHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
XFHCL2814L-6R8KFIXED IND 6.8UH 27.8A 1.62 MOHM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±15% | - | - | Shielded | 1.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814L-150KFIXED IND 15UH 11A 1.62 MOHM SMD |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±15% | - | - | Shielded | 1.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814L-4R7KFIXED IND 4.7UH 39A 1.62 MOHM SM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±15% | - | - | Shielded | 1.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814L-2R2KFIXED IND 2.2UH 100A 1.62 MOHM S |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±15% | - | - | Shielded | 1.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814L-330KFIXED IND 33UH 3.3A 2.01 MOHM SM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±15% | - | - | Shielded | 1.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814L-100KFIXED IND 10UH 17.6A 1.62 MOHM S |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±15% | - | - | Shielded | 1.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814L-220KFIXED IND 22UH 6.8A 1.62 MOHM SM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±15% | - | - | Shielded | 1.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814L-3R3KFIXED IND 3.3UH 57A 1.62 MOHM SM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±15% | - | - | Shielded | 1.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.827" W (27.90mm x 21.00mm) | 0.560" (14.22mm) |
|
|
XFHCL2814L-1R5KFIXED IND 1.5UH 100A 1.62 MOHM S |
24 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CTFCF-2R5K2.5UH POWER INDUCTOR |
3 |
|
Datasheet |
CTFCF | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 2.5 µH | ±10% | 4.1 A | - | Unshielded | 30mOhm Max | 40 @ 7.9MHz | - | - | -20°C ~ 100°C | 7.9 MHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.031" (26.20mm) |
|
|
CTFCF-2R7K2.7UH POWER INDUCTOR |
3 |
|
Datasheet |
CTFCF | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 2.7 µH | ±10% | 4 A | - | Unshielded | 30mOhm Max | 43 @ 7.9MHz | - | - | -20°C ~ 100°C | 7.9 MHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.031" (26.20mm) |
|
CT8645F-101-TVHIGH CURRENT TOROID INDUCTOR |
3 |
|
Datasheet |
ct8645f | - | Bulk | Active | Toroidal | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
