Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTS3F-103K100UH AXIAL SHIELDED INDUCTOR |
1 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 10 mH | ±10% | 24 mA | - | Shielded | 137Ohm Max | 39 @ 250kHz | 470kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
XFHCL2817H-330KFIXED IND 33UH 9.6A 2.82 MOHM SM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±15% | - | - | Shielded | 2.82mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.772" W (27.90mm x 19.60mm) | 0.655" (16.64mm) |
|
|
XFHCL2817H-150KFIXED IND 15UH 21.9A 2.82 MOHM S |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±15% | - | - | Shielded | 2.82mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.772" W (27.90mm x 19.60mm) | 0.655" (16.64mm) |
|
|
XFHCL2817H-3R3KFIXED IND 3.3UH 93.6A 2.82 MOHM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±15% | - | - | Shielded | 2.82mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.772" W (27.90mm x 19.60mm) | 0.655" (16.64mm) |
|
|
XFHCL2817H-100KFIXED IND 10UH 32.1A 2.82 MOHM S |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±15% | - | - | Shielded | 2.82mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.772" W (27.90mm x 19.60mm) | 0.655" (16.64mm) |
|
|
XFHCL2817H-220KFIXED IND 22UH 15A 2.82 MOHM SMD |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±15% | - | - | Shielded | 2.82mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.772" W (27.90mm x 19.60mm) | 0.655" (16.64mm) |
|
|
XFHCL2817H-4R7KFIXED IND 4.7UH 62.4A 2.82 MOHM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±15% | - | - | Shielded | 2.82mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.772" W (27.90mm x 19.60mm) | 0.655" (16.64mm) |
|
|
XFHCL2817H-6R8KFIXED IND 6.8UH 45.9A 2.82 MOHM |
24 |
|
Datasheet |
XFHCL28xx | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±15% | - | - | Shielded | 2.82mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.772" W (27.90mm x 19.60mm) | 0.655" (16.64mm) |
|
|
CTMMP6826AF-330MSMD Shielded Power Inductor |
20 |
|
Datasheet |
- | - | Bulk | Active | - | - | 33 µH | ±20% | 15 A | - | Shielded | 38mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.681" L x 0.665" W (17.30mm x 16.90mm) | 0.264" (6.70mm) |
|
|
CTMMP6826AF-8R2MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 8.2 µH | ±20% | 25 A | - | Shielded | 9.6mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.681" L x 0.665" W (17.30mm x 16.90mm) | 0.264" (6.70mm) |
|
|
CTMMP6826AF-5R6MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 5.6 µH | ±20% | 40 A | - | Shielded | 5.8mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.681" L x 0.665" W (17.30mm x 16.90mm) | 0.264" (6.70mm) |
|
CTCDEP147LF-R50NSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTCDEP147LF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 500 nH | ±30% | 24 A | 39.6A | Shielded | 2.1mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|

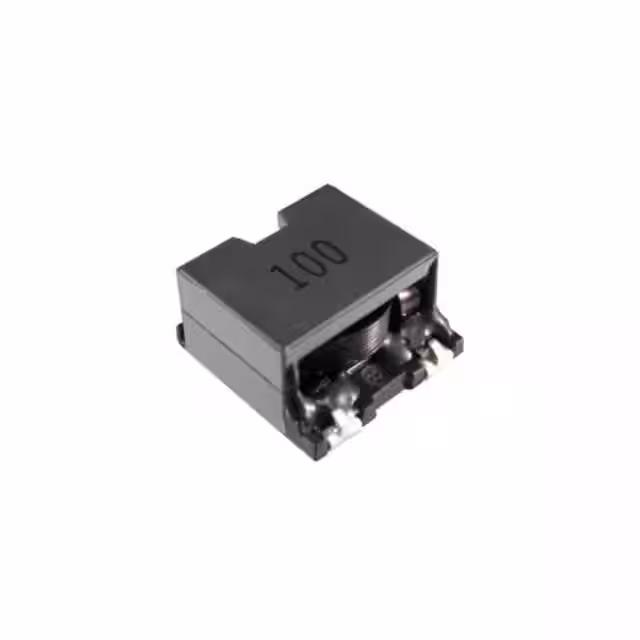

CTCDEP147LF-100MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTCDEP147LF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 10.2 A | 9.2A | Shielded | 9.85mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
CTCDEP147SF-4R7MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTCDEP147SF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 12 A | 15.2A | Shielded | 7.5mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
CTCDEP147SF-R40NSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTCDEP147SF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 400 nH | ±30% | 23 A | 52.8A | Shielded | 2.1mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
CTH9F-125M125UH AXIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH9F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 125 µH | ±20% | - | 3.5A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
|
|
CTH9F-8R8M8.8UH AXIAL PWR LINE INDUCTOR |
1 |
|
Datasheet |
CTH9F | Axial | Bulk | Active | Drum Core, Wirewound | Iron | 8.8 µH | ±20% | - | 10A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - |
|

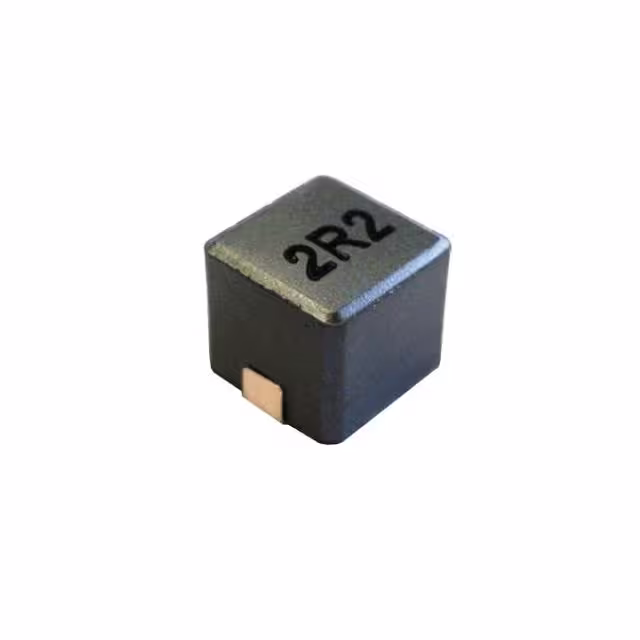

CTHCCI8070F-2R2MSMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTHCCI8070F | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 10 A | 8A | Shielded | 6.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.295" (7.50mm) |
|
|
CTHCCI8070F-1R0MSMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTHCCI8070F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 13 A | 15A | Shielded | 4.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.295" (7.50mm) |
|
CTHCCI8070F-R47MSMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTHCCI8070F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 15 A | 25A | Shielded | 3.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.295" (7.50mm) |
