Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN3012TA-3R3MFIXED IND 3.3UH 1.55A 100MOHM SM Bourns Inc. |
765 |
|
Datasheet |
SRN3012TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.55 A | 1.2A | Shielded | 100mOhm | 15 @ 1MHz | 90MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
CM453232-821JLFIXED IND 820UH 30MA 35 OHM SMD Bourns Inc. |
1,000 |
|
Datasheet |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 30 mA | - | Unshielded | 35Ohm Max | 30 @ 796kHz | 2.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM453232-R22KLFIXED IND 220NH 665MA 250MOHM SM Bourns Inc. |
812 |
|
Datasheet |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 665 mA | - | Unshielded | 250mOhm Max | 40 @ 25.2MHz | 200MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM453232-1R5JLFIXED IND 1.5UH 410MA 600MOHM SM Bourns Inc. |
790 |
|
Datasheet |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 410 mA | - | Unshielded | 600mOhm Max | 50 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SRN2010TA-R47YFIXED IND 470NH 2.35A 44MOHM SMD Bourns Inc. |
599 |
|
Datasheet |
SRN2010TA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 2.35 A | 2.7A | Shielded | 44mOhm | 12 @ 1MHz | 270MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
RLB0608-470KLFIXED IND 47UH 370MA 1 OHM TH Bourns Inc. |
956 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 370 mA | - | Unshielded | 1Ohm Max | 50 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
RLB0608-8R2KLFIXED IND 8.2UH 590MA 400MOHM TH Bourns Inc. |
721 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 590 mA | - | Unshielded | 400mOhm Max | 60 @ 7.96MHz | 25MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
RLB0812-681KLFIXED IND 680UH 140MA 2.9 OHM TH Bourns Inc. |
639 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 140 mA | - | Unshielded | 2.9Ohm Max | 45 @ 796kHz | 1.7MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|

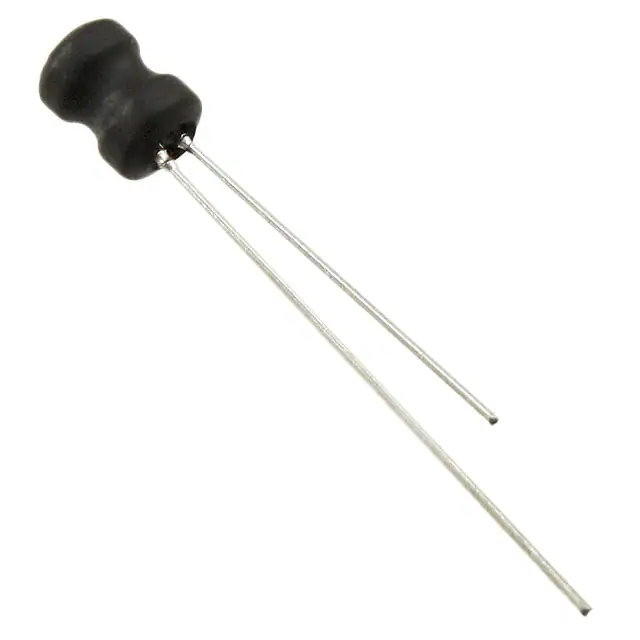

RLB0608-101KLFIXED IND 100UH 305MA 1.7 OHM TH Bourns Inc. |
549 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 305 mA | - | Unshielded | 1.7Ohm Max | 50 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|

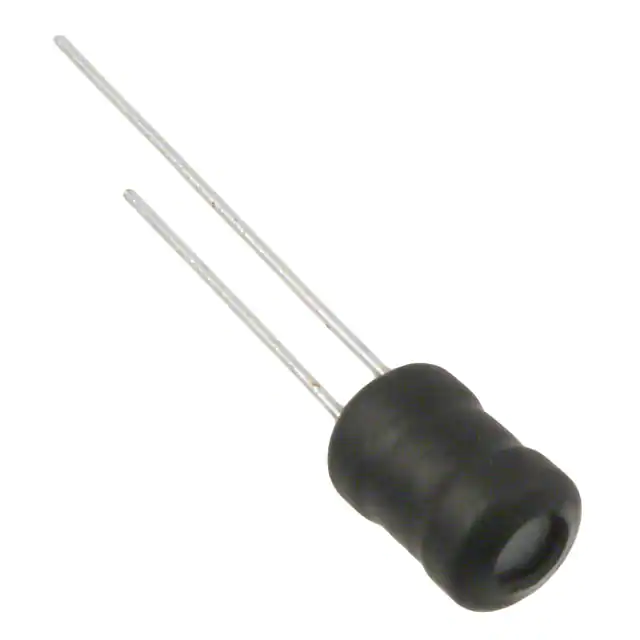

RLB0812-222JLFIXED IND 2.2MH 80MA 8 OHM TH Bourns Inc. |
149 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 80 mA | - | Unshielded | 8Ohm Max | 60 @ 252kHz | 750kHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
