Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2200LL-330-H-RCFIXED IND 33UH 11.1A 10 MOHM TH Bourns Inc. |
38 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 33 µH | ±15% | 11.1 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
2300HT-100-V-RCFIXED IND 10UH 23.3A 6 MOHM TH Bourns Inc. |
100 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±15% | 23.3 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
2300HT-470-H-RCFIXED IND 47UH 10A 28 MOHM TH Bourns Inc. |
97 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 47 µH | ±15% | 10 A | - | Shielded | 28mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300HT-100-H-RCFIXED IND 10UH 23.3A 6 MOHM TH Bourns Inc. |
96 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±15% | 23.3 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300HT-820-V-RCFIXED IND 82UH 8.8A 37 MOHM TH Bourns Inc. |
72 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 82 µH | ±15% | 8.8 A | - | Shielded | 37mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300HT-331-H-RCFIXED IND 330UH 4.9A 100 MOHM TH Bourns Inc. |
68 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±15% | 4.9 A | - | Shielded | 100mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300HT-221-V-RCFIXED IND 220UH 6.8A 61 MOHM TH Bourns Inc. |
37 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 6.8 A | - | Shielded | 61mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

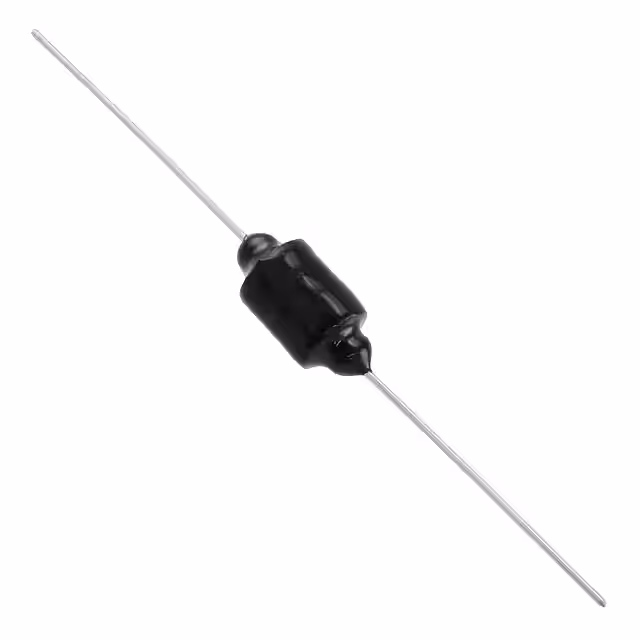

70F502AF-RCFIXED IND 50MH 37MA 175 OHM TH Bourns Inc. |
74 |
|
Datasheet |
70F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 50 mH | ±5% | 37 mA | - | Unshielded | 175Ohm Max | 57 @ 79kHz | 196kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.400" Dia x 0.630" L (10.16mm x 16.00mm) | - |
|
1130-331K-RCFIXED IND 330UH 4.5A 122 MOHM TH Bourns Inc. |
96 |
|
Datasheet |
1130 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 4.5 A | - | Unshielded | 122mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-272K-RCFIXED IND 2.7MH 1.3A 1.14 OHM TH Bourns Inc. |
83 |
|
Datasheet |
1130 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 mH | ±10% | 1.3 A | - | Unshielded | 1.14Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
