Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0604-100KLFIXED IND 10UH SMD Bourns Inc. |
1,134 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" Dia (5.80mm) | 0.189" (4.80mm) |
|
|
SDR0604-2R5MLFIXED IND 2.5UH SMD Bourns Inc. |
1,097 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
SDR0604-271KLFIXED IND 270UH 320MA 1.88OHM SM Bourns Inc. |
1,037 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 320 mA | 400mA | Unshielded | 1.88Ohm Max | 26 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
SDR0604-561KLFIXED IND 560UH 180MA 4 OHM SMD Bourns Inc. |
955 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 180 mA | 260mA | Unshielded | 4Ohm Max | 24 @ 252kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
SDR0604-821KLFIXED IND 820UH 140MA 5.2OHM SMD Bourns Inc. |
828 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 140 mA | 200mA | Unshielded | 5.2Ohm Max | 25 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
SDR0302-1R2MLFIXED IND 1.2UH 2A 70 MOHM SMD Bourns Inc. |
730 |
|
Datasheet |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 2 A | 2.5A | Unshielded | 70mOhm Max | 22 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|

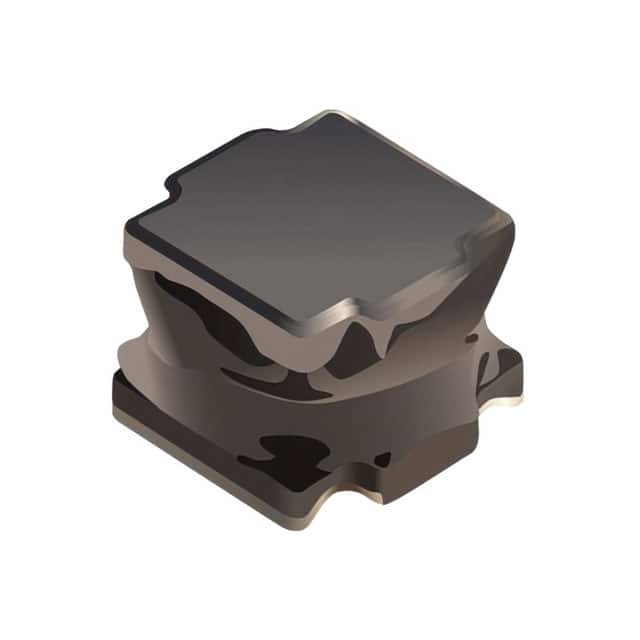

SRN6045HA-1R5YIND,6X6X4.7MM,1.5UH30%,5A,SEMI-S Bourns Inc. |
395 |
|
Datasheet |
SRN6045HA | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 5 A | 11A | Shielded | 15mOhm Max | 17 @ 7.96MHz | 55MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
SDR0603-120MLFIXED IND 12UH 1.02A 160MOHM SMD Bourns Inc. |
314 |
|
Datasheet |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.02 A | 1.3A | Unshielded | 160mOhm Max | 23 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|
|
SDR0603-6R8MLFIXED IND 6.8UH 1.38A 110MOHM SM Bourns Inc. |
297 |
|
Datasheet |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.38 A | 1.8A | Unshielded | 110mOhm Max | 19 @ 7.96MHz | 44MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|
SDE0604A-121KFIXED IND 120UH 750MA 900MOHM SM Bourns Inc. |
844 |
|
Datasheet |
SDE0604A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 750 mA | 600mA | Unshielded | 900mOhm Max | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
