Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

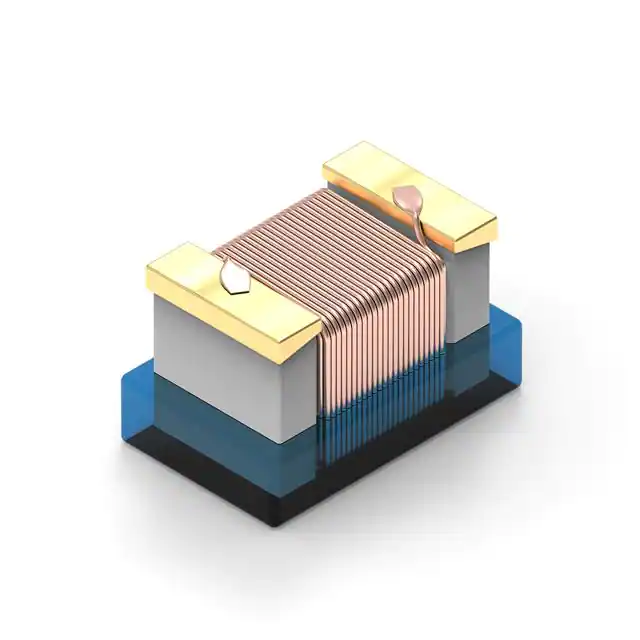

7447603120AWE-KI SMT WIRE WOUND CERAMIC IND Würth Elektronik |
1,823 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.2 µH | ±5% | 200 mA | - | Unshielded | 3.2Ohm Max | 18 @ 50MHz | 190MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
744765043AFIXED IND 4.3NH 700MA 91MOHM SMD Würth Elektronik |
1,663 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.3 nH | ±5% | 700 mA | - | Unshielded | 91mOhm Max | 18 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765120AFIXED IND 20NH 420MA 250MOHM SMD Würth Elektronik |
1,638 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 20 nH | ±5% | 420 mA | - | Unshielded | 250mOhm Max | 25 @ 250MHz | 3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765210AFIXED IND 100NH 100MA 2.52OHM SM Würth Elektronik |
1,444 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 100 mA | - | Unshielded | 2.52Ohm Max | 20 @ 150MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|

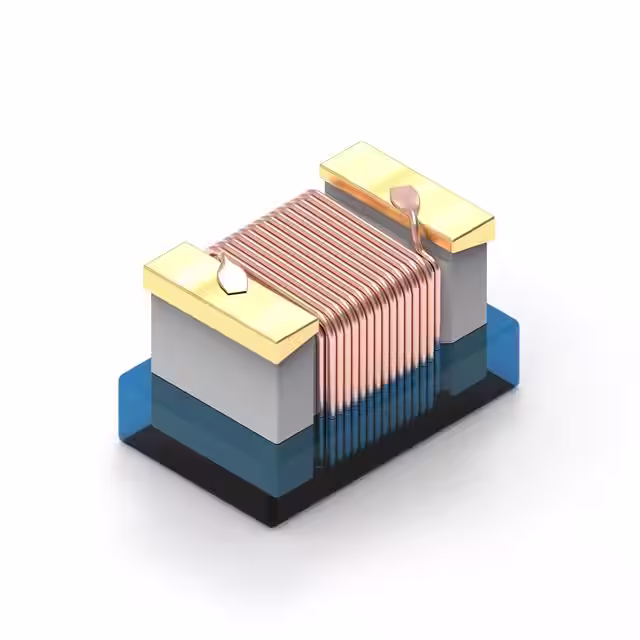

7447602560AWE-KI SMT WIRE WOUND CERAMIC IND Würth Elektronik |
1,340 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±5% | 230 mA | - | Unshielded | 1.1Ohm Max | 18 @ 100MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
744765156AFIXED IND 56NH 100MA 970MOHM SMD Würth Elektronik |
1,312 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 100 mA | - | Unshielded | 970mOhm Max | 22 @ 200MHz | 1.76GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
744901018FIXED IND 1.8NH 560MA 200MOHM SM Würth Elektronik |
9,695 |
|
Datasheet |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.8 nH | ±0.1nH | 560 mA | - | Unshielded | 200mOhm Max | 13 @ 500MHz | 10GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
744901082FIXED IND 8.2NH 220MA 1.1OHM SMD Würth Elektronik |
7,883 |
|
Datasheet |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 8.2 nH | ±0.1nH | 220 mA | - | Unshielded | 1.1Ohm Max | 13 @ 500MHz | 5.5GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
744901110FIXED IND 10NH 200MA 1.3 OHM SMD Würth Elektronik |
6,657 |
|
Datasheet |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 10 nH | ±2% | 200 mA | - | Unshielded | 1.3Ohm Max | 13 @ 500MHz | 4.5GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
744901115FIXED IND 15NH 130MA 1.8 OHM SMD Würth Elektronik |
5,784 |
|
Datasheet |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 15 nH | ±2% | 130 mA | - | Unshielded | 1.8Ohm Max | 13 @ 500MHz | 3.3GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
