Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744762322AFIXED IND 2.2UH 200MA 2.35OHM SM Würth Elektronik |
1,699 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 200 mA | - | Unshielded | 2.35Ohm Max | 20 @ 7.96MHz | 160MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744762418AFIXED IND 18UH 120MA 4.5 OHM SMD Würth Elektronik |
1,679 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±5% | 120 mA | - | Unshielded | 4.5Ohm Max | 15 @ 2.52MHz | 24MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744762315AFIXED IND 1.5UH 220MA 1.65OHM SM Würth Elektronik |
1,537 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 220 mA | - | Unshielded | 1.65Ohm Max | 20 @ 7.96MHz | 250MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
.jpg)
|
744760347AFIXED IND 4.7UH 180MA 2.8OHM SMD Würth Elektronik |
1,500 |
|
Datasheet |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 180 mA | - | Unshielded | 2.8Ohm Max | 15 @ 7.96MHz | 50MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|

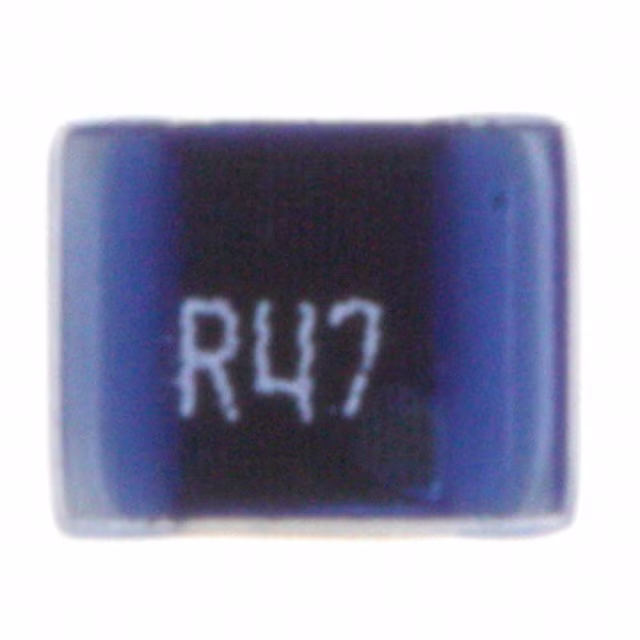

744762247AFIXED IND 470NH 420MA 1.17OHM SM Würth Elektronik |
1,279 |
|
Datasheet |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±5% | 420 mA | - | Unshielded | 1.17Ohm Max | 45 @ 100MHz | 480MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744758333AFIXED IND 3.3UH 460MA 1.35OHM SM Würth Elektronik |
1,099 |
|
Datasheet |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 460 mA | - | Unshielded | 1.35Ohm Max | 20 @ 7.96MHz | 120MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744761172AFIXED IND 72NH 400MA 490MOHM SMD Würth Elektronik |
5,160 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 72 nH | ±5% | 400 mA | - | Unshielded | 490mOhm Max | 35 @ 150MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
7447916FIXED IND 4.7UH 50MA 900MOHM SMD Würth Elektronik |
2,444 |
|
Datasheet |
WE-MI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±10% | 50 mA | - | Unshielded | 900mOhm Max | 45 @ 10MHz | 41MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
|
7447912FIXED IND 100NH 250MA 250MOHM SM Würth Elektronik |
8,532 |
|
Datasheet |
WE-MI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 100 nH | ±10% | 250 mA | - | Unshielded | 250mOhm Max | 20 @ 25MHz | 270MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1206 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
74404020033FIXED IND 3.3UH 870MA 279MOHM SM Würth Elektronik |
2,703 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 870 mA | 1.1A | Shielded | 279mOhm | - | 78MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
