Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744761087CFIXED IND 8.7NH 700MA 100MOHM SM Würth Elektronik |
3,068 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.7 nH | ±5% | 700 mA | - | Unshielded | 100mOhm Max | 28 @ 250MHz | 4.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
744761222CFIXED IND 220NH 250MA 1.8OHM SMD Würth Elektronik |
2,858 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 250 mA | - | Unshielded | 1.8Ohm Max | 25 @ 100MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
74476015CFIXED IND 56NH 500MA 340MOHM SMD Würth Elektronik |
2,659 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 500 mA | - | Unshielded | 340mOhm Max | 50 @ 500MHz | 1.55GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744761147CFIXED IND 47NH 600MA 230MOHM SMD Würth Elektronik |
1,755 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 600 mA | - | Unshielded | 230mOhm Max | 35 @ 200MHz | 2GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|

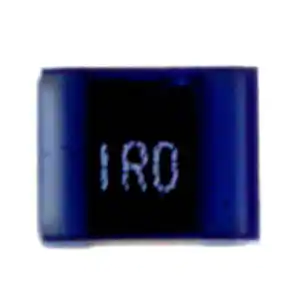

744762310AFIXED IND 1UH 120MA 3.3 OHM SMD Würth Elektronik |
1,667 |
|
Datasheet |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±5% | 120 mA | - | Unshielded | 3.3Ohm Max | 35 @ 50MHz | 310MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
74476032CFIXED IND 470NH 250MA 2.3OHM SMD Würth Elektronik |
1,633 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±5% | 250 mA | - | Unshielded | 2.3Ohm Max | 30 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744761118CFIXED IND 18NH 700MA 120MOHM SMD Würth Elektronik |
1,512 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 700 mA | - | Unshielded | 120mOhm Max | 35 @ 250MHz | 3.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
744761124CFIXED IND 24NH 700MA 140MOHM SMD Würth Elektronik |
1,488 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 24 nH | ±5% | 700 mA | - | Unshielded | 140mOhm Max | 35 @ 250MHz | 2.65GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
744760212CFIXED IND 120NH 400MA 510MOHM SM Würth Elektronik |
1,445 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 400 mA | - | Unshielded | 510mOhm Max | 35 @ 250MHz | 1.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
7447669012FIXED IND 1.2UH 1.8A 105MOHM SMD Würth Elektronik |
1,991 |
|
Datasheet |
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±10% | 1.8 A | - | Unshielded | 120mOhm Max | 15 @ 7.96MHz | 180MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
