Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL622-152K-RCFIXED IND 1.5MH 80MA 6.1 OHM TH |
981 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 80 mA | - | Unshielded | 6.1Ohm Max | 20 @ 252kHz | 1MHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
LAYPH06045DL100MGAFIXED IND 10UH 2.6A 38 MOHM SMD |
970 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.7 A | 2A | Shielded | 38mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
PM124SH-331M-RCFIXED IND 330UH 750MA 950MOHM SM |
960 |
|
Datasheet |
PM124SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 750 mA | 750mA | Shielded | 950mOhm Max | 12 @ 796kHz | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
7447732168FIXED IND 68UH 300MA 1.8 OHM SMD |
953 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±10% | 300 mA | 490mA | Unshielded | 1.8Ohm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3521 | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
|
B82442T1155K000FIXED IND 1.5MH 130MA 14.9OHM SM |
941 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 130 mA | 250mA | Unshielded | 14.9Ohm Max | 30 @ 252kHz | 1.5MHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442T1273K000FIXED IND 27UH 880MA 307MOHM SMD |
900 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 880 mA | 1.78A | Unshielded | 307mOhm Max | 15 @ 2.52MHz | 11MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
ASPI-0804T-220M-TFIXED IND 22UH 2.6A 85 MOHM SMD |
840 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.6 A | - | Unshielded | 85mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
F1A2-464615-100MFIXED IND 10.0UH 1.00A 240 MOHM |
3,995 |
|
Datasheet |
F1A2-4646 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1 A | 1.2A | Shielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
|
|
F1A1-303018-330MFIXED IND 33.0UH 330MA 1222 MOHM |
3,500 |
|
Datasheet |
F1A1-303018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 33 µH | ±20% | 330 mA | 230mA | Shielded | 1.222kOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.071" (1.80mm) |
|
|
F1A1-303018-220MFIXED IND 22.0UH 450MA 975 MOHM |
3,490 |
|
Datasheet |
F1A1-303018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 22 µH | ±20% | 450 mA | 300mA | Shielded | 975Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.071" (1.80mm) |
|

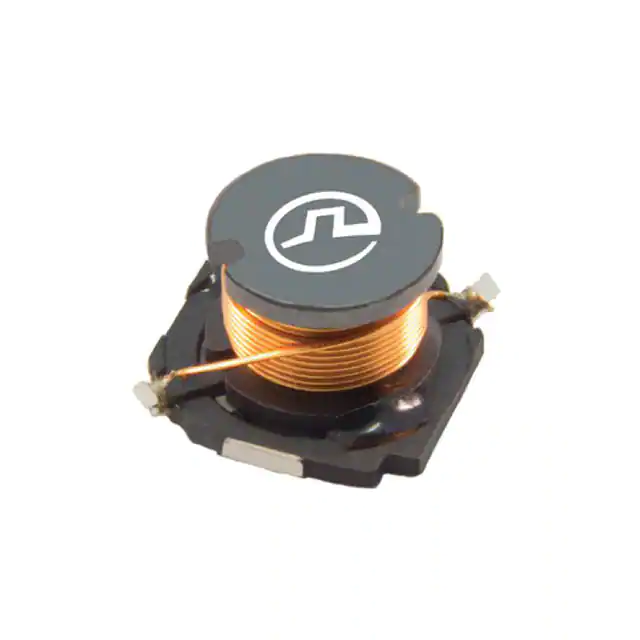

PA4308.822NLTFIXED IND 8.2UH 4.8A 97 MOHM SMD |
2,000 |
|
Datasheet |
PA4308.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±30% | 4.8 A | - | Unshielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
|
74453112FIXED IND 12UH 1.1A 0.185OHM SMD |
2,000 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 12 µH | ±20% | 1.1 A | 2.7A | Shielded | 185mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
SRR1005-1R0MFIXED IND 1UH 4.5A 17 MOHM SMD |
1,800 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 4.5 A | 8A | Shielded | 17mOhm Max | 25 @ 7.96MHz | 120MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
B82471A1473M000FIXED IND 47UH 720MA 370MOHM SMD |
1,638 |
|
Datasheet |
B82471A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 720 mA | 850mA | Unshielded | 370mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.220" W (6.10mm x 5.60mm) | 0.193" (4.90mm) |
|
|
B82442T1225J000FIXED IND 2.2MH 100MA 22.5OHM SM |
1,587 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 100 mA | 205mA | Unshielded | 22.5Ohm Max | 30 @ 252kHz | 1.2MHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
SRR1005-272KFIXED IND 2.7MH 120MA 8.6OHM SMD |
1,200 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 mH | ±10% | 120 mA | 180mA | Shielded | 8.6Ohm Max | 55 @ 252kHz | 1.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
PCMB053T-R68MSFIXED IND 680NH 8.5A 12 MOHM SMD |
999 |
|
Datasheet |
PCMB | 1919 (4848 Metric) | Tape & Reel (TR) | Active | - | - | 680 nH | ±20% | 8.5 A | 14A | Unshielded | 12mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.110" (2.80mm) |
|
|
B82471A1333M000FIXED IND 33UH 880MA 230MOHM SMD |
995 |
|
Datasheet |
B82471A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 880 mA | 1A | Unshielded | 230mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.220" W (6.10mm x 5.60mm) | 0.193" (4.90mm) |
|
SRR1206-181KLFIXED IND 180UH 800MA 380MOHM SM |
590 |
|
Datasheet |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 800 mA | 1.3A | Shielded | 380mOhm Max | 12 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
|
SRR1206-2R5MLFIXED IND 2.5UH 6.2A 16 MOHM SMD |
588 |
|
Datasheet |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 6.2 A | 10A | Shielded | 16mOhm Max | 19 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
