Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6030WA-100MIND POWER HC 10UH 4.2A SHLD |
500 |
|
Datasheet |
SRP6030WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4.2 A | 4.7A | Shielded | 69.3mOhm Max | 20 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6030WA-3R3MIND POWER HC 3.3UH 7.8A SHLD |
436 |
|
Datasheet |
SRP6030WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 7.8 A | 9.5A | Shielded | 24.2mOhm Max | 20 @ 100kHz | 25MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6030WA-1R0MIND POWER HC 1UH 14A SHLD |
389 |
|
Datasheet |
SRP6030WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 14 A | 14A | Shielded | 6.6mOhm Max | 15 @ 100kHz | 42MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRR5228A-471MIND 470UH 0.31A SHLD |
350 |
|
Datasheet |
SRR5228A | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 470 µH | ±20% | 240 mA | 220mA | Shielded | 4.3Ohm Max | - | 3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.126" (3.20mm) |
|
|
SRP6030WA-8R2MIND POWER HC 8.2UH 4.8A SHLD |
309 |
|
Datasheet |
SRP6030WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 4.8 A | 5.6A | Shielded | 54mOhm Max | 20 @ 100kHz | 15MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRR5228A-101MIND 100UH 0.7A SHLD |
300 |
|
Datasheet |
SRR5228A | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±20% | 570 mA | 470mA | Shielded | 800mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.126" (3.20mm) |
|
|
SRR5228A-102MIND 1000UH 0.21A SHLD |
286 |
|
Datasheet |
SRR5228A | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±20% | 160 mA | 150mA | Shielded | 8.7Ohm Max | - | 2.1MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.126" (3.20mm) |
|
|
SRP6030WA-2R2MIND POWER HC 2.2UH 9A SHLD |
279 |
|
Datasheet |
SRP6030WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 9 A | 10.5A | Shielded | 16.5mOhm Max | 20 @ 100kHz | 32MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6030WA-220MIND POWER HC 22UH 2.9A SHLD |
199 |
|
Datasheet |
SRP6030WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.9 A | 3A | Shielded | 165mOhm Max | 20 @ 100kHz | 9MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
ASPI-8030HS-2R2M-TIND 2.2UH 9A 20.3M |
10,870 |
|
Datasheet |
ASPI-8030HS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 9 A | 21A | Shielded | 20.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.118" (3.00mm) |
.jpg)
|

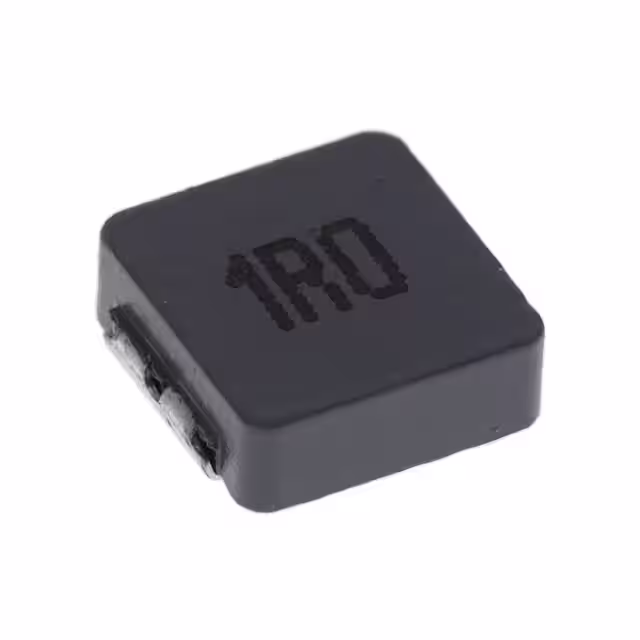

ASPI-8030HS-1R0M-TIND 1UH 13.7A 8.35M |
9,781 |
|
Datasheet |
ASPI-8030HS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 13.7 A | 29A | Shielded | 8.35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.118" (3.00mm) |
|
|
ASPI-8030HS-4R7M-TIND 4.7UH 6.6A 34.2M |
9,680 |
|
Datasheet |
ASPI-8030HS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 6.6 A | 10.5A | Shielded | 34.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.118" (3.00mm) |
|
|
PCA2V3223-100-RIND 10.0UH 0.45A SMT 2PAD |
7,500 |
|
Datasheet |
PCA2V3223 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | 450mA | Unshielded | 150mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
PCA2V3223-2R2-RIND 2.2UH 1.1A SMT 2PAD |
7,500 |
|
Datasheet |
PCA2V3223 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.35 A | 1.1A | Unshielded | 180mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
PCA1V3223-2R2-RIND 2.2UH 1.0A SMT 2PAD |
7,500 |
|
Datasheet |
PCA1V3223 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1 A | 1A | Unshielded | 190mOhm Max | - | 200MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
PCA1V3223-4R7-RIND 4.7UH 0.85A SMT 2PAD |
7,470 |
|
Datasheet |
PCA1V3223 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 850 mA | 850mA | Unshielded | 280mOhm Max | - | 100MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
PCA1V3223-100-RIND 10.0UH 0.5A SMT 2PAD |
7,343 |
|
Datasheet |
PCA1V3223 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 700 mA | 500mA | Unshielded | 400mOhm Max | - | 100MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
PCA1V3223-2R7-RIND 2.7UH 0.975A SMT 2PAD |
7,285 |
|
Datasheet |
PCA1V3223 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.7 µH | ±20% | 975 mA | 975mA | Unshielded | 220mOhm Max | - | 200MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
F1A1-383815-1R5NFIXED IND 1.5UH 1.7A 94 MOHM |
4,000 |
|
Datasheet |
F1A1-383815 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 1.5 µH | ±30% | 1.7 A | 1.5A | Shielded | 94Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
|
F1A1-383815-150MFIXED IND 15.0UH 750MA 456 MOHM |
4,000 |
|
Datasheet |
F1A1-383815 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 15 µH | ±30% | 750 mA | 420mA | Shielded | 456Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
