Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1D1-050503W-R68MFIXED IND 0.68UH 9A 12 MOHM |
2,000 |
|
Datasheet |
F1D1-0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 9 A | 11.5A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
VCUW25201B-150MS5IND SMD 15.0UH AUTO GRADE CHOKE |
1,953 |
|
Datasheet |
VCUW25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 540 mA | 1.2A | Unshielded | 1Ohm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
SFAPI-101K-UL-TRFIXED IND 100UH 632MA AXIAL |
1,879 |
|
Datasheet |
SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 632 mA | - | Unshielded | 208mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
|
SRP5020CC-8R2MIND SMD 8.2UH 2.6A |
1,824 |
|
Datasheet |
SRP5020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 2.6 A | 4A | Shielded | 171mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
|
VCTA32251B-1R5MS6IND SMD 1.5UH AUTO GRADE CHOKE |
1,759 |
|
Datasheet |
VCTA32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 3.1 A | 3.7A | Unshielded | 54mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VCTA32251B-3R3MS6IND SMD 3.3UH AUTO GRADE CHOKE |
1,639 |
|
Datasheet |
VCTA32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 2 A | 2.5A | Unshielded | 127mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VCTA32251B-6R8MS6IND SMD 6.8UH AUTO GRADE CHOKE |
1,500 |
|
Datasheet |
VCTA32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 1.3 A | 2A | Unshielded | 300mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VCTA32251B-4R7MS6IND SMD 4.7UH AUTO GRADE CHOKE |
1,495 |
|
Datasheet |
VCTA32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 1.6 A | 2.2A | Unshielded | 180mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SRP6530A-R22MIND,7.1X6.6X3MM,0.22UH20%,25.5A, |
1,414 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 25.5 A | 50A | Shielded | 2.8mOhm Max | 12 @ 25.2MHz | 145MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

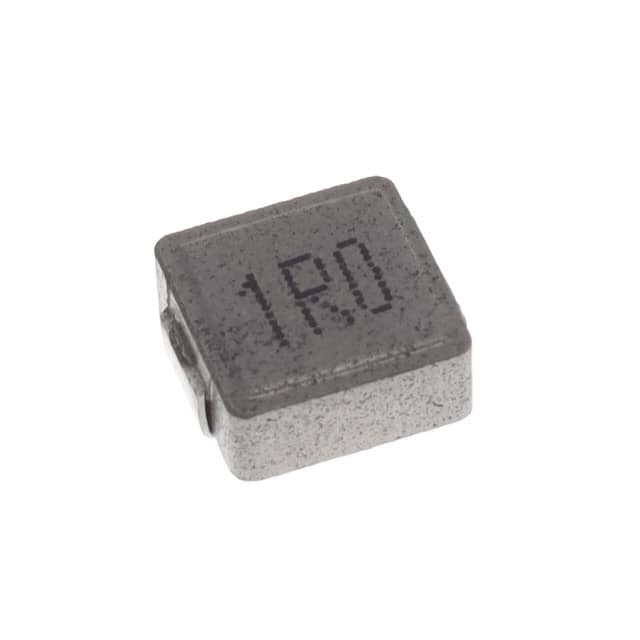

SRP6530A-1R0MIND,7.1X6.6X3MM,1UH20%,12A,SHD |
1,066 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 12 A | 25A | Shielded | 10mOhm Max | 30 @ 7.96MHz | 58MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SFAPI-122K-UL-TRFIXED IND 1.2MH 200MA AXIAL |
984 |
|
Datasheet |
SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 1.2 mH | ±10% | 200 mA | - | Unshielded | 2.65Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
|
SFAPI-102K-UL-TRFIXED IND 1MH 200MA AXIAL |
942 |
|
Datasheet |
SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±10% | 200 mA | - | Unshielded | 2.3Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
B82442T1685J000FIXED IND 6.8MH 65MA 60.3OHM SMD |
940 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±5% | 65 mA | 125mA | Unshielded | 60.3Ohm Max | 30 @ 252kHz | 600kHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
SRP6530A-R10MIND,7.1X6.6X3MM,0.1UH20%,34A,SHD |
919 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 100 nH | ±20% | 34 A | 70A | Shielded | 1.7mOhm Max | 14 @ 25.2MHz | 200MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

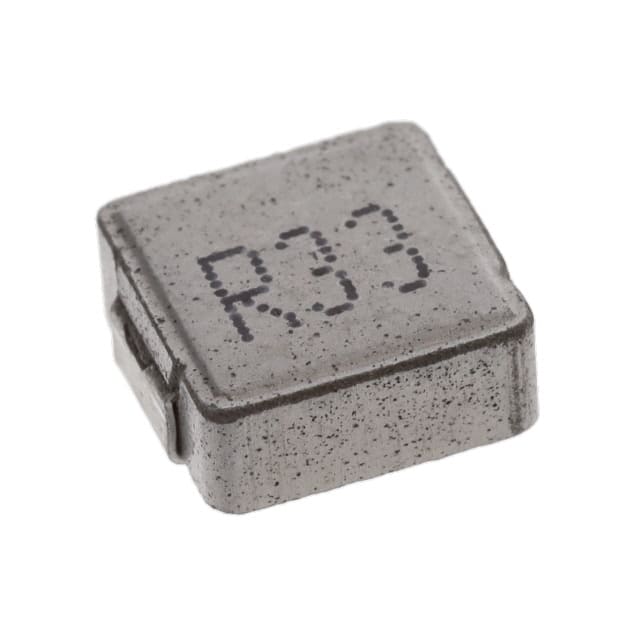

SRP6530A-R33MIND,7.1X6.6X3MM,0.33UH20%,21.5A, |
891 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 21.5 A | 35A | Shielded | 3.9mOhm Max | 12 @ 25.2MHz | 140MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6530A-R56MIND,7.1X6.6X3MM,0.56UH20%,18A,SH |
880 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 560 nH | ±20% | 18 A | 28A | Shielded | 5.5mOhm Max | 12 @ 25.2MHz | 78MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
VCTA32251B-2R2MS6IND SMD 2.2UH AUTO GRADE CHOKE |
726 |
|
Datasheet |
VCTA32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 2.5 A | 3.3A | Unshielded | 75mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

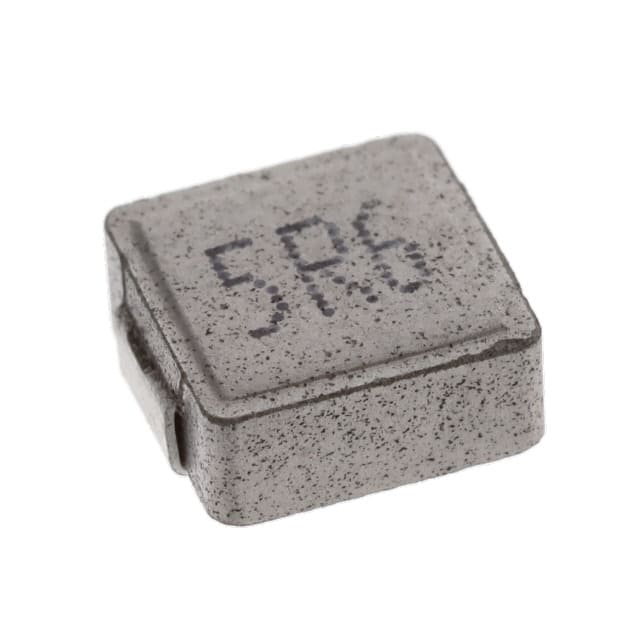

SRP6530A-5R6MIND,7.1X6.6X3MM,5.6UH20%,5.8A,SH |
653 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 5.6 µH | ±20% | 5.8 A | 10.5A | Shielded | 60mOhm Max | 21 @ 7.96MHz | 20MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

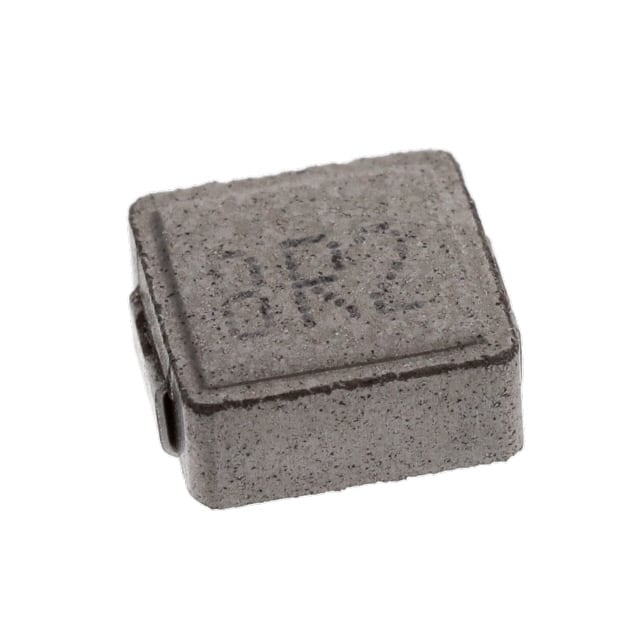

SRP6530A-8R2MIND,7.1X6.6X3MM,8.2UH20%,5A,SHD |
591 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 8.2 µH | ±20% | 5 A | 7.5A | Shielded | 68mOhm Max | 26 @ 2.52MHz | 12MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

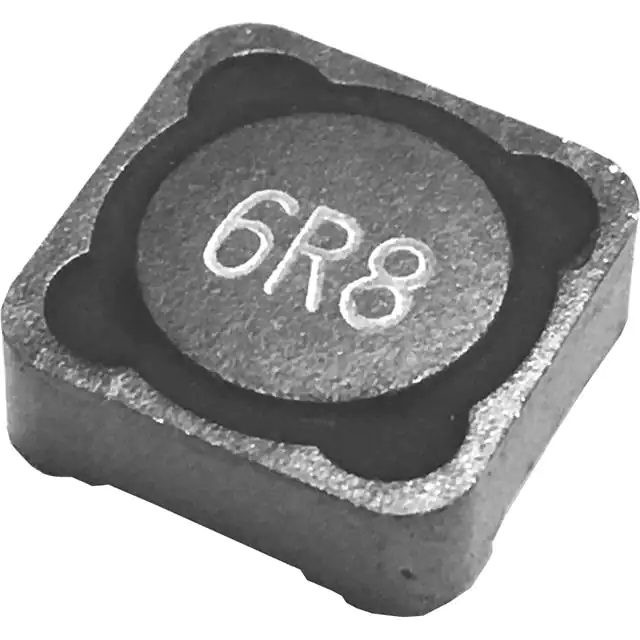

BPCI00121280470M00INDUCTOR POWER |
490 |
|
Datasheet |
BPCI | Nonstandard | Tape & Reel (TR) | Active | Multilayer | Ferrite | 47 µH | ±20% | 2.5 A | 2.5A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
