Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

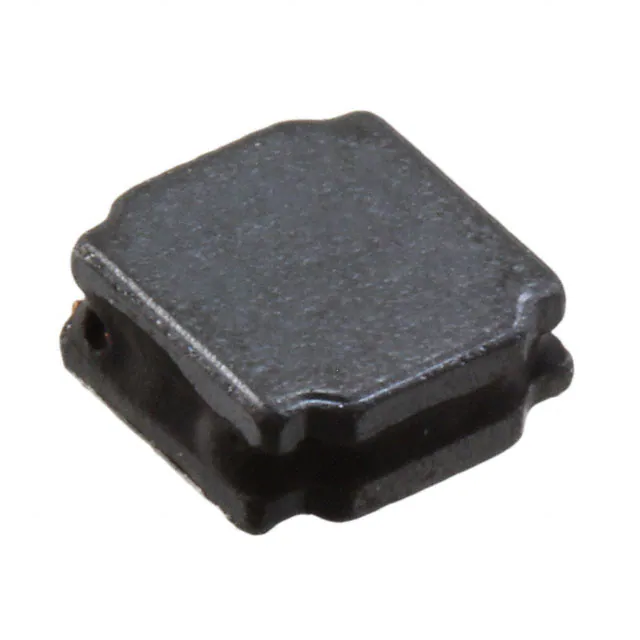

TYS4018330M-10FIXED IND 33UH 490MA 530MOHM SMD |
17,250 |
|
Datasheet |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 490 mA | 650mA | Shielded | 530mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
HTEL16080H-R47MIRIND SMD 0.47UH HOT PRESSED CHOKE |
6,550 |
|
Datasheet |
HTEL16080H | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 3.1 A | 4.2A | Unshielded | 41mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
TYS4018221M-10FIXED IND 220UH 170MA 4 OHM SMD |
6,071 |
|
Datasheet |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 170 mA | 270mA | Shielded | 4Ohm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|

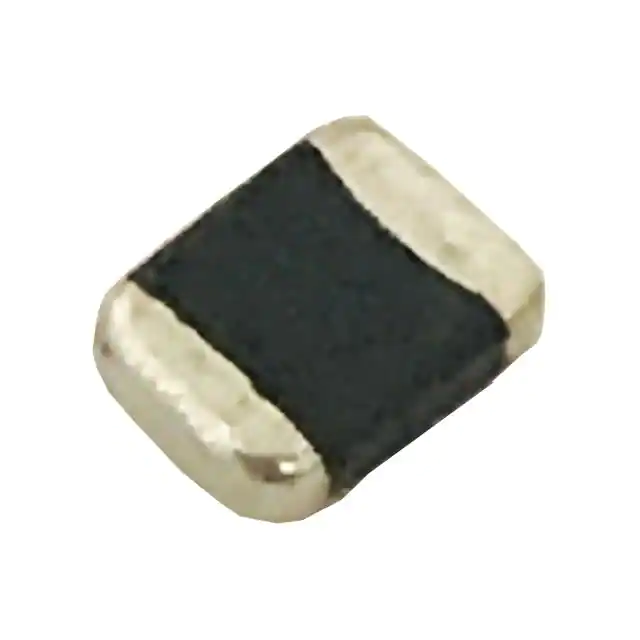

BDUE002520101R0MQ1INDUCTOR POWER |
6,000 |
|
Datasheet |
BDUE | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 4 A | 4.7A | Unshielded | 46mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
.jpg)
|
B82422T1331J000FIXED IND 330NH 450MA 230MOHM SM |
5,997 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±5% | 450 mA | - | Unshielded | 230mOhm Max | 30 @ 25.2MHz | 500MHz | AEC-Q200 | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
TYS4018150M-10FIXED IND 15UH 650MA 250MOHM SMD |
5,980 |
|
Datasheet |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 650 mA | 940mA | Shielded | 250mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
B82422T1472J000FIXED IND 4.7UH 220MA 1.5OHM SMD |
5,800 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 220 mA | - | Unshielded | 1.5Ohm Max | 30 @ 7.96MHz | 50MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
TYS4018220M-10FIXED IND 22UH 590MA 360MOHM SMD |
5,439 |
|
Datasheet |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 590 mA | 800mA | Shielded | 360mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
TYS4018100M-10FIXED IND 10UH 840MA 180MOHM SMD |
4,685 |
|
Datasheet |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 840 mA | 1.3A | Shielded | 180mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|

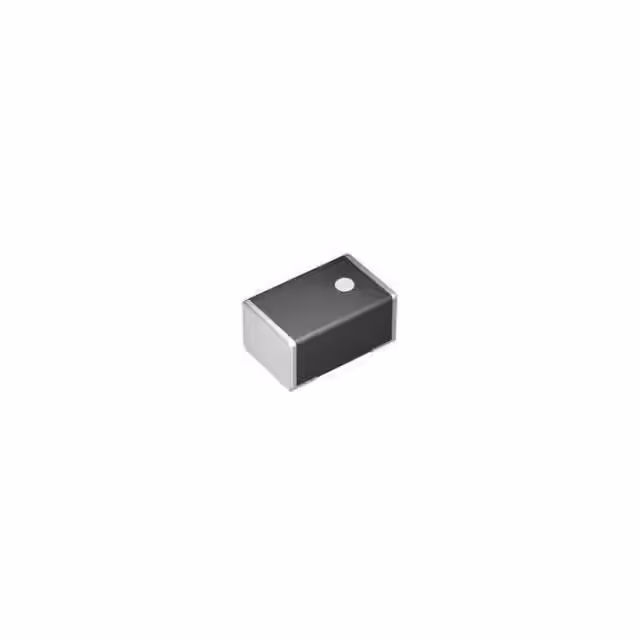

LSCNB1210EKT1R5MBFIXED IND 1.5UH 900MA 240MOHM SM |
4,588 |
|
Datasheet |
LSCN | 0504 (1210 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1.5 µH | ±20% | 900 mA | 1.2A | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0504 | 0.049" L x 0.041" W (1.25mm x 1.05mm) | 0.020" (0.50mm) |
|
LSCNB1210EKT1R0MBFIXED IND 1UH 1.1A 179 MOHM SMD |
4,585 |
|
Datasheet |
LSCN | 0504 (1210 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 1.1 A | 1.5A | Unshielded | 179mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0504 | 0.049" L x 0.041" W (1.25mm x 1.05mm) | 0.020" (0.50mm) |
|
LMLP07A7M1R5DTASFIXED IND 1.5UH 9A 15 MOHM SMD |
4,399 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.5 µH | ±20% | 9 A | 16A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
LQH32NH470J23LFIXED IND 47UH 155MA 1.752OHM SM |
3,745 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 155 mA | - | Unshielded | 1.752Ohm Max | 40 @ 1MHz | 16MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
TYS4018470M-10FIXED IND 47UH 420MA 650MOHM SMD |
3,254 |
|
Datasheet |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 420 mA | 570mA | Shielded | 650mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
AISC-1210-1R5J-TFIXED IND 1.5UH 310MA 1.95OHM SM |
3,000 |
|
Datasheet |
AISC-1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.5 µH | ±5% | 310 mA | - | Unshielded | 1.95Ohm Max | 20 @ 50MHz | 160MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.144" L x 0.116" W (3.65mm x 2.95mm) | 0.106" (2.70mm) |
|
|
SRN3010C-1R2MFIXED IND 1.2UH 2.1A 81 MOHM SMD |
3,000 |
|
Datasheet |
SRN3010C | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 3.1 A | 2.1A | Shielded | 72mOhm Max | 10 @ 100kHz | 135MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010C-1R5MFIXED IND 1.5UH 2A 91 MOHM SMD |
2,970 |
|
Datasheet |
SRN3010C | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.8 A | 1.9A | Shielded | 90mOhm Max | 10 @ 100kHz | 115MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
TYS40182R2M-10FIXED IND 2.2UH 1.65A 45MOHM SMD |
2,967 |
|
Datasheet |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.65 A | 2.7A | Shielded | 45mOhm Max | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
ASPI-0615FS-150M-T2FIXED IND 15UH 1.2A 120 MOHM SMD |
2,955 |
|
Datasheet |
ASPI-0615FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.2 A | 1.3A | Shielded | 120mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
SRN3010C-3R3MFIXED IND 3.3UH 1.8A 156MOHM SMD |
2,940 |
|
Datasheet |
SRN3010C | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.2 A | 1.4A | Shielded | 156mOhm Max | 10 @ 100kHz | 86MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
