Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMCNF1608KKTR56MAWIRE-WOUND METAL POWER INDUCTORS |
6,000 |
|
Datasheet |
MCOIL™, LMCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 560 nH | ±20% | 2.5 A | 2.3A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
BWQC003225162R2M00INDUCTOR RF |
5,990 |
|
Datasheet |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 790 mA | - | Unshielded | 97mOhm | - | 64MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
ADHE00252012R47MQ1INDUCTOR POWER |
5,775 |
|
Datasheet |
ADHE | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 4 A | 5.2A | Shielded | 33mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
AISC-0603F-R15J-TFIXED IND 150NH 820MA 120MOHM SM |
5,645 |
|
Datasheet |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±5% | 820 mA | - | Unshielded | 120mOhm Max | - | 1.26GHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
|
BWQV00322520100K00INDUCTOR RF |
5,120 |
|
Datasheet |
BWQV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 190 mA | - | Unshielded | 1.8Ohm Max | 35 @ 1MHz | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
BWQV00322520470M00INDUCTOR RF |
4,000 |
|
Datasheet |
BWQV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 100 mA | - | Unshielded | 4.3Ohm Max | 40 @ 1MHz | 11MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
BWQV00322520680J00INDUCTOR RF |
4,000 |
|
Datasheet |
BWQV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 80 mA | - | Unshielded | 5.5Ohm Max | 40 @ 1MHz | 9MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
BWQV003225201R0M00INDUCTOR RF |
3,975 |
|
Datasheet |
BWQV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 445 mA | - | Unshielded | 500mOhm Max | 20 @ 1MHz | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
SDCH1V6028-101M-RIND 100 UH 0.85A SMT |
3,974 |
|
Datasheet |
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 750 mA | 850mA | Shielded | 713mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
BWQV00322520221K00INDUCTOR RF |
3,943 |
|
Datasheet |
BWQV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 65 mA | - | Unshielded | 11.8Ohm Max | 40 @ 796kHz | 5.5MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
BWQV00322520220K00INDUCTOR RF |
3,893 |
|
Datasheet |
BWQV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 150 mA | - | Unshielded | 2.8Ohm Max | 35 @ 1MHz | 14MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
BWQC00322520R15ML1INDUCTOR RF |
3,530 |
|
Datasheet |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 1.45 A | - | Unshielded | 28mOhm Max | - | 400MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
BWQV00322520470K00INDUCTOR RF |
3,000 |
|
Datasheet |
BWQV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 100 mA | - | Unshielded | 4.3Ohm Max | 40 @ 1MHz | 11MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

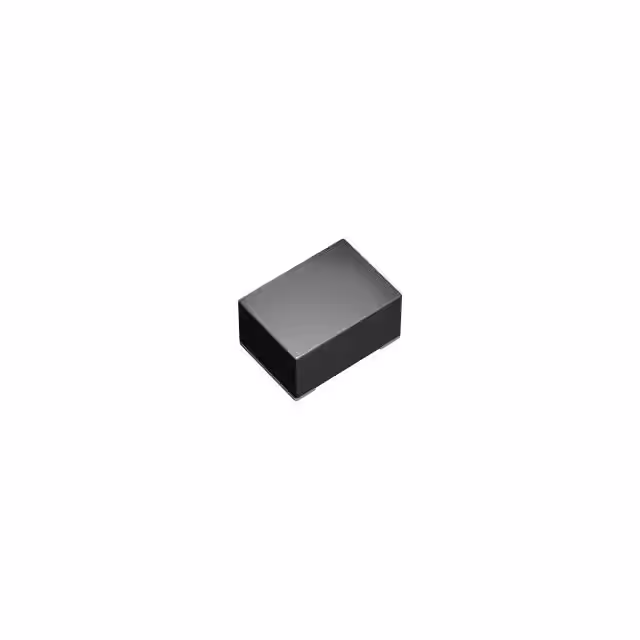

LSENC2520KKT2R2MFIXED IND 2.2UH 2.4A 97 MOHM SMD |
3,000 |
|
Datasheet |
LSEN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 2.4 A | 3.1A | Unshielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
BWQC003225204R7M00INDUCTOR RF |
2,850 |
|
Datasheet |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 450 mA | - | Unshielded | 200mOhm | - | 43MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

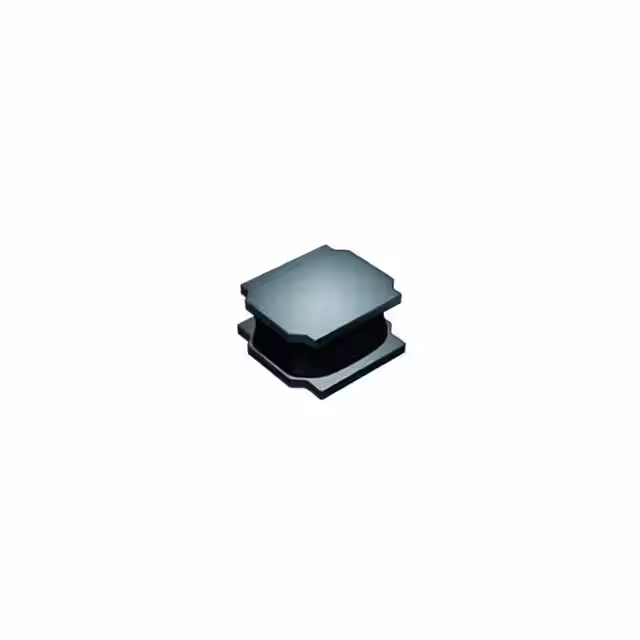

LSXNH8080XKL6R8MJGFIXED IND 6.8UH 3A 37.7 MOHM SMD |
2,250 |
|
- |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 3.4 A | 3A | Shielded | 37.7mOhm Max | - | 32MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
BWQC003225161R0TH1INDUCTOR RF |
2,000 |
|
Datasheet |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.3 A | - | Unshielded | 45mOhm Max | - | 100MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
7447629015WE-GFH HIGH FREQUENCY SMT INDUCT |
2,000 |
|
Datasheet |
WE-GFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.5 µH | ±20% | 750 mA | - | Unshielded | 504mOhm Max | 20 @ 7.96MHz | 220MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
|
BWQV00322520330K00INDUCTOR RF |
1,997 |
|
Datasheet |
BWQV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 115 mA | - | Unshielded | 3.5Ohm Max | 40 @ 1MHz | 12MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
BWQV003225203R3K00INDUCTOR RF |
1,500 |
|
Datasheet |
BWQV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 300 mA | - | Unshielded | 1Ohm Max | 20 @ 1MHz | 38MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
