Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQMB201616T8R2JFIXED IND 8.2UH 225MA 1.1OHM SMD |
2,000 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 8.2 µH | ±5% | 225 mA | - | Unshielded | 1.1Ohm | 25 @ 7.96MHz | 30MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPA251818T1R0MFIXED IND 1UH 1.2A 104 MOHM SMD |
2,000 |
|
- |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 1.2 A | 1A | Unshielded | 104mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|
LSQPA251818T2R2MFIXED IND 2.2UH 1.1A 169MOHM SMD |
2,000 |
|
Datasheet |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.1 A | 890mA | Unshielded | 169mOhm Max | - | 68MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|
LSQPA251818T151KFIXED IND 150UH 130MA 7.93OHM SM |
2,000 |
|
- |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±10% | 130 mA | 140mA | Unshielded | 7.93Ohm Max | - | 7MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|
LSQPA251818T150KFIXED IND 15UH 500MA 845MOHM SMD |
1,997 |
|
- |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 500 mA | 350mA | Unshielded | 845mOhm Max | - | 23MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|
LSQMB201616T3R9JFIXED IND 3.9UH 275MA 740MOHM SM |
1,996 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.9 µH | ±5% | 275 mA | - | Unshielded | 740mOhm | 30 @ 7.96MHz | 43MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPA251818T470KFIXED IND 47UH 290MA 2.47OHM SMD |
1,995 |
|
- |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 290 mA | 240mA | Unshielded | 2.47Ohm Max | - | 12MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|
LSQMB201616T1R0JFIXED IND 1UH 385MA 380 MOHM SMD |
1,990 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±5% | 385 mA | - | Unshielded | 380mOhm | 30 @ 7.96MHz | 220MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616T1R5JFIXED IND 1.5UH 350MA 470MOHM SM |
1,990 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±5% | 350 mA | - | Unshielded | 470mOhm | 30 @ 7.96MHz | 135MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|

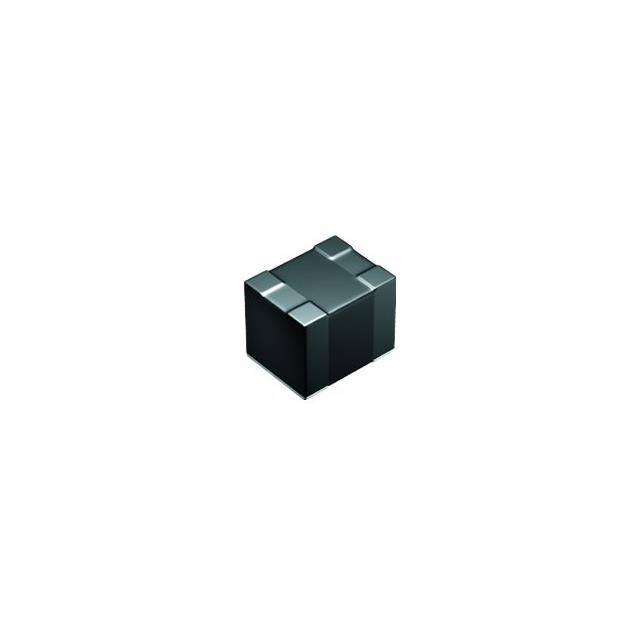

LSQMB201616T1R2JFIXED IND 1.2UH 370MA 410MOHM SM |
1,990 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.2 µH | ±5% | 370 mA | - | Unshielded | 410mOhm | 30 @ 7.96MHz | 180MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616TR22JFIXED IND 220NH 520MA 200MOHM SM |
1,990 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 nH | ±5% | 520 mA | - | Unshielded | 200mOhm | 30 @ 25.2MHz | 450MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPA251818T470MFIXED IND 47UH 290MA 2.47OHM SMD |
1,990 |
|
Datasheet |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 290 mA | 240mA | Unshielded | 2.47Ohm Max | - | 12MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|
LSQPA251818T681KFIXED IND 680UH 60MA 36.4OHM SMD |
1,970 |
|
Datasheet |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 µH | ±10% | 60 mA | 65mA | Unshielded | 36.4Ohm Max | - | 3MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|
LSQMB201616TR47JFIXED IND 470NH 430MA 260MOHM SM |
1,964 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±5% | 430 mA | - | Unshielded | 260mOhm | 30 @ 25.2MHz | 350MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPA251818T331MFIXED IND 330UH 90MA 15.99OHM SM |
1,875 |
|
Datasheet |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 90 mA | 100mA | Unshielded | 15.99Ohm Max | - | 4.5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|
LSQMB201616TR33JFIXED IND 330NH 490MA 210MOHM SM |
1,850 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 nH | ±5% | 490 mA | - | Unshielded | 210mOhm | 30 @ 25.2MHz | 400MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616T220JFIXED IND 22UH 140MA 2.8 OHM SMD |
1,831 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±5% | 140 mA | - | Unshielded | 2.8Ohm | 25 @ 2.52MHz | 17MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616T680JFIXED IND 68UH 90MA 7 OHM SMD |
1,747 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±5% | 90 mA | - | Unshielded | 7Ohm | 20 @ 2.52MHz | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSXNE2424KKT100MNFIXED IND 10UH 450MA 828MOHM SMD |
1,745 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 450 mA | 550mA | Shielded | 828mOhm Max | - | 32MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LSQMB201616TR15JFIXED IND 150NH 570MA 150MOHM SM |
1,735 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 nH | ±5% | 570 mA | - | Unshielded | 150mOhm | 30 @ 25.2MHz | 550MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
