Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQMB201616T4R7JFIXED IND 4.7UH 270MA 1.014 OHM |
1,995 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±5% | 270 mA | - | Unshielded | 780mOhm | 30 @ 7.96MHz | 40MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|

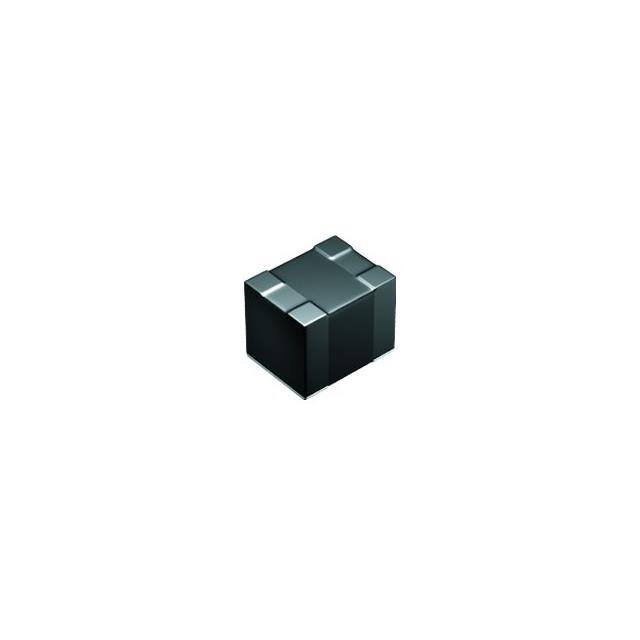

LSQMB201616TR39JFIXED IND 390NH 440MA 260MOHM SM |
1,990 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 390 nH | ±5% | 440 mA | - | Unshielded | 260mOhm | 30 @ 25.2MHz | 375MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616T120JFIXED IND 12UH 200MA 1.4 OHM SMD |
1,965 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 12 µH | ±5% | 200 mA | - | Unshielded | 1.4Ohm | 25 @ 2.52MHz | 23MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616T1R8JFIXED IND 1.8UH 345MA 480MOHM SM |
1,940 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.8 µH | ±5% | 345 mA | - | Unshielded | 480mOhm | 30 @ 7.96MHz | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616T3R3JFIXED IND 3.3UH 290MA 680MOHM SM |
1,940 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±5% | 290 mA | - | Unshielded | 680mOhm | 30 @ 7.96MHz | 48MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
CWF2414-150KIND,2.2X1.4X1.3MM,15UH10%,0.38A, |
1,900 |
|
Datasheet |
CWF2414 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 380 mA | 300mA | Unshielded | 1.4Ohm | 15 @ 2.5MHz | 28MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.055" (1.40mm) |
|
LSQMB201616T100JFIXED IND 10UH 215MA 1.2 OHM SMD |
1,900 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±5% | 215 mA | - | Unshielded | 1.2Ohm | 25 @ 2.52MHz | 27MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616T5R6JFIXED IND 5.6UH 255MA 880MOHM SM |
1,900 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.6 µH | ±5% | 255 mA | - | Unshielded | 880mOhm | 25 @ 7.96MHz | 36MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616T270JFIXED IND 27UH 130MA 3.2 OHM SMD |
1,895 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 27 µH | ±5% | 130 mA | - | Unshielded | 3.2Ohm | 25 @ 2.52MHz | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
CWF2414-220KIND,2.2X1.4X1.3MM,22UH10%,0.34A, |
1,884 |
|
Datasheet |
CWF2414 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 340 mA | 240mA | Unshielded | 1.76Ohm | 15 @ 2.5MHz | 20MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.055" (1.40mm) |
|
|
CWF2414-2R2KIND,2.2X1.4X1.3MM,2.2UH10%,1.04A |
1,840 |
|
Datasheet |
CWF2414 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 1.04 A | 740mA | Unshielded | 220mOhm | 13 @ 7.9MHz | 87MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.055" (1.40mm) |
|
LSQMB201616T2R7JFIXED IND 2.7UH 310MA 590MOHM SM |
1,775 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.7 µH | ±5% | 310 mA | - | Unshielded | 590mOhm | 30 @ 7.96MHz | 55MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616T330JFIXED IND 33UH 125MA 3.6 OHM SMD |
1,750 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±5% | 125 mA | - | Unshielded | 3.6Ohm | 25 @ 2.52MHz | 15MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616TR68JFIXED IND 680NH 400MA 320MOHM SM |
1,660 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 nH | ±5% | 400 mA | - | Unshielded | 320mOhm | 30 @ 25.2MHz | 270MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616T390JFIXED IND 39UH 120MA 3.9 OHM SMD |
1,300 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 39 µH | ±5% | 120 mA | - | Unshielded | 3.9Ohm | 20 @ 2.52MHz | 14MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
BWCS00161008R18G00FIXED IND 180NH 240MA 1.25OHM SM |
39,143 |
|
Datasheet |
BWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 180 nH | ±2% | 240 mA | - | Unshielded | 1.25Ohm Max | 25 @ 100MHz | 990MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
.jpg)
|
LQP02HQ1N6B02LFIXED IND 1.6NH 700MA 80MOHM SMD |
30,042 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | - | 1.6 nH | ±0.1nH | 700 mA | - | Unshielded | 80mOhm Max | 14 @ 500MHz | 10.7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HQ0N9W02LFIXED IND 0.9NH 900MA 50MOHM SMD |
30,000 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | - | 0.9 nH | ±0.05nH | 900 mA | - | Unshielded | 50mOhm Max | 14 @ 500MHz | 14.6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
 MHQ Series.jpg)
|
MHQ1005P9N1GT000FIXED IND 9.1NH 550MA 170MOHM SM |
29,939 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 9.1 nH | ±2% | 550 mA | - | Unshielded | 170mOhm Max | 23 @ 250MHz | 3.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQP02HQ3N3B02LFIXED IND 3.3NH 400MA 250MOHM SM |
29,770 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | - | 3.3 nH | ±0.1nH | 400 mA | - | Unshielded | 250mOhm Max | 14 @ 500MHz | 8.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
