Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQMB201616T6R8JFIXED IND 6.8UH 240MA 970MOHM SM |
1,696 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±5% | 240 mA | - | Unshielded | 970mOhm | 25 @ 7.96MHz | 33MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPA251818T101KFIXED IND 100UH 170MA 4.81OHM SM |
1,660 |
|
Datasheet |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±10% | 170 mA | 160mA | Unshielded | 4.81Ohm Max | - | 9MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|

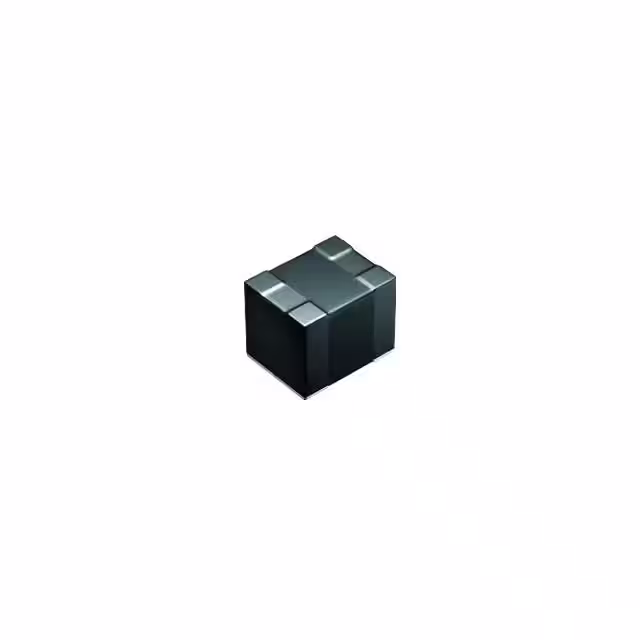

LSQMB201616TR56JFIXED IND 560NH 410MA 290MOHM SM |
1,656 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 560 nH | ±5% | 410 mA | - | Unshielded | 290mOhm | 30 @ 25.2MHz | 300MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LRW0603WJ82NGG001EFIXED IND 82NH 400MA 540MOHM SMD |
79,749 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 400 mA | - | Unshielded | 540mOhm Max | 35 @ 150MHz | 1.7GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
 MHQ Series.jpg)
|
MHQ1005P7N3GT000FIXED IND 7.3NH 600MA 170MOHM SM |
19,990 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 7.3 nH | ±2% | 600 mA | - | Unshielded | 170mOhm Max | 23 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P8N7GT000FIXED IND 8.7NH 550MA 170MOHM SM |
19,990 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 8.7 nH | ±2% | 550 mA | - | Unshielded | 170mOhm Max | 23 @ 250MHz | 3.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P36NGT000FIXED IND 36NH 190MA 1.5 OHM SMD |
19,990 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 36 nH | ±2% | 190 mA | - | Unshielded | 1.5Ohm Max | 20 @ 250MHz | 1.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P1N5BTD25FIXED IND 1.5NH 1A 40 MOHM SMD |
19,975 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.5 nH | ±0.1nH | 1 A | - | Unshielded | 40mOhm Max | 23 @ 250MHz | 11GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P56NGT000FIXED IND 56NH 180MA 1.8 OHM SMD |
19,900 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 56 nH | ±2% | 180 mA | - | Unshielded | 1.8Ohm Max | 22 @ 250MHz | 1.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P33NGT000FIXED IND 33NH 220MA 1.5 OHM SMD |
19,895 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 33 nH | ±2% | 220 mA | - | Unshielded | 1.5Ohm Max | 20 @ 250MHz | 1.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P3N2BT000FIXED IND 3.2NH 900MA 90MOHM SMD |
19,770 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.2 nH | ±0.1nH | 900 mA | - | Unshielded | 90mOhm Max | 23 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P68NGT000FIXED IND 68NH 160MA 2 OHM SMD |
19,725 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 68 nH | ±2% | 160 mA | - | Unshielded | 2Ohm Max | 22 @ 250MHz | 1.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
LQW15AN9N4J80DFIXED IND 9.4NH 1.4A 0.081OHM SM |
19,700 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 9.4 nH | ±5% | 1.4 A | - | Unshielded | 81mOhm Max | 33 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P11NGT000FIXED IND 11NH 450MA 240MOHM SMD |
19,655 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 11 nH | ±2% | 450 mA | - | Unshielded | 240mOhm Max | 23 @ 250MHz | 3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P7N5GT000FIXED IND 7.5NH 600MA 160MOHM SM |
19,440 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 7.5 nH | ±2% | 600 mA | - | Unshielded | 160mOhm Max | 23 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P39NGT000FIXED IND 39NH 190MA 1.5 OHM SMD |
19,310 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 39 nH | ±2% | 190 mA | - | Unshielded | 1.5Ohm Max | 20 @ 250MHz | 1.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P1N1BT000FIXED IND 1.1NH 1.2A 30 MOHM SMD |
18,700 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.1 nH | ±0.1nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 14GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P3N3BT000FIXED IND 3.3NH 900MA 80MOHM SMD |
18,671 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.3 nH | ±0.1nH | 900 mA | - | Unshielded | 80mOhm Max | 23 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P47NGT000FIXED IND 47NH 190MA 1.6 OHM SMD |
18,365 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 47 nH | ±2% | 190 mA | - | Unshielded | 1.6Ohm Max | 22 @ 250MHz | 1.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P18NGT000FIXED IND 18NH 260MA 800MOHM SMD |
17,965 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 18 nH | ±2% | 260 mA | - | Unshielded | 800mOhm Max | 22 @ 250MHz | 2.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
