FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

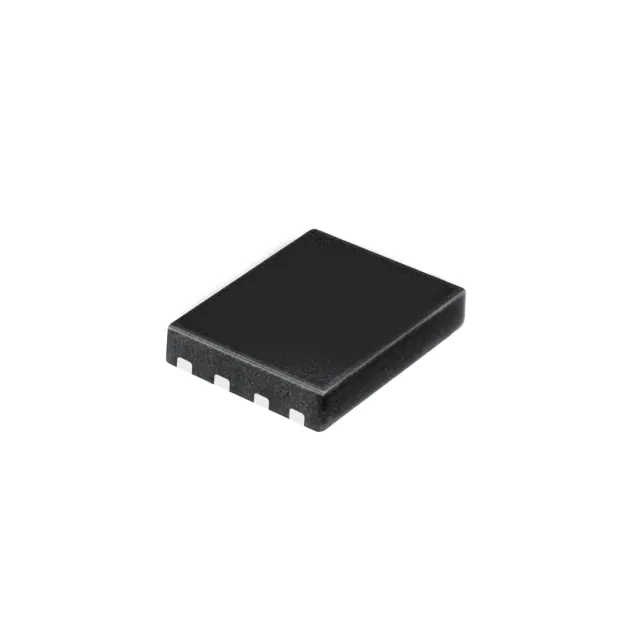

IPL60R065C7AUMA1MOSFET HIGH POWER_NEW |
5,100 |
|
Datasheet |
CoolMOS™ C7 | 4-PowerTSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 65mOhm @ 15.9A, 10V | 4V @ 800µA | 68 nC @ 10 V | ±20V | 2850 pF @ 400 V | - | 180W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-VSON-4-1 |
|
RJ1L12BGNTLLNCH 60V 120A POWER MOSFET : RJ1L |
1,993 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 4.5V, 10V | 2.9mOhm @ 40A, 10V | 2.5V @ 500µA | 175 nC @ 10 V | ±20V | 9000 pF @ 30 V | - | 192W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263AB |
|
NTMTSC1D5N08MCMOSFET N-CH 80V 33A/287A 8DFNW |
2,954 |
|
Datasheet |
Dual Cool™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 33A (Ta), 287A (Tc) | 6V, 10V | 1.56mOhm @ 80A, 10V | 4V @ 650µA | 140 nC @ 10 V | ±20V | 10400 pF @ 40 V | - | 3.3W (Ta), 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount, Wettable Flank | 8-TDFNW (8.3x8.4) |
|
STW48NM60NMOSFET N-CH 600V 44A TO247 |
573 |
|
Datasheet |
MDmesh™ II | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 44A (Tc) | 10V | 70mOhm @ 20A, 10V | 4V @ 250µA | 124 nC @ 10 V | ±25V | 4285 pF @ 50 V | - | 330W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
UF3C120150K4SSICFET N-CH 1200V 18.4A TO247-4 |
434 |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 18.4A (Tc) | 12V | 180mOhm @ 5A, 12V | 5.5V @ 10mA | 25.7 nC @ 12 V | ±25V | 738 pF @ 100 V | - | 166.7W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
PJMD990N65EC_L2_00001650V SUPER JUNCTION MOSFET |
6,000 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 4.7A (Tc) | 10V | 990mOhm @ 2A, 10V | 4V @ 250µA | 9.7 nC @ 10 V | ±30V | 306 pF @ 400 V | - | 47.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|

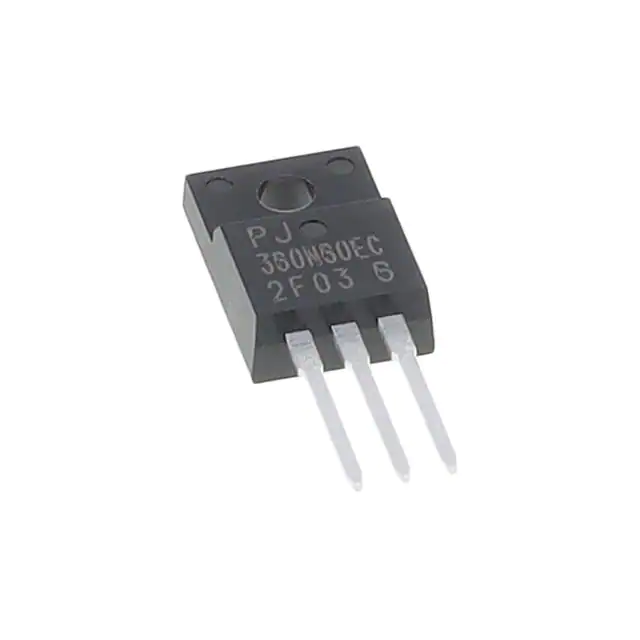

PJMF360N60EC_T0_00001600V SUPER JUNCTION MOSFET |
2,000 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 360mOhm @ 5.5A, 10V | 4V @ 250µA | 18.7 nC @ 10 V | ±30V | 735 pF @ 400 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB-F |
|

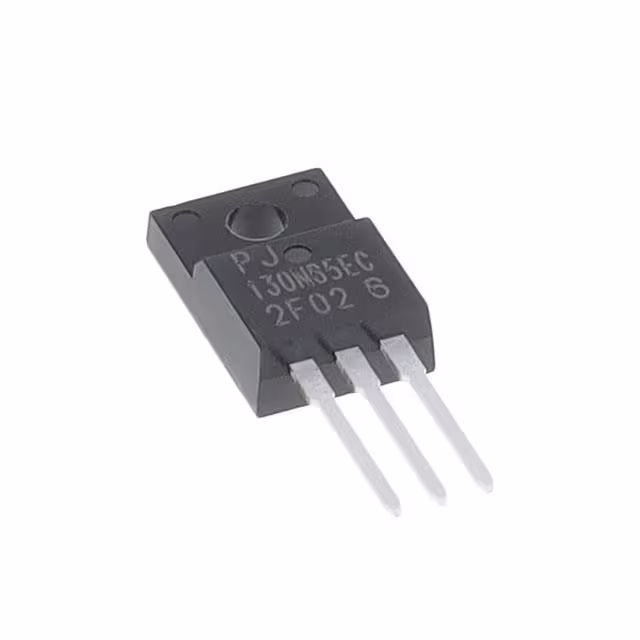

PJMP130N65EC_T0_00001650V SUPER JUNCTION MOSFET |
2,000 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 29A (Tc) | 10V | 130mOhm @ 10.8A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±30V | 1920 pF @ 400 V | - | 235W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB-L |
|
IXFH24N80PMOSFET N-CH 800V 24A TO247AD |
200 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 24A (Tc) | 10V | 400mOhm @ 12A, 10V | 5V @ 4mA | 105 nC @ 10 V | ±30V | 7200 pF @ 25 V | - | 650W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
R6535KNX3C16650V 35A, TO-220AB, HIGH-SPEED S |
1,000 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 35A (Tc) | 10V | 115mOhm @ 18.1A, 10V | 5V @ 1.3mA | 72 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 370W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
IXFP60N25X3MMOSFET N-CH 250V 60A TO220AB |
280 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 60A (Tc) | 10V | 23mOhm @ 30A, 10V | 4.5V @ 1.5mA | 50 nC @ 10 V | ±20V | 3610 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB (IXFP) |
|
|
PJMD390N65EC_L2_00001650V SUPER JUNCTION MOSFET |
5,940 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tc) | 10V | 390mOhm @ 5A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±30V | 726 pF @ 400 V | - | 87.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
PJMF120N60EC_T0_00001600V SUPER JUNCTION MOSFET |
1,997 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 120mOhm @ 12A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±30V | 1960 pF @ 400 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB-F |
|
PJMF130N65EC_T0_00001650V SUPER JUNCTION MOSFET |
1,976 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 29A (Tc) | 10V | 130mOhm @ 10.8A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±30V | 1920 pF @ 400 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB-F |
|
FCH099N65S3-F155MOSFET N-CH 650V 30A TO247-3 |
645 |
|
Datasheet |
SuperFET® III | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 99mOhm @ 15A, 10V | 4.5V @ 3mA | 61 nC @ 10 V | ±30V | 2480 pF @ 400 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
.jpg)
|
IXKH35N60C5MOSFET N-CH 600V 35A TO247AD |
359 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 35A (Tc) | 10V | 100mOhm @ 18A, 10V | 3.9V @ 1.2mA | 70 nC @ 10 V | ±20V | 2800 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
FDBL0150N60MOSFET N-CH 60V 240A 8HPSOF |
1,369 |
|
Datasheet |
PowerTrench® | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 240A (Tc) | 10V | 1.5mOhm @ 80A, 10V | 4V @ 250µA | 169 nC @ 10 V | ±20V | 10300 pF @ 30 V | - | 357W (Tj) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-HPSOF |
|
IRFPC60PBFMOSFET N-CH 600V 16A TO247-3 |
302 |
|
- |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 400mOhm @ 9.6A, 10V | 4V @ 250µA | 210 nC @ 10 V | ±20V | 3900 pF @ 25 V | - | 280W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
IPDD60R045CFD7XTMA1MOSFET N-CH 600V 61A HDSOP-10 |
1,680 |
|
Datasheet |
CoolMOS™ CFD7 | 10-PowerSOP Module | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 61A (Tc) | - | 45mOhm @ 18A, 10V | 4.5V @ 900µA | 79 nC @ 10 V | ±20V | 3194 pF @ 400 V | - | 379W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-HDSOP-10-1 |
|
IXTQ100N25PMOSFET N-CH 250V 100A TO3P |
169 |
|
Datasheet |
Polar | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 100A (Tc) | 10V | 24mOhm @ 50A, 10V | 5V @ 250µA | 185 nC @ 10 V | ±20V | 6300 pF @ 25 V | - | 600W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
