FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCP104N60FMOSFET N-CH 600V 37A TO220-3 |
1,569 |
|
Datasheet |
HiPerFET™, Polar™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 37A (Tc) | 10V | 104mOhm @ 18.5A, 10V | 5V @ 250µA | 145 nC @ 10 V | ±20V | 6130 pF @ 25 V | - | 357W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXTH120N20X4MOSFET |
264 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 120A (Tc) | 10V | 9.5mOhm @ 60A, 10V | 4.5V @ 250µA | 108 nC @ 10 V | ±20V | 6100 pF @ 25 V | - | 417W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
STFW40N60M2MOSFET N-CH 600V 34A ISOWATT |
275 |
|
Datasheet |
MDmesh™ II Plus | TO-3P-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 34A (Tc) | 10V | 88mOhm @ 17A, 10V | 4V @ 250µA | 57 nC @ 10 V | ±25V | 2500 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PF |
.jpg)
|
SIHB30N60ET1-GE3N-CHANNEL 600V |
1,112 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 125mOhm @ 15A, 10V | 4V @ 250µA | 130 nC @ 10 V | ±30V | 2600 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IPZA60R080P7XKSA1MOSFET N-CH 600V 37A TO247-4 |
243 |
|
Datasheet |
CoolMOS™ P7 | TO-247-4 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 37A (Tc) | 10V | 80mOhm @ 11.8A, 10V | 4V @ 590µA | 51 nC @ 10 V | ±20V | 2180 pF @ 400 V | - | 129W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-4 |
|
|
IXFP30N25X3MOSFET N-CHANNEL 250V 30A TO220 |
399 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 30A (Tc) | 10V | 60mOhm @ 15A, 10V | 4.5V @ 500µA | 21 nC @ 10 V | ±20V | 1450 pF @ 25 V | - | 176W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FCH165N65S3R0-F155MOSFET N-CH 650V 19A TO247-3 |
404 |
|
Datasheet |
SuperFET® III | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 19A (Tc) | 10V | 165mOhm @ 9.5A, 10V | 4.5V @ 1.9mA | 39 nC @ 10 V | ±30V | 1500 pF @ 400 V | - | 154W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
R6520ENZC17MOSFET N-CH 650V 20A TO3 |
300 |
|
Datasheet |
- | TO-3P-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 205mOhm @ 9.5A, 10V | 4V @ 630µA | 61 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 68W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|
FDBL0110N60MOSFET N-CH 60V 300A 8HPSOF |
1,900 |
|
Datasheet |
PowerTrench® | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300A (Tc) | 10V | 1.1mOhm @ 80A, 10V | 4V @ 250µA | 220 nC @ 10 V | ±20V | 13650 pF @ 30 V | - | 429W (Tj) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-HPSOF |
|
STF18NM80MOSFET N-CH 800V 17A TO220FP |
985 |
|
Datasheet |
MDmesh™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 17A (Tc) | 10V | 295mOhm @ 8.5A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±30V | 2070 pF @ 50 V | - | 40W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
IPT014N08NM5ATMA1MOSFET N-CH 80V 37A/331A HSOF-8 |
2,194 |
|
Datasheet |
OptiMOS™ 5 | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 37A (Ta), 331A (Tc) | 6V, 10V | 1.4mOhm @ 150A, 10V | 3.8V @ 280µA | 200 nC @ 10 V | ±20V | 14000 pF @ 40 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HSOF-8-1 |
|

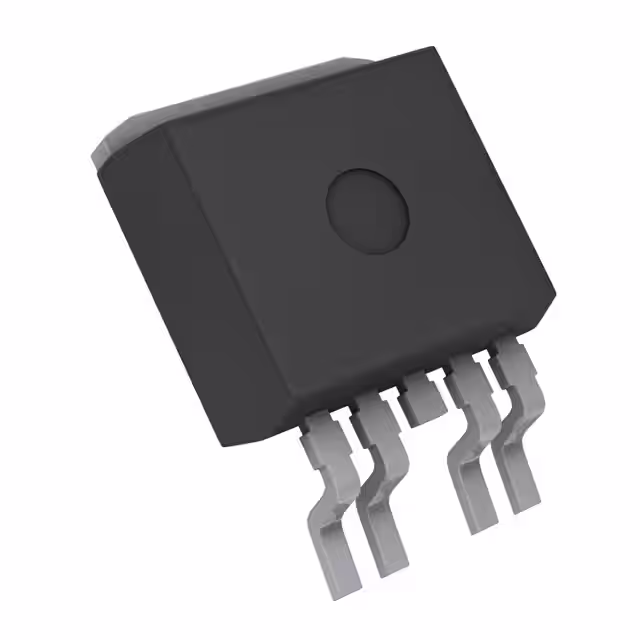

NP180N04TUK-E1-AYMOSFET N-CH 40V 180A TO263-7 |
1,590 |
|
Datasheet |
- | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 180A (Tc) | 10V | 1.05mOhm @ 90A, 10V | 4V @ 250µA | 297 nC @ 10 V | ±20V | 15750 pF @ 25 V | - | 1.8W (Ta), 348W (Tc) | 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
|
IXTP34N65X2MOSFET N-CH 650V 34A TO220AB |
158 |
|
Datasheet |
Ultra X2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 34A (Tc) | 10V | 96mOhm @ 17A, 10V | 5V @ 250µA | 54 nC @ 10 V | ±30V | 3000 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXFH46N65X2MOSFET N-CH 650V 46A TO247 |
300 |
|
Datasheet |
HiPerFET™, Ultra X2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 76mOhm @ 23A, 10V | 5.5V @ 4mA | 75 nC @ 10 V | ±30V | 4810 pF @ 25 V | - | 660W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
STB42N60M2-EPMOSFET N-CH 600V 34A D2PAK |
859 |
|
Datasheet |
MDmesh™ M2-EP | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 34A (Tc) | 10V | 87mOhm @ 17A, 10V | 4.75V @ 250µA | 55 nC @ 10 V | ±25V | 2370 pF @ 100 V | - | 250W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
STL36N55M5MOSFET N-CH 550V 22.5A 4PWRFLAT |
2,500 |
|
Datasheet |
MDmesh™ V | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 550 V | 22.5A (Tc) | 10V | 90mOhm @ 16.5A, 10V | 5V @ 250µA | 62 nC @ 10 V | ±25V | 2670 pF @ 100 V | - | 2.8W (Ta), 150W (Tc) | 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (8x8) HV |
|

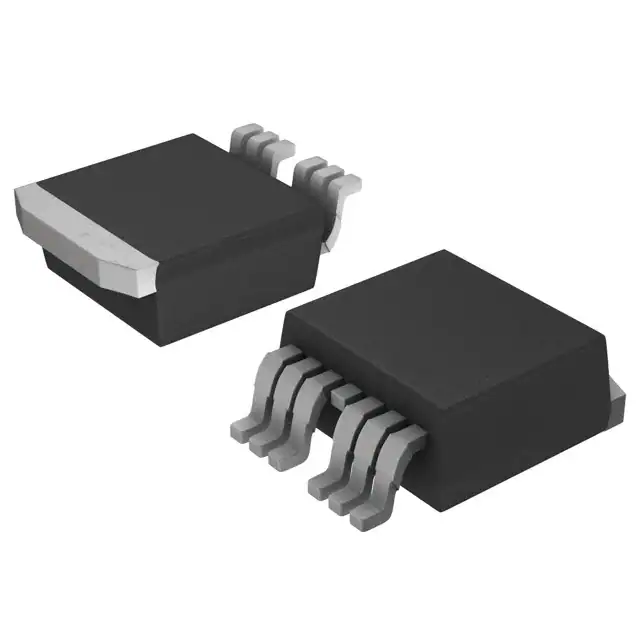

RBA250N10CHPF-4UA02#GB0MP-25LZU |
780 |
|
Datasheet |
- | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 250A (Ta) | 10V | 2.4mOhm @ 125A, 10V | 3.8V @ 250µA | 190 nC @ 10 V | ±20V | 9500 pF @ 50 V | - | 1.8W (Ta), 348W (Tc) | 175°C | - | - | Surface Mount | TO-263-7 |
|
|
2SK3812-ZP-E1-AZMP-25LZP |
1,357 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 110A (Tc) | 4.5V, 10V | 2.8mOhm @ 55A, 10V | 2.5V @ 1mA | 250 nC @ 10 V | ±20V | 16800 pF @ 10 V | - | 1.5W (Ta), 213W (Tc) | 150°C | - | - | Surface Mount | TO-263-3 |
|
RJ1L12CGNTLLNCH 60V 120A POWER MOSFET: RJ1L1 |
1,000 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 4.5V, 10V | 3.4mOhm @ 50A, 10V | 2.5V @ 200µA | 139 nC @ 10 V | ±20V | 7100 pF @ 30 V | - | 166W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263AB |
|

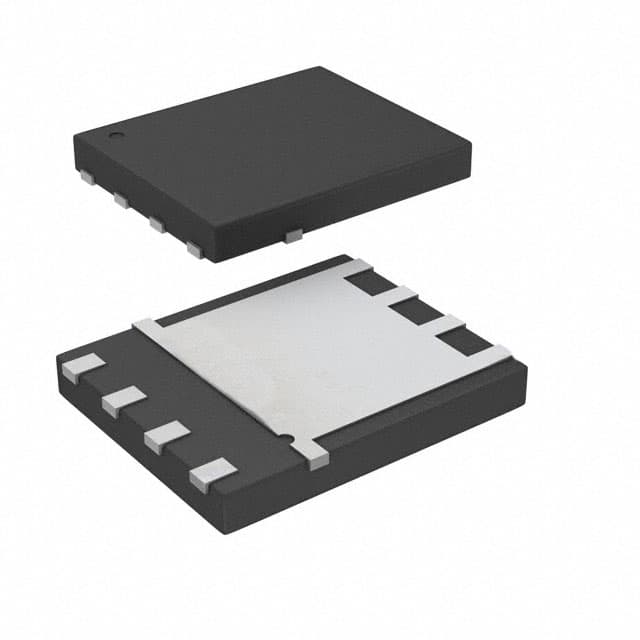

FDMS86202ET120MOSFET N-CH 120V 13.5/102A PWR56 |
3,920 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 13.5A (Ta), 102A (Tc) | 6V, 10V | 7.2mOhm @ 13.5A, 10V | 4V @ 250µA | 64 nC @ 10 V | ±20V | 4585 pF @ 60 V | - | 3.3W (Ta), 187W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
