FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIHH070N60EF-T1GE3MOSFET N-CH 600V 36A PPAK 8 X 8 |
3,000 |
|
Datasheet |
EF | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 36A (Tc) | 10V | 71mOhm @ 15A, 10V | 5V @ 250µA | 75 nC @ 10 V | ±30V | 2647 pF @ 100 V | - | 202W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 8 x 8 |
|
R6535ENZC17MOSFET N-CH 650V 35A TO3 |
300 |
|
Datasheet |
- | TO-3P-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 35A (Tc) | 10V | 115mOhm @ 18.1A, 10V | 4V @ 1.21mA | 110 nC @ 10 V | ±20V | 2600 pF @ 25 V | - | 102W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|
NVMFS5C404NLWFAFT1GMOSFET N-CH 40V 370A 5DFN |
1,481 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 370A (Tc) | 4.5V, 10V | 0.67mOhm @ 50A, 10V | 2V @ 250µA | 81 nC @ 4.5 V | ±20V | 12168 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
NTHL065N65S3HFMOSFET N-CH 650V 46A TO247-3 |
318 |
|
Datasheet |
SuperFET® III | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | - | 65mOhm @ 23A, 10V | 5V @ 1.3mA | 98 nC @ 10 V | ±30V | 4075 pF @ 400 V | - | 337W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
R6020KNZ4C13MOSFET N-CH 600V 20A TO247 |
410 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 196mOhm @ 9.5A, 10V | 5V @ 1mA | 40 nC @ 10 V | ±20V | 1550 pF @ 25 V | - | 231W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247 |
|
STW42N65M5MOSFET N-CH 650V 33A TO247-3 |
498 |
|
Datasheet |
MDmesh™ V | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 33A (Tc) | 10V | 79mOhm @ 16.5A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±25V | 4650 pF @ 100 V | - | 190W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IXFQ72N20X3MOSFET N-CH 200V 72A TO3P |
304 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 72A (Tc) | 10V | 20mOhm @ 36A, 10V | 4.5V @ 1.5mA | 55 nC @ 10 V | ±20V | 3780 pF @ 25 V | - | 320W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
UF4C120070K4S1200V/70MOHM, SIC, FAST CASCODE, |
240 |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 27.5A (Tc) | - | 91mOhm @ 20A, 12V | 6V @ 10mA | 37.8 nC @ 15 V | ±20V | 1370 pF @ 800 V | - | 217W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
IXFH46N65X3MOSFET 46A 650V X3 TO247 |
352 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 73mOhm @ 23A, 10V | 5.2V @ 2.5mA | 40 nC @ 10 V | ±20V | 2730 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXFH) |
|
|
NVMTS0D6N04CLTXGT6 40V LL PQFN8*8 EXPANSI |
2,863 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 78.9A (Ta), 554.5A (Tc) | 4.5V, 10V | 0.42mOhm @ 50A, 10V | 2V @ 250µA | 265 nC @ 10 V | ±20V | 16013 pF @ 20 V | - | 5W (Ta), 245W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | - | - |
|
IMW65R072M1HXKSA1MOSFET 650V NCH SIC TRENCH |
260 |
|
Datasheet |
CoolSIC™ M1 | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 26A (Tc) | 18V | 94mOhm @ 13.3A, 18V | 5.7V @ 4mA | 22 nC @ 18 V | +23V, -5V | 744 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-41 |
|
NVH4L160N120SC1SICFET N-CH 1200V 17.3A TO247 |
353 |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 17.3A (Tc) | 20V | 224mOhm @ 12A, 20V | 4.3V @ 2.5mA | 34 nC @ 20 V | +25V, -15V | 665 pF @ 800 V | - | 111W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-4L |
|
SCT4062KRC151200V, 62M, 4-PIN THD, TRENCH-ST |
4,925 |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 26A (Tc) | 18V | 81mOhm @ 12A, 18V | 4.8V @ 6.45mA | 64 nC @ 18 V | +21V, -4V | 1498 pF @ 800 V | - | 115W | 175°C (TJ) | - | - | Through Hole | TO-247-4L |
|
IXFH140N10PMOSFET N-CH 100V 140A TO247AD |
306 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 140A (Tc) | 10V | 11mOhm @ 70A, 10V | 5V @ 4mA | 155 nC @ 10 V | ±20V | 4700 pF @ 25 V | - | 600W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
FDBL9401-F085T6MOSFET N-CH 40V 58.4/240A 8HPSOF |
5,193 |
|
Datasheet |
- | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 58.4A (Ta), 240A (Tc) | - | 0.67mOhm @ 50A, 10V | 4V @ 290µA | 148 nC @ 10 V | +20V, -16V | 10000 pF @ 25 V | - | 4.3W (Ta), 180.7W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-HPSOF |
|
|
PJMH074N60FRC_T0_00601600V/ 74MOHM / 53A/ FAST RECOVER |
2,984 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 53A (Tc) | 10V | 74mOhm @ 26.5A, 10V | 4.5V @ 250µA | 84 nC @ 10 V | ±30V | 3871 pF @ 400 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|

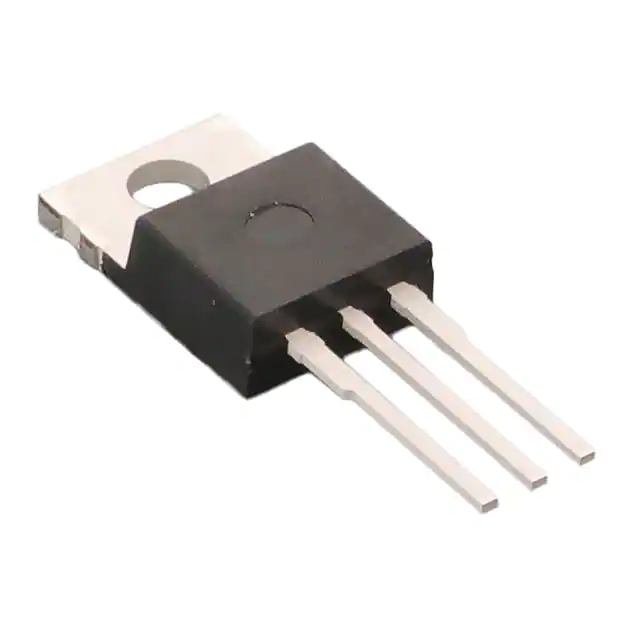

IPP65R050CFD7AAKSA1MOSFET N-CH 650V 45A TO220-3 |
500 |
|
Datasheet |
CoolMOS™ CFD7A | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 45A (Tc) | 10V | 50mOhm @ 24.8A, 10V | 4.5V @ 1.24mA | 102 nC @ 10 V | ±20V | 4975 pF @ 400 V | - | 227W (Tc) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO220-3 |
|
SIHK055N60E-T1-GE3E SERIES POWER MOSFET POWERPAK 1 |
1,967 |
|
Datasheet |
E | 8-PowerBSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 42A (Tc) | 10V | 56mOhm @ 16A, 10V | 5V @ 250µA | 81 nC @ 10 V | ±30V | 3504 pF @ 100 V | - | 236W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK®10 x 12 |
|
STP34NM60NDMOSFET N-CH 600V 29A TO220 |
784 |
|
Datasheet |
FDmesh™ II | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 110mOhm @ 14.5A, 10V | 5V @ 250µA | 80.4 nC @ 10 V | ±25V | 2785 pF @ 50 V | - | 190W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
.jpg)
|
IXTH80N65X2MOSFET N-CH 650V 80A TO247 |
301 |
|
Datasheet |
Ultra X2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 80A (Tc) | 10V | 40mOhm @ 40A, 10V | 4.5V @ 4mA | 144 nC @ 10 V | ±30V | 7753 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
