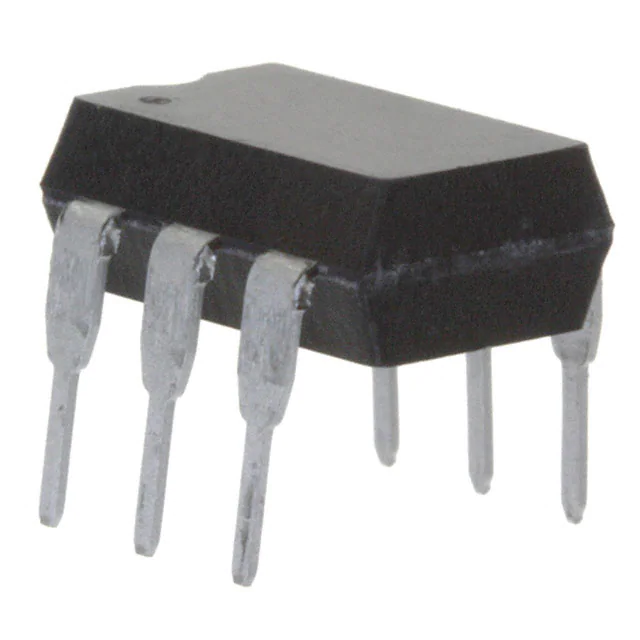

Texas Instruments TIL117

TIL117
Part No.:
TIL117
Manufacturer:
Texas Instruments
Category:
Transistor, Photovoltaic Output Optoisolators
Package:
6-DIP (0.300", 7.62mm)
Datasheet:
Leatech Electronics GmbHTIL117.pdf
Description:
TRANSISTOR OUTPUT OPTOCOUPLER
Quantity:

Unit Price:$0

Ext Price:$0

Payment:
Payment
Shipping:
Shipping

Inventory:34,641

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Part Number
Quantity
Price
Name
Company
Email
Comments

In Stock:34,641

Qty. Unit Price Ext. Price
RFQ now Add to cart

Product Details

  • Specifications
  • FAQ
  • Comparison
  • Related
Product attributes
Attribute value
Manufacturer:
Texas Instruments
Series:
-
Package/Case:
6-DIP (0.300", 7.62mm)
Packaging:
Tube
Product Status:
Obsolete
Number of Channels:
1
Voltage - Isolation:
5000Vrms
Current Transfer Ratio (Min):
50% @ 10mA
Current Transfer Ratio (Max):
-
Turn On / Turn Off Time (Typ):
10µs, 9µs
Rise / Fall Time (Typ):
6µs, 8µs
Input Type:
DC
Output Type:
Transistor with Base
Voltage - Output (Max):
80V
Current - Output / Channel:
-
Voltage - Forward (Vf) (Typ):
1.32V
Current - DC Forward (If) (Max):
60 mA
Vce Saturation (Max):
400mV
Grade:
-
Qualification:
-
Operating Temperature:
-55°C ~ 110°C
Mounting Type:
Through Hole
Supplier Device Package:
6-DIP
