Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A4K-M245STEPPER MOTOR 2PHASE 42MM 1.2A |
0 |
|
- |
AK-2 | Box | Active | - | Bipolar | - | 1.2 A | 200.0 | 1.8° | - | 49.3 / 348 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.906" (23.00mm) | 1.220" (31.00mm) | Connector | 0°C ~ 50°C | 2.8 Ohms | Flatted Shaft |
|
|
A63K-G5913STEPPER MOTOR 5PHASE 85MM 2.8A |
0 |
|
- |
AK | Box | Active | - | Unipolar | 24VDC | 2.8 A | 500.0 | 0.72° | - | 892.2 / 6300 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | - | 0.551" (14.00mm) | 1.457" (37.00mm) | 2.756" (70.00mm) | Wire Leads | -10°C ~ 50°C | 0.86 Ohms | Flatted Shaft |
|
|
SS2421-50XE100STPR MTR BIPOLAR 3.5V 1A/PHASE |
0 |
|
Datasheet |
SS | Bulk | Active | Hybrid | Bipolar | 3.5VDC | 1 A | 200.0 | 1.8° | ±0.09% | 11.75 / 83 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.276" (7.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 3.5 Ohms | - |
|

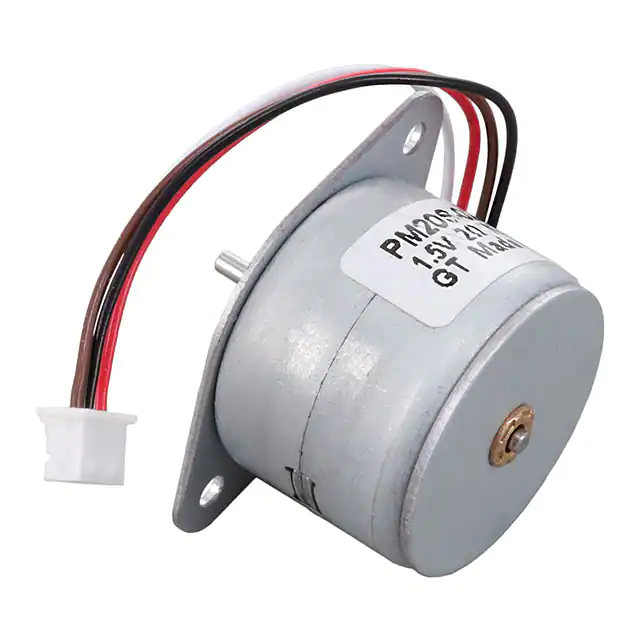

PM20S-020-124STEPPER MOTORS PERMANENT MAGNET |
0 |
|
- |
- | Bulk | Obsolete | Permanent Magnet | Bipolar | 1.5VDC | 750 mA | 200.0 | 18° | - | 1.104 / 7.8 | Round - 0.787" Dia (20.00mm) | 8 | 0.059" (1.50mm) | 0.256" (6.50mm) | 0.984" (25.00mm) | Wire Leads with Connector | 60°C | 2 Ohms | - |
|
|
PM42L-048-285DSTEPPER MOTORS PERMANENT MAGNET |
0 |
|
- |
- | Bulk | Obsolete | Permanent Magnet | Bipolar | 3VDC | 1 A | 48.0 | 7.5° | - | 5.56 / 39.23 | Round - 1.650" Dia (42.00mm) | 17 | 0.118" (3.00mm) | 0.433" (11.00mm) | 1.949" (49.50mm) | Wire Leads with Connector | 75°C | 3 Ohms | - |
|
|
PM35S-048-324FSTEPPER MOTORS PERMANENT MAGNET |
0 |
|
- |
- | Bulk | Obsolete | Permanent Magnet | Bipolar | 2VDC | 750 mA | 48.0 | 7.5° | - | 3.89 / 27.46 | Round - 1.378" Dia (35.00mm) | 14 | 0.118" (3.00mm) | 0.394" (10.00mm) | 1.654" (42.00mm) | Wire Leads with Connector | 75°C | 4 Ohms | - |
|
|
PM25S-048-314STEPPER MOTORS PERMANENT MAGNET |
0 |
|
- |
- | Bulk | Obsolete | Permanent Magnet | Bipolar | 2VDC | 1 A | 48.0 | 7.5° | - | 1.104 / 7.8 | Round - 0.984" Dia (25.00mm) | - | 0.079" (2.00mm) | 0.551" (14.00mm) | 1.260" (32.00mm) | Wire Leads with Connector | 65°C | 2 Ohms | - |
|
|
MOT-I-81511-139NEMA8 HS Stepper, Planetary Gear |
0 |
|
Datasheet |
MOT | Bulk | Active | Hybrid Gear Motor | Bipolar | 4.32VDC | 800 mA | 200.0 | 1.8° | ±5% | 438.99 / 3100 | Round - 0.866" Dia (22.00mm) | 8 | 0.236" (6.00mm) | 0.787" (20.00mm) | 0.709" (18.00mm) | Wire Leads | -20°C ~ 70°C | 5.4 Ohms|Ohms | Flatted Shaft |
|
|
EMMT-ST-42-L-RSTEPPER MOTOR |
0 |
|
- |
EMMT | Bulk | Active | Hybrid | Bipolar | 48VDC | 3.4 A | 200.0 | 1.8° | ±5% | 89.2 / 630 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -15°C ~ 40°C | 600 mOhms | Round Shaft |
|
|
EMMT-ST-57-M-RBSTEPPER MOTOR |
0 |
|
- |
EMMT | Bulk | Active | Hybrid | Bipolar | 48VDC | 5.4 A | 200.0 | 1.8° | ±5% | 158.6 / 1120 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads with Connector | -15°C ~ 40°C | 170 mOhms | Round Shaft |
|
|
EMMT-ST-57-L-RSTEPPER MOTOR |
0 |
|
- |
EMMT | Bulk | Active | Hybrid | Bipolar | 48VDC | 5.2 A | 200.0 | 1.8° | ±5% | 263.4 / 1860 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads with Connector | -15°C ~ 40°C | 260 mOhms | Round Shaft |
|
|
EMMT-ST-57-L-RSSTEPPER MOTOR |
0 |
|
- |
EMMT | Bulk | Active | Hybrid | Bipolar | 48VDC | 5.2 A | 200.0 | 1.8° | ±5% | 263.4 / 1860 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads with Connector | -15°C ~ 40°C | 260 mOhms | Round Shaft |
|
|
EMMT-ST-87-L-RSBSTEPPER MOTOR |
0 |
|
- |
EMMT | Bulk | Active | Hybrid | Bipolar | 48VDC | 8.4 A | 200.0 | 1.8° | ±5% | 1331.1 / 9400 | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | - | 0.433" (11.00mm) | 1.063" (27.00mm) | 2.736" (69.50mm) | Wire Leads with Connector | -15°C ~ 40°C | 0.3 Ohms | Round Shaft |
|
|
EMMT-ST-87-M-RSSTEPPER MOTOR |
0 |
|
- |
EMMT | Bulk | Active | Hybrid | Bipolar | 48VDC | 7.5 A | 200.0 | 1.8° | ±5% | 934.6 / 6600 | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | - | 0.433" (11.00mm) | 1.063" (27.00mm) | 2.736" (69.50mm) | Wire Leads with Connector | -15°C ~ 40°C | 270 mOhms | Round Shaft |
|
|
EMMT-ST-87-M-RBSTEPPER MOTOR |
0 |
|
- |
EMMT | Bulk | Active | Hybrid | Bipolar | 48VDC | 7.5 A | 200.0 | 1.8° | ±5% | 934.6 / 6600 | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | - | 0.433" (11.00mm) | 1.063" (27.00mm) | 2.736" (69.50mm) | Wire Leads with Connector | -15°C ~ 40°C | 270 mOhms | Round Shaft |
|
|
EMMT-ST-87-S-RBSTEPPER MOTOR |
0 |
|
- |
EMMT | Bulk | Active | Hybrid | Bipolar | 48VDC | 7.8 A | 200.0 | 1.8° | ±5% | 339.9 / 2400 | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | - | 0.433" (11.00mm) | 1.063" (27.00mm) | 2.736" (69.50mm) | Wire Leads with Connector | -15°C ~ 40°C | 130 mOhms | Round Shaft |
|
|
EMMT-ST-57-L-RSBSTEPPER MOTOR |
0 |
|
- |
EMMT | Bulk | Active | Hybrid | Bipolar | 48VDC | 5.2 A | 200.0 | 1.8° | ±5% | 263.4 / 1860 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads with Connector | -15°C ~ 40°C | 260 mOhms | Round Shaft |
|
|
EMMT-ST-87-L-RSTEPPER MOTOR |
0 |
|
- |
EMMT | Bulk | Active | Hybrid | Bipolar | 48VDC | 8.4 A | 200.0 | 1.8° | ±5% | 1331.1 / 9400 | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | - | 0.433" (11.00mm) | 1.063" (27.00mm) | 2.736" (69.50mm) | Wire Leads with Connector | -15°C ~ 40°C | 0.3 Ohms | Round Shaft |
|
|
EMMT-ST-57-M-RSTEPPER MOTOR |
0 |
|
- |
EMMT | Bulk | Active | Hybrid | Bipolar | 48VDC | 5.4 A | 200.0 | 1.8° | ±5% | 158.6 / 1120 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads with Connector | -15°C ~ 40°C | 170 mOhms | Round Shaft |
|
|
EMMT-ST-87-S-RSSTEPPER MOTOR |
0 |
|
- |
EMMT | Bulk | Active | Hybrid | Bipolar | 48VDC | 7.8 A | 200.0 | 1.8° | ±5% | 339.9 / 2400 | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | - | 0.433" (11.00mm) | 1.063" (27.00mm) | 2.736" (69.50mm) | Wire Leads with Connector | -15°C ~ 40°C | 130 mOhms | Round Shaft |
