Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
103H7823-5730STEP, F2, SQ.60, 1.8, NEMA, , BI |
0 |
|
Datasheet |
H | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 382.4 / 2700 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 2.4 Ohms | - |
|
103H7123-5710STEP, F2, SQ.56, 1.8, , , BIPOLA |
0 |
|
Datasheet |
H | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 141.6 / 1000 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.5 Ohms | - |
|
SH2285-5671STEP, F2, SQ.28, 1.8, , , BIPOLA |
0 |
|
Datasheet |
SH | Box | Active | Hybrid | Bipolar | 24VDC | 500 mA | 200.0 | 1.8° | - | 20.53 / 145 | - | - | 0.197" (5.00mm) | 0.591" (15.00mm) | 0.906" (23.00mm) | Wire Leads | -10°C ~ 50°C | 15 Ohms | - |
|
|
103H7821-5730STEP, F2, SQ.60, 1.8, NEMA, , BI |
0 |
|
Datasheet |
H | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 124.6 / 880 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.27 Ohms | - |
|
|
103H7128-5710STEP, F2, SQ.56, 1.8, , , BIPOLA |
0 |
|
Datasheet |
H | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 283.2 / 2000 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 2.3 Ohms | - |
|
SM2861-5052STEP, F2, SQ.86, 1.8, HALF INCH |
0 |
|
Datasheet |
- | Box | Active | Hybrid | Bipolar | 100VAC | 2 A | 200.0 | 1.8° | - | 467.3 / 3300 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | 34 | 0.500" (12.70mm) | 1.181" (30.00mm) | 2.740" (69.60mm) | Wire Leads | -10°C ~ 50°C | 2.2 Ohms | - |
|
|
103H7822-5760STEP, F2, SQ.60, 1.8, NEMA, , BI |
0 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 194 / 1370 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.55 Ohms | - |
|
|
103H7126-5710STEP, F2, SQ.56, 1.8, , , BIPOLA |
0 |
|
Datasheet |
H | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 226.6 / 1600 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 2 Ohms | - |
|
|
103H7823-5760STEP, F2, SQ.60, 1.8, NEMA, , BI |
0 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 382.4 / 2700 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 2.4 Ohms | - |
|
|
103H7123-5740STEP, F2, SQ.56, 1.8, , , BIPOLA |
0 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 141.6 / 1000 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.5 Ohms | - |
|
|
103H7821-5760STEP, F2, SQ.60, 1.8, NEMA, , BI |
0 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 124.6 / 880 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.27 Ohms | - |
|
|
103H7126-5740STEP, F2, SQ.56, 1.8, , , BIPOLA |
0 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 226.6 / 1600 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 2 Ohms | - |
|
|
103H7121-5740STEP, F2, SQ.56, 1.8, , , BIPOLA |
0 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 77.89 / 550 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.1 Ohms | - |
|
|
103H7121-5710STEP, F2, SQ.56, 1.8, , , BIPOLA |
0 |
|
Datasheet |
H | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 77.89 / 550 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.1 Ohms | - |
|
|
103H7128-5740STEP, F2, SQ.56, 1.8, , , BIPOLA |
0 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 283.2 / 2000 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 2.3 Ohms | - |
|
|

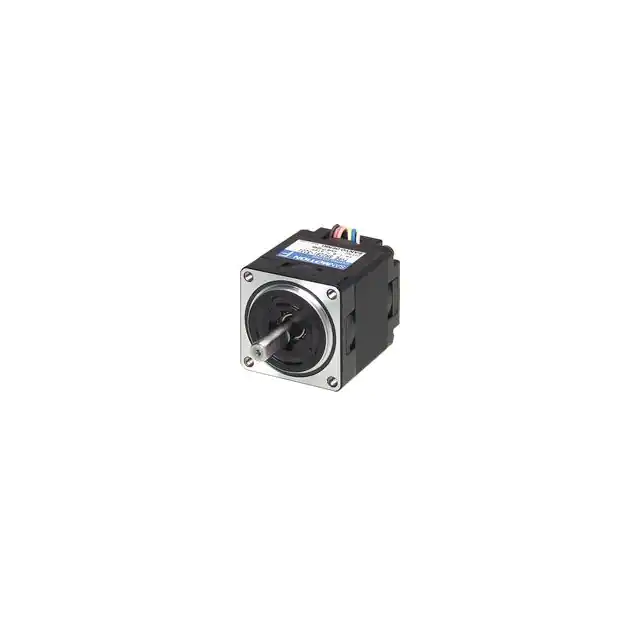

SH2281-5671STEP, F2, SQ.28, 1.8, , , BIPOLA |
0 |
|
Datasheet |
SH | Box | Active | Hybrid | Bipolar | 24VDC | 500 mA | 200.0 | 1.8° | - | 9.91 / 70 | - | - | 0.197" (5.00mm) | 0.591" (15.00mm) | 0.906" (23.00mm) | Wire Leads | -10°C ~ 50°C | 10.5 Ohms | - |
|

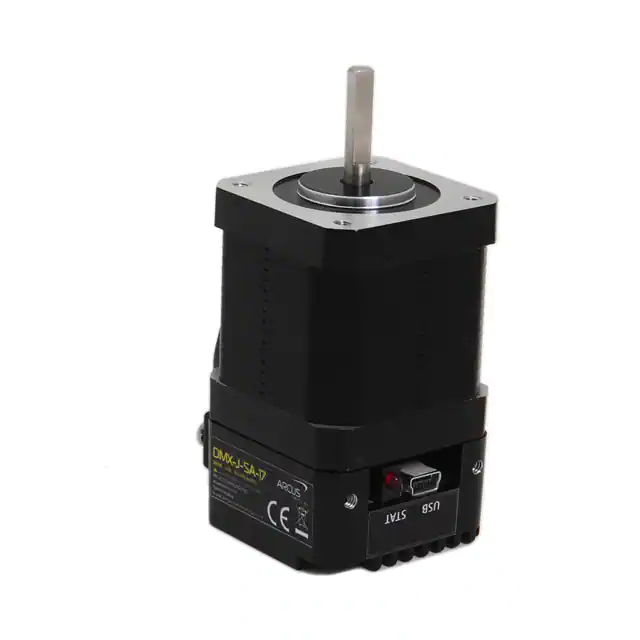

DMX-J-SA-17-3-DMNEMA 17 + DRIVER + CONTROLLER |
0 |
|
Datasheet |
- | Box | Obsolete | Hybrid | - | 12 ~ 24VDC | 2 A | 200.0 | 1.8° | - | - | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.940" (23.88mm) | 1.220" (31.00mm) | Connector | 0°C ~ 85°C | 1.4 Ohms | Flatted Shaft |
|
|
R525PSTEPPER DRIVE |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PF35T-48194Tin-can step motor 48 steps 2.6V |
0 |
|
Datasheet |
- | Box | Active | Permanent Magnet | - | 2.6VDC | - | 48.0 | 7.5° | - | - | 1.378" Dia (35.00mm) | - | 0.079" (2.00mm) | 0.512" (13.00mm) | 1.654" (42.00mm) | Wire Leads | -10°C ~ 50°C | - | Round Shaft |
|

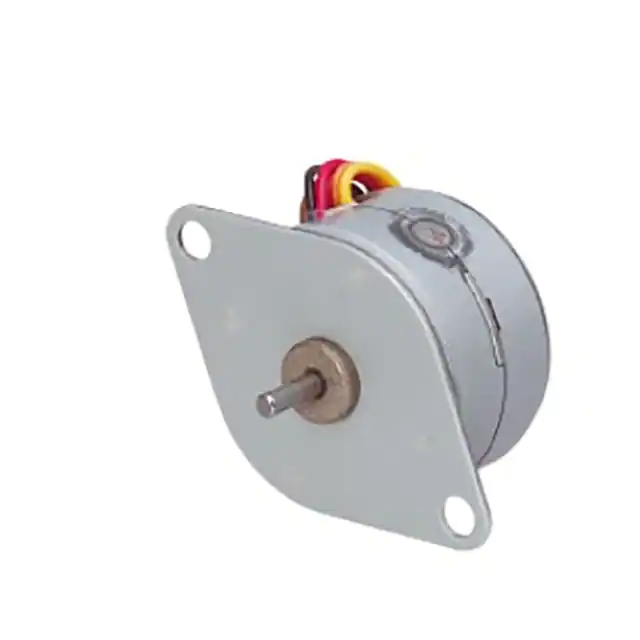

PF25-48Q4Tin-can step motor 48 steps 5V |
0 |
|
Datasheet |
- | Box | Active | Permanent Magnet | Bipolar | 5VDC | - | 48.0 | 7.5° | - | 1.699 / 12 | Round - 0.984" Dia (25.00mm) | - | 0.079" (2.00mm) | 0.323" (8.20mm) | 1.260" (32.00mm) | Wire Leads | -10°C ~ 50°C | 15 Ohms | Round Shaft |
