Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
82910002STEPPER MOTOR 4PH 15.5OHM PAL 9A |
0 |
|
- |
82910 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
82910003STEPPER MOTOR PM UNIPOLAR 12.7V |
0 |
|
- |
82910 | Bulk | Active | Permanent Magnet | Unipolar | 12.7VDC | 190 mA | 48.0 | 7.5° | ±5% | 2.83 / 20 | Round - 1.409" Dia (35.80mm) | - | 0.079" (2.00mm) | 0.354" (9.00mm) | 1.378" (35.00mm) | Wire Leads | - | 66 Ohms | Round Shaft |
|
|
82910022MOTOR 829100 - 7 5 48STEP/T - 2 |
0 |
|
- |
82910 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

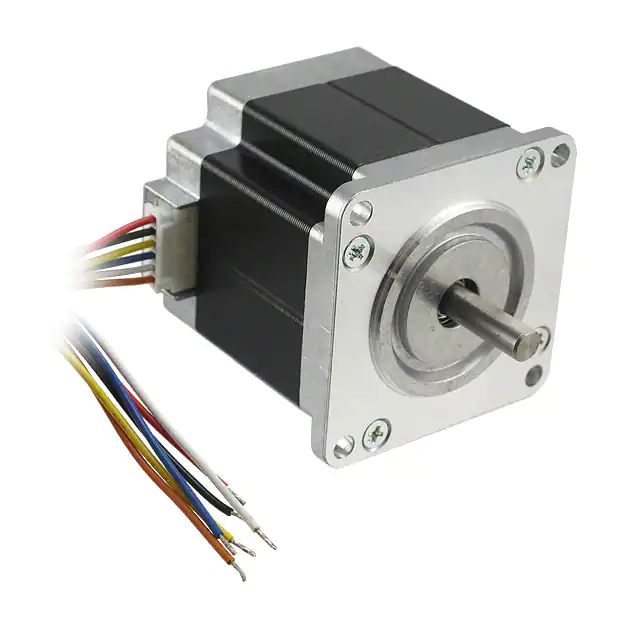

23KM-K049-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
0 |
|
Datasheet |
23KM | Bulk | Active | Hybrid | Unipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 1.7 Ohms | Flatted Shaft |
|

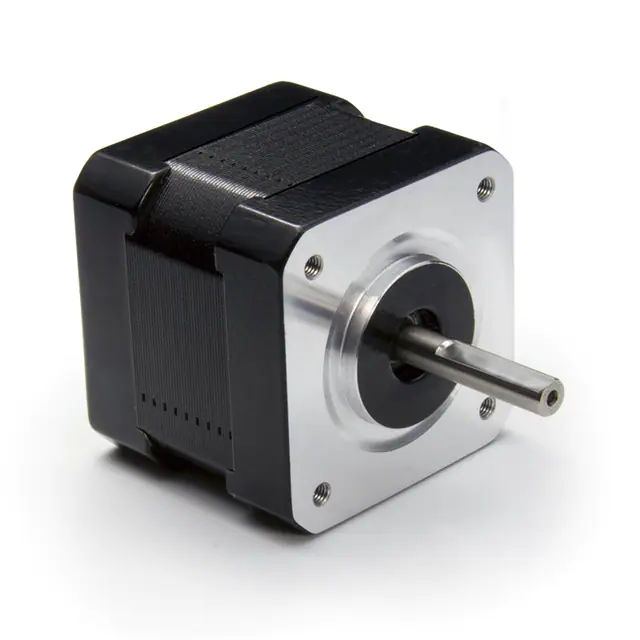

WO-4209L-01SSTEPPER MOTOR |
0 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 24VDC | 840 mA | 400.0 | 0.9° | - | 62 / 438 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 7.6 Ohms | Round Shaft |
|

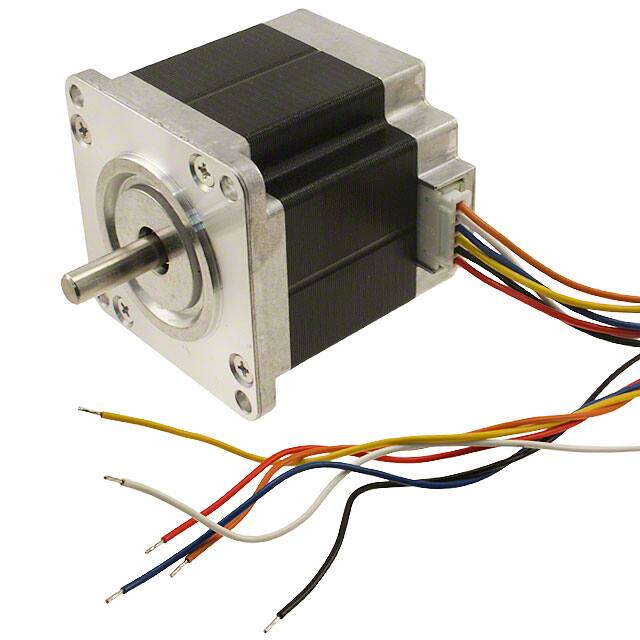

23KM-K044-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
0 |
|
Datasheet |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 3 A | 200.0 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 0.85 Ohms | Flatted Shaft |
|
|
82920012STEPPER MOTOR PM UNIPOLAR 12.9V |
0 |
|
Datasheet |
82920 | Bulk | Active | Permanent Magnet | Unipolar | 12.9VDC | - | 48.0 | 7.5° | - | 8.1 / 57 | Round - 2.020" Dia (51.30mm) | - | 0.079" (2.00mm) | 0.354" (9.00mm) | 2.630" (66.68mm) | Wire Leads | - | - | Round Shaft |
|
|
82920001MOTOR 829200 - 7 5 48STEP/T - 2 |
0 |
|
- |
82920 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SM3.4-F20-UCN0FMOTORS & SOLENOIDS |
0 |
|
Datasheet |
SM3.4-F20-UCN0F | Bulk | Active | Permanent Magnet | Bipolar | 3V | - | 20.0 | 18° | - | - | Round - 0.134" Dia (3.40mm) | - | 0.024" (0.60mm) | - | - | PC Pin | -10°C ~ 50°C | 25 Ohms | Round Shaft |
|
08PM-K049BSTDCNSTEPPER MOTOR HYBRID BIPOLAR 24V |
0 |
|
Datasheet |
08PM | Bulk | Active | Hybrid | Bipolar | 24VDC | 500 mA | 200.0 | 1.8° | - | 2.83 / 20 | Square - 0.787" x 0.787" (20.00mm x 20.00mm) | 8 | 0.157" (4.00mm) | 0.394" (10.00mm) | 0.630" (16.00mm) | Wire Leads with Connector | - | 8 Ohms | Flatted Shaft |
|
|

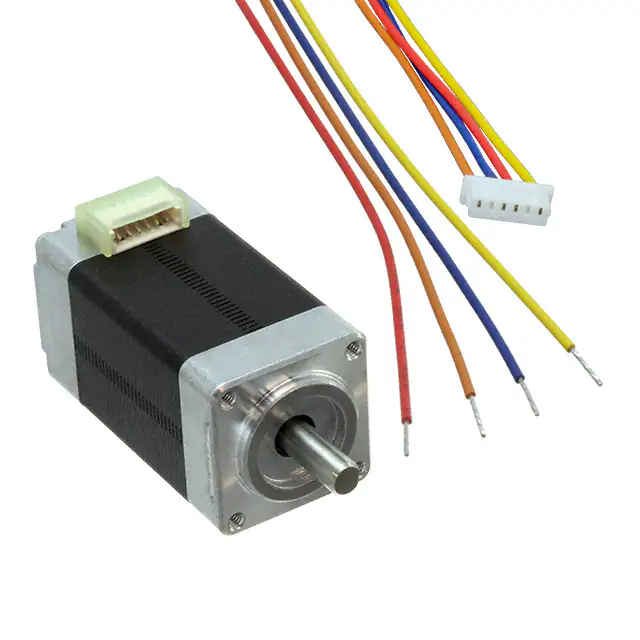

08PM-K139BSTDCNSTEPPER MOTOR HYBRID BIPOLAR 24V |
0 |
|
Datasheet |
08PM | Bulk | Active | Hybrid | Bipolar | 24VDC | 600 mA | 200.0 | 1.8° | - | 5.1 / 36 | Square - 0.787" x 0.787" (20.00mm x 20.00mm) | 8 | 0.157" (4.00mm) | 0.394" (10.00mm) | 0.630" (16.00mm) | Wire Leads with Connector | - | 6.5 Ohms | Flatted Shaft |
|
|
82930002STEPPER MOTOR PM BIPOLAR 10.4V |
0 |
|
Datasheet |
82930 | Bulk | Active | Permanent Magnet | Bipolar | 10.4VDC | 480 mA | 48.0 | 7.5° | - | 25.5 / 180 | Round - 2.280" Dia (57.80mm) | - | 0.157" (4.00mm) | 0.630" (16.00mm) | 2.630" (66.68mm) | Wire Leads | - | 22.3 Ohms | Round Shaft |
|
|
82930015STEPPER MOTOR PM UNIPOLAR 10.4V |
0 |
|
Datasheet |
82930 | Bulk | Active | Permanent Magnet | Unipolar | 10.4VDC | 480 mA | 48.0 | 7.5° | - | 21.9 / 155 | Round - 2.280" Dia (57.80mm) | - | 0.157" (4.00mm) | 0.630" (16.00mm) | 2.630" (66.68mm) | Wire Leads | - | 22.3 Ohms | Round Shaft |
|
|
82930005MOTOR 829300 - 7 5 48STEP/T - 2 |
0 |
|
- |
82930 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8106242BYG THROUGH-TYPE LEAD SCREW ST |
0 |
|
Datasheet |
42BYG | Bulk | Not For New Designs | - | Bipolar | - | 1.5 A | 200.0 | 1.8° | - | - | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | - | - | - | 1.220" (31.00mm) | Connector | - | - | Threaded Shaft |
|

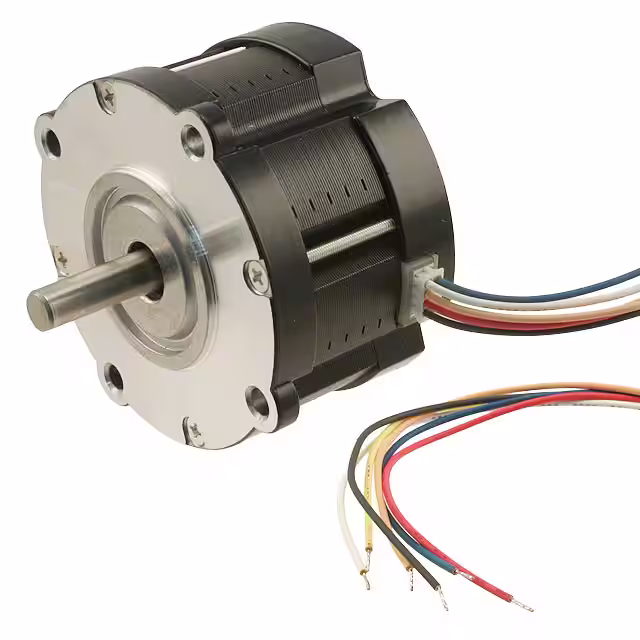

29SM-K250-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
0 |
|
Datasheet |
29SM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.6 A | 200.0 | 1.8° | ±5% | 82.15 / 580 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 2 Ohms | Round Shaft |
|

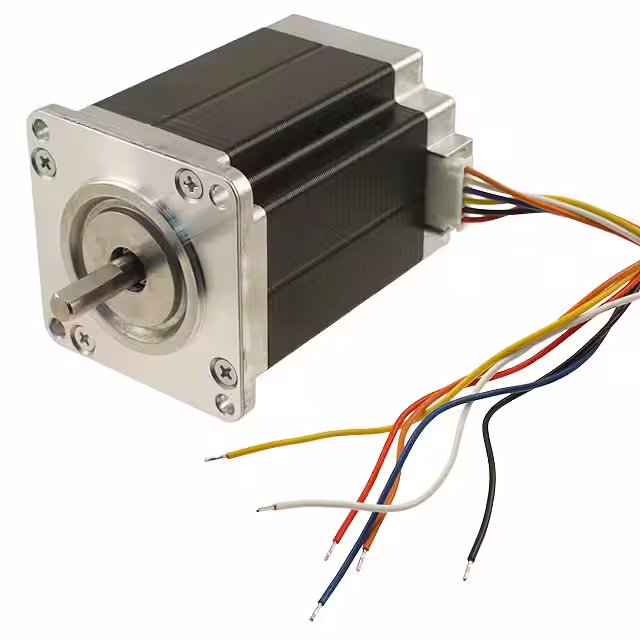

23KM-K748-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
0 |
|
Datasheet |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 2.3 Ohms | Flatted Shaft |
|

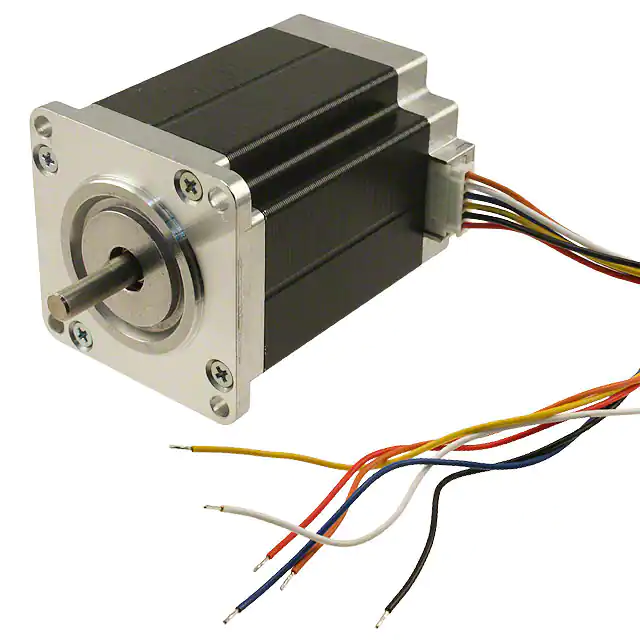

23KM-K743-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
0 |
|
Datasheet |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 3 A | 200.0 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 1.1 Ohms | Flatted Shaft |
|
|
82940002STEP MOTOR 12.7V 48STEP BIPOLAR |
0 |
|
- |
82940 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
82940014MOTOR 829300 - 7 5 48STEP/T - 2 |
0 |
|
- |
82940 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
